Price: $3,700 See Monthly Payments

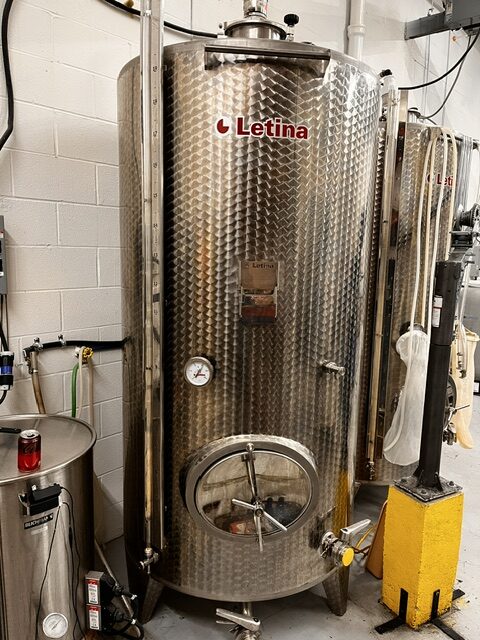

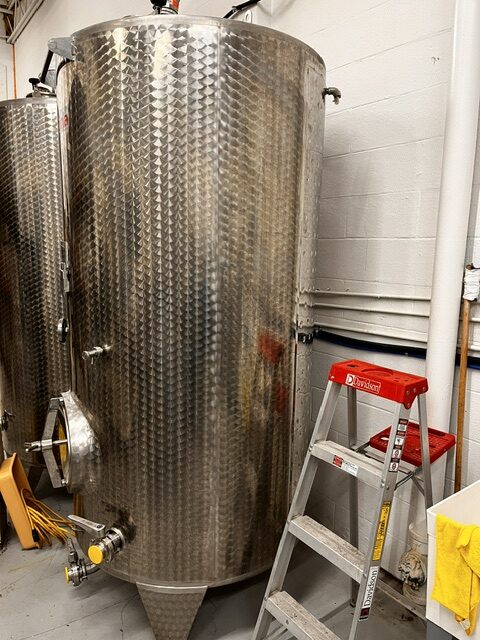

The Letina Z2000HV11 is a professional-grade, 528-gallon (2,000-liter) stainless steel closed-top tank manufactured by Letina. It belongs to Letina’s Z Series and is widely used in wineries, breweries, and distilleries for fermentation, storage, blending, and aging. [1, 2, 3, 4]
Key Specifications & Dimensions
Volume Capacity: 2,000 Liters (528 Gallons) [1, 2]
Dimensions: 2,635 mm (approx. 8.6 ft) tall with a 1,116 mm (approx. 3.6 ft) diameter. [1]

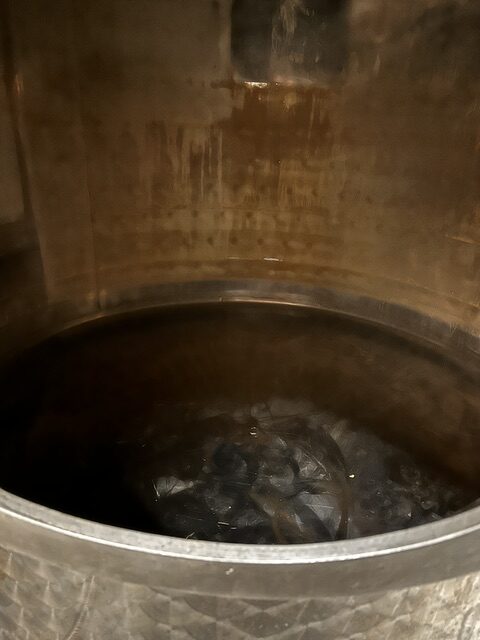

Material: High-grade AISI 304 stainless steel with an ultra-polished interior finish to protect against sediment buildup and scaling. [1, 2]
Temperature Control: Equipped with a built-in vertical dimpled cooling jacket optimized for glycol temperature regulation systems. Its vertical orientation allows efficient chilling even if the tank is only partially filled. [1, 2, 3]
Configuration & Standard Features
Valves & Discharge: Dual DN32 butterfly valves for independent partial and total product drainage. [1, 2]
Access Doors: Features a 440×340 mm oval manway door on the side and a DN200 round manhole cover on the top. [1]
Monitoring Tools: Includes a built-in analog thermometer and an integrated scaled level indicator tube. [1]

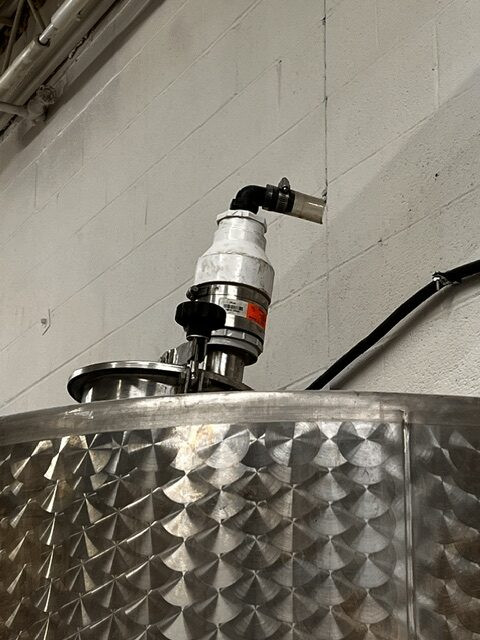

Additional Fittings: Comes standard with a dedicated sample tap, an plastic DN50 relief valve, and a built-in ladder rack
2 units available in Willoughby, Ohio 44094 $ 3700.00 each
We bought them for a project that never materialized.
