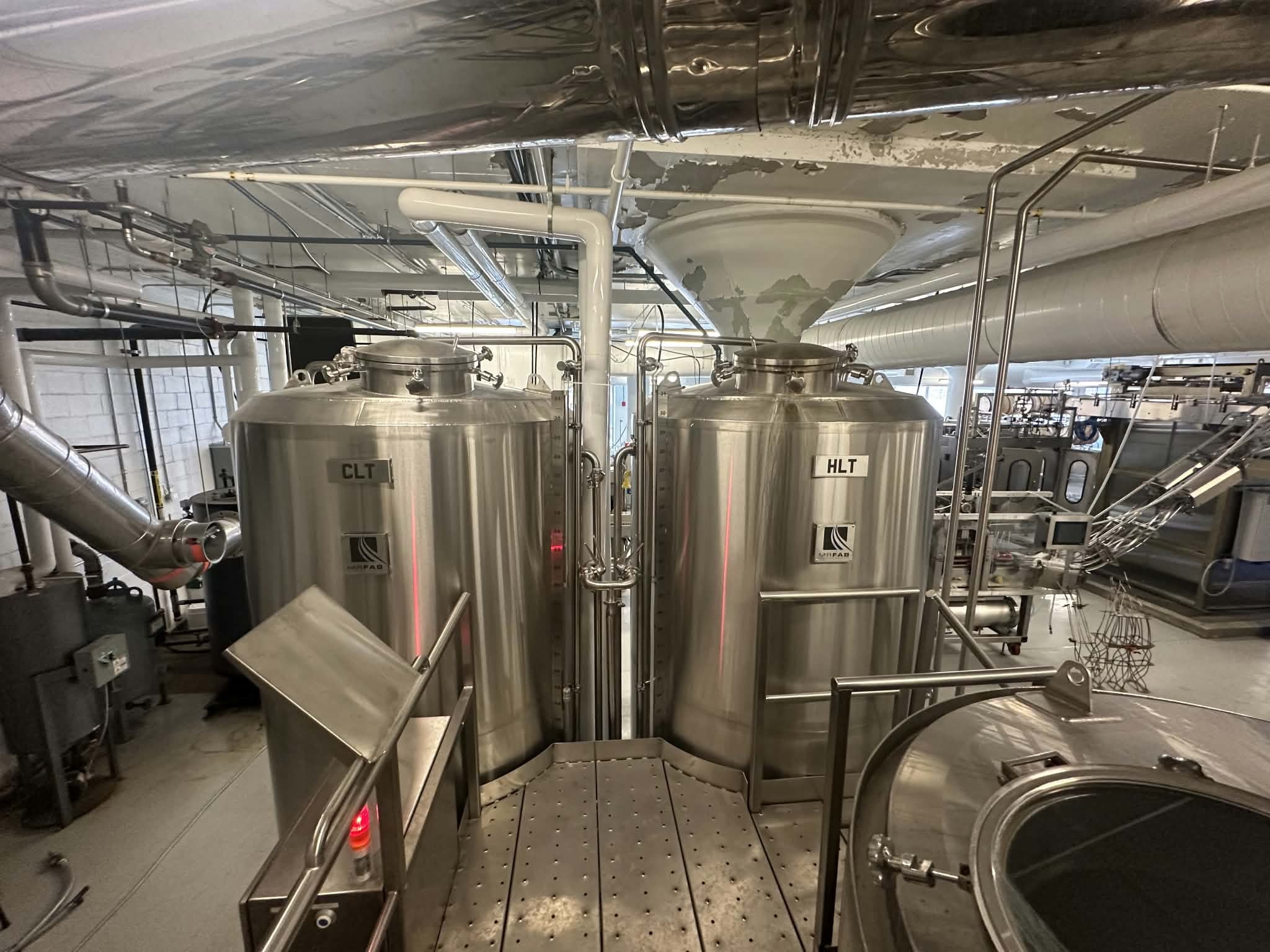

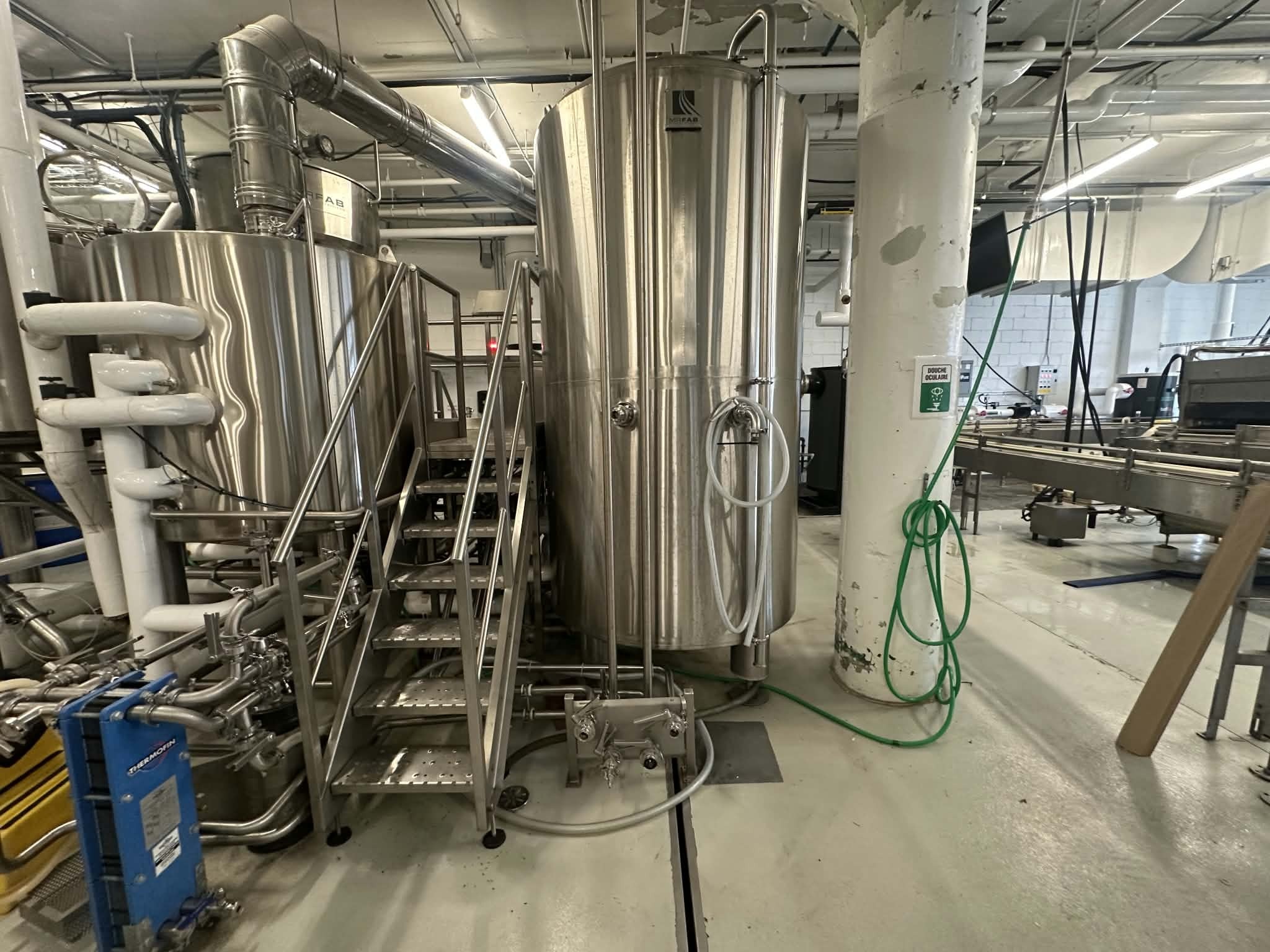

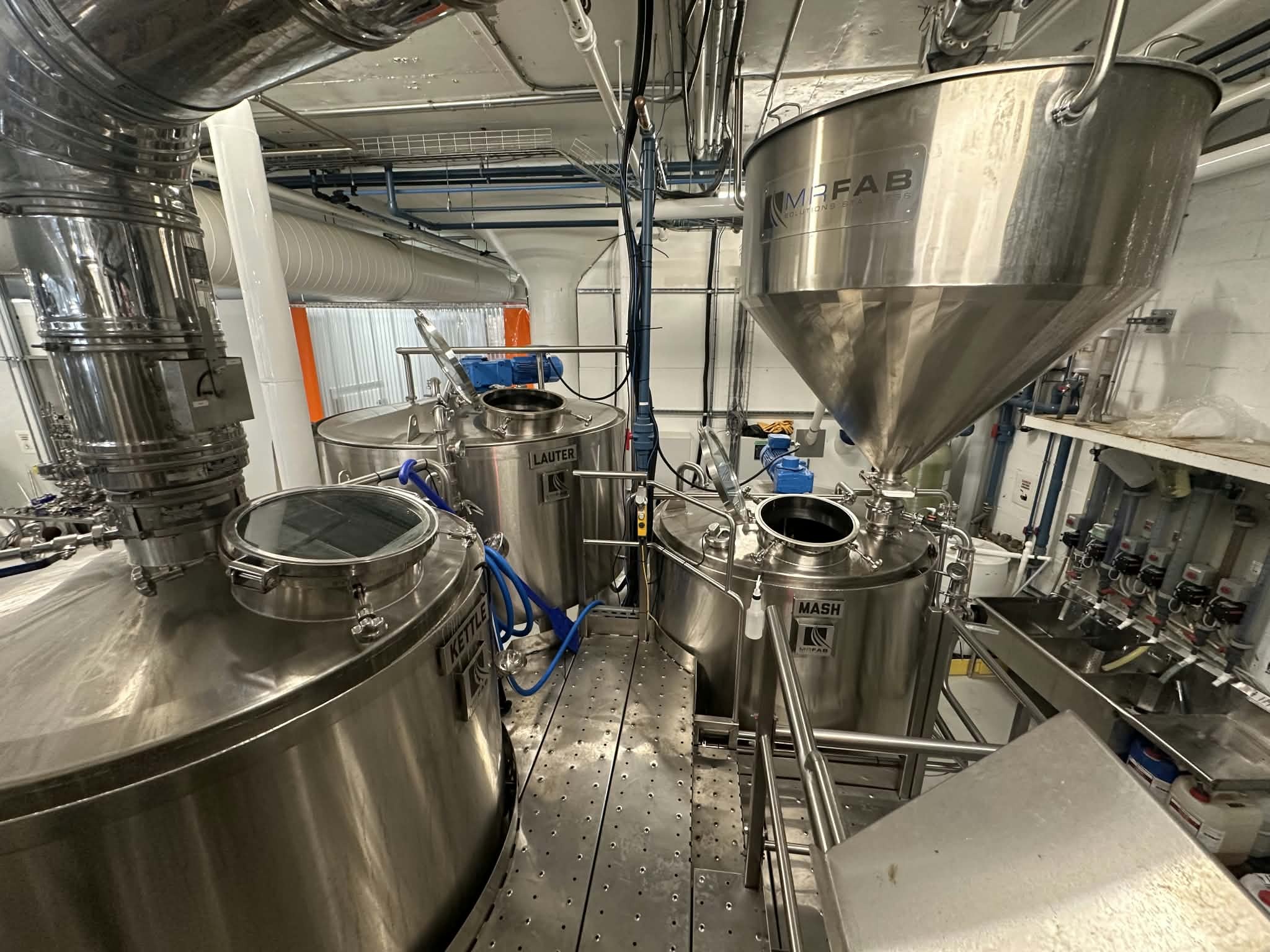

1. Mash Mixer DESCRIPTION: – Grain hydrator with manual hot/cold mixing valve – 360° spray ball – Conical bottom with 4″ – 16″ top manway – Motorized mixing system with variable speed control – 2 HP washdown pump with variable speed drive – 2 analog temperature probes – 350 kg grist case mounted above the mash mixer – Totalizing flow meter – Steam jacket – ​​Adjustable legs   2. Lauter Tun DESCRIPTION: – Multi-section wedge-wire false bottom – Multiple under-screen drainage points – Wort recirculation (vorlauf) sight glass – Vorlauf plate – Grant – Multi-nozzle sparge system – 16″ top manway – Bottom and side spent grain discharge doors – Motorized mixer/discharger system with variable speed control – 2 analog temperature probes – Adjustable legs   3. Kettle/Whirlpool DESCRIPTION: – DMS vent stack – 360° spray ball – 3-zone steam jacket – 3 outlets: Bottom (4″), mid-cone, and cone tip – 16″ top manway – Conical bottom – 2 HP washdown pump with variable speed drive – Temperature probe – Adjustable legs   4. 45 BBL HLT DESCRIPTION: – Ø16″ top manway – Adjustable legs – Pressure/vacuum relief valve – Spray ball – Steam jacket – ​​2″ insulation (sides and bottom) – Temperature probe 5. 45 BBL CTL DESCRIPTION: – 16″ diameter top manway – Adjustable legs – Pressure/vacuum relief valve – Spray ball – Glycol jacket – ​​2″ insulation (sides and bottom) – Temperature probe   6. Work platform DESCRIPTION: – Sturdy stainless steel construction – Stainless steel grating – Handrails on stairs and platform – Optimal working height for tanks – Adjustable legs   7. Control Panel DESCRIPTION: – NEMA 4X watertight enclosure – 120-220V – Pump speed control via rheostat – Agitator speed control via rheostat – Kettle temperature control   8. Diverter panel and piping DESCRIPTION: – Rigid piping interconnection on the equipment – Robust stainless steel construction – Ease of use – Ergonomic workstation – Oversized, 2-stage plate heat exchanger ALL  REFURBISHED READY TO SHIP
