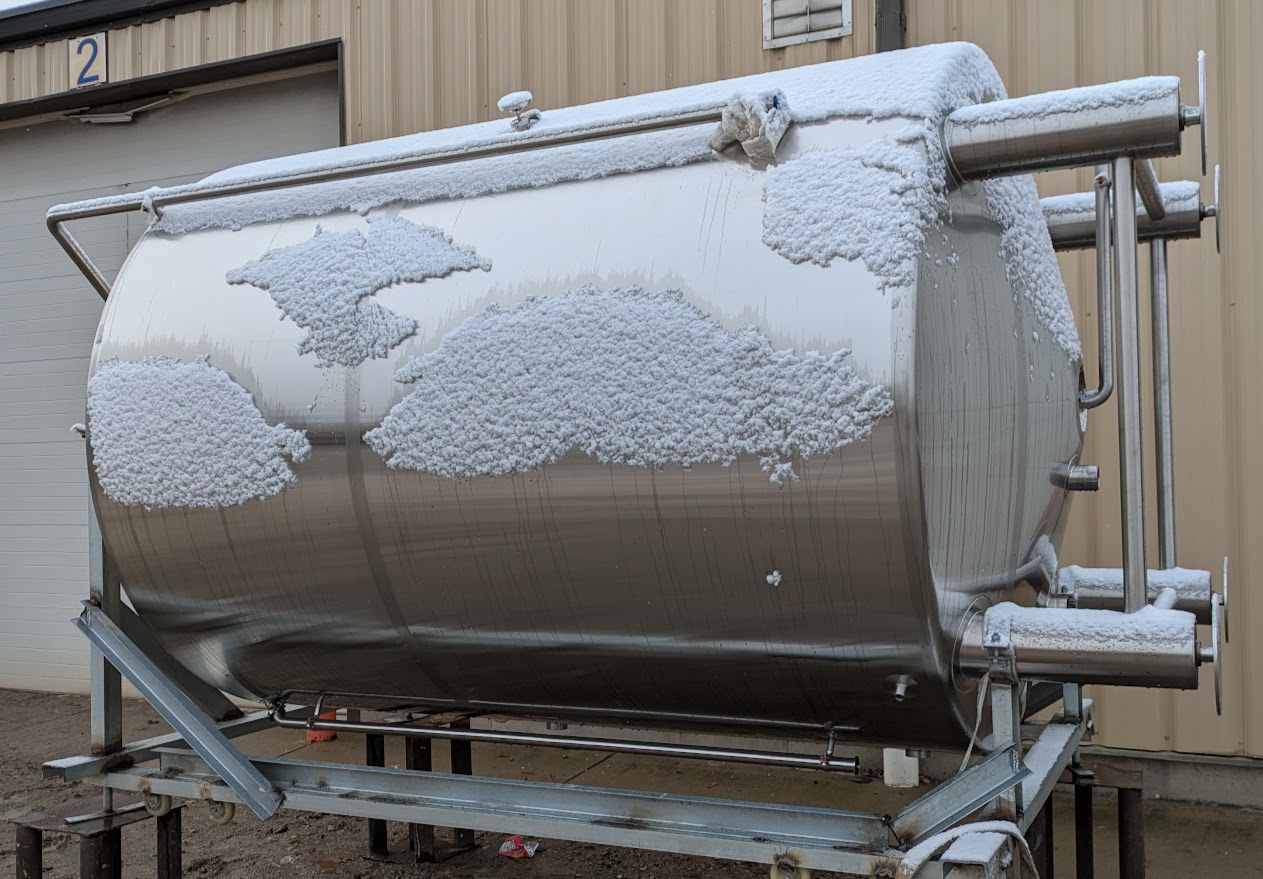

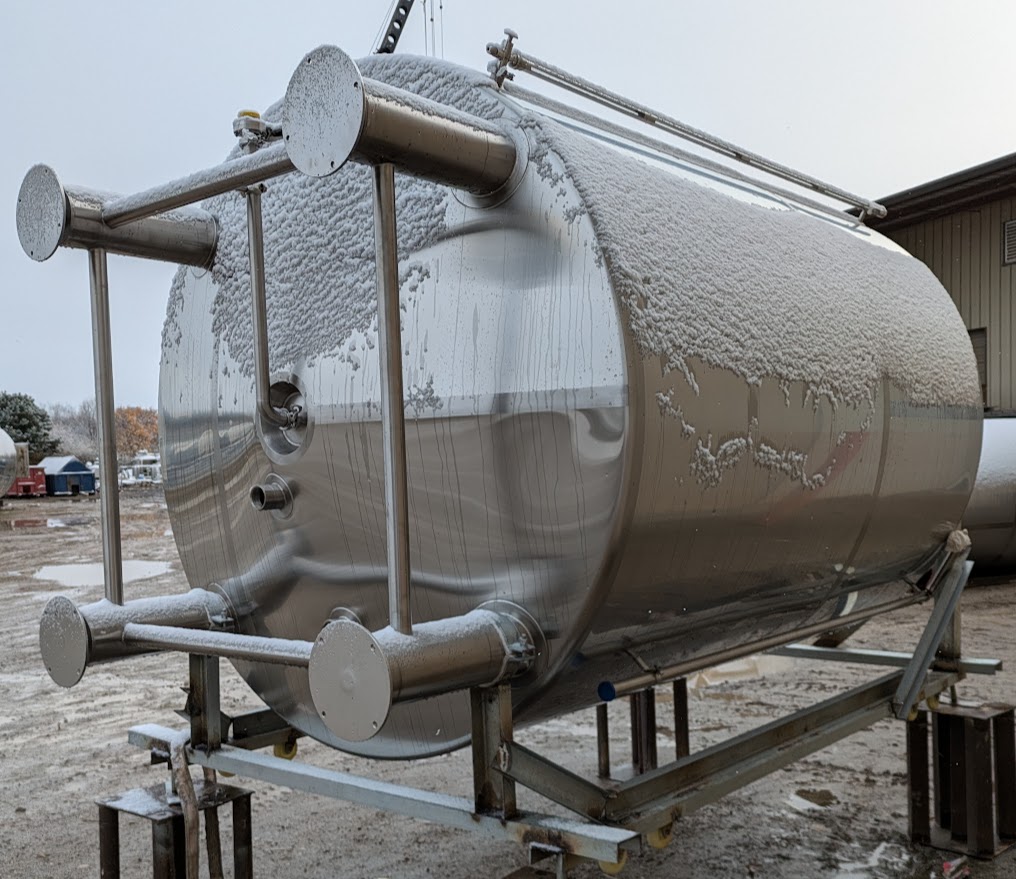

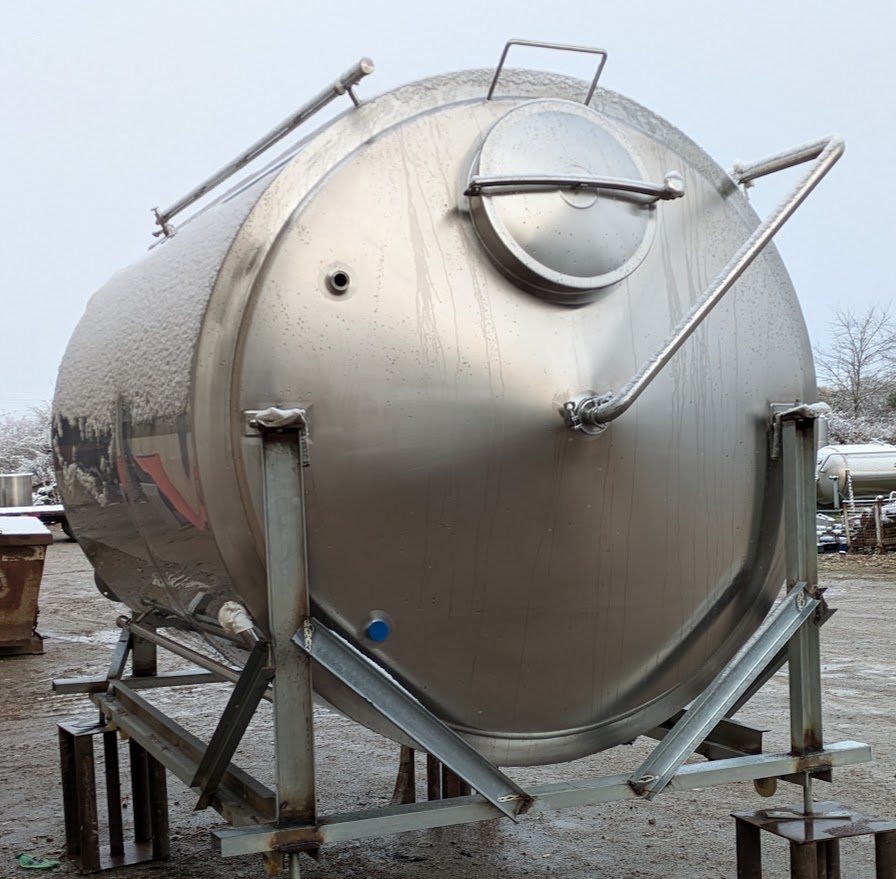

BCast Stainless Hot Liquor Tank – 50 BBL
1550 Gallon Working Volume
1767 Gallon Total Volume
Conical top with 20″ hinged, gasketed manway
Shallow cone bottom
316L S.S. product contact surface, 304 exterior and support structure
#4 interior finish, 2B exterior, with welds striped and polished
(2) side and (1) cone heat transfer jackets
Non-code stamped heat transfer jackets for use up to 14.9 PSI – tested at 70 PSI;
Atmospheric Internal Pressure Operation
Polyurethane Insulation
Ladder hook
CIP Sprayball
Liquid level sight tube
Thermowell
1.5″ Bottom Outlet w/Butterfly Valve
Four Adjustable SS Pipe Legs w/Pad Feet
1960mm O.D. x approx. 132″ OAH
