Complete 35 CPM 2-Person Canning and Packaging Line – ABE / SKA / DAMARK / BEVCO / HITACHI

Description Compact production line designed to run with just two operators from depalletizing through finished, shrink-wrapped cases. The complete system occupies approximately an 18′ × 20′ footprint and is currently installed and in production.

Built around an immaculate ABE CraftCan 35 (2022) with only 354,739 cans run, the line combines depalletizing, can rinsing, filling/seaming, date coding, accumulation and shrink bundling into a highly efficient small-footprint packaging operation. The current layout allows one operator to manage the canning side while a second operator handles bundling and palletizing.

An expandable return conveyor brings finished shrink-wrapped cases back to the bundling operator, allowing the entire packaging process to be run efficiently by two people. Operating video available below.

Equipment can also be demonstrated to serious buyers prior to removal.

Equipment Included

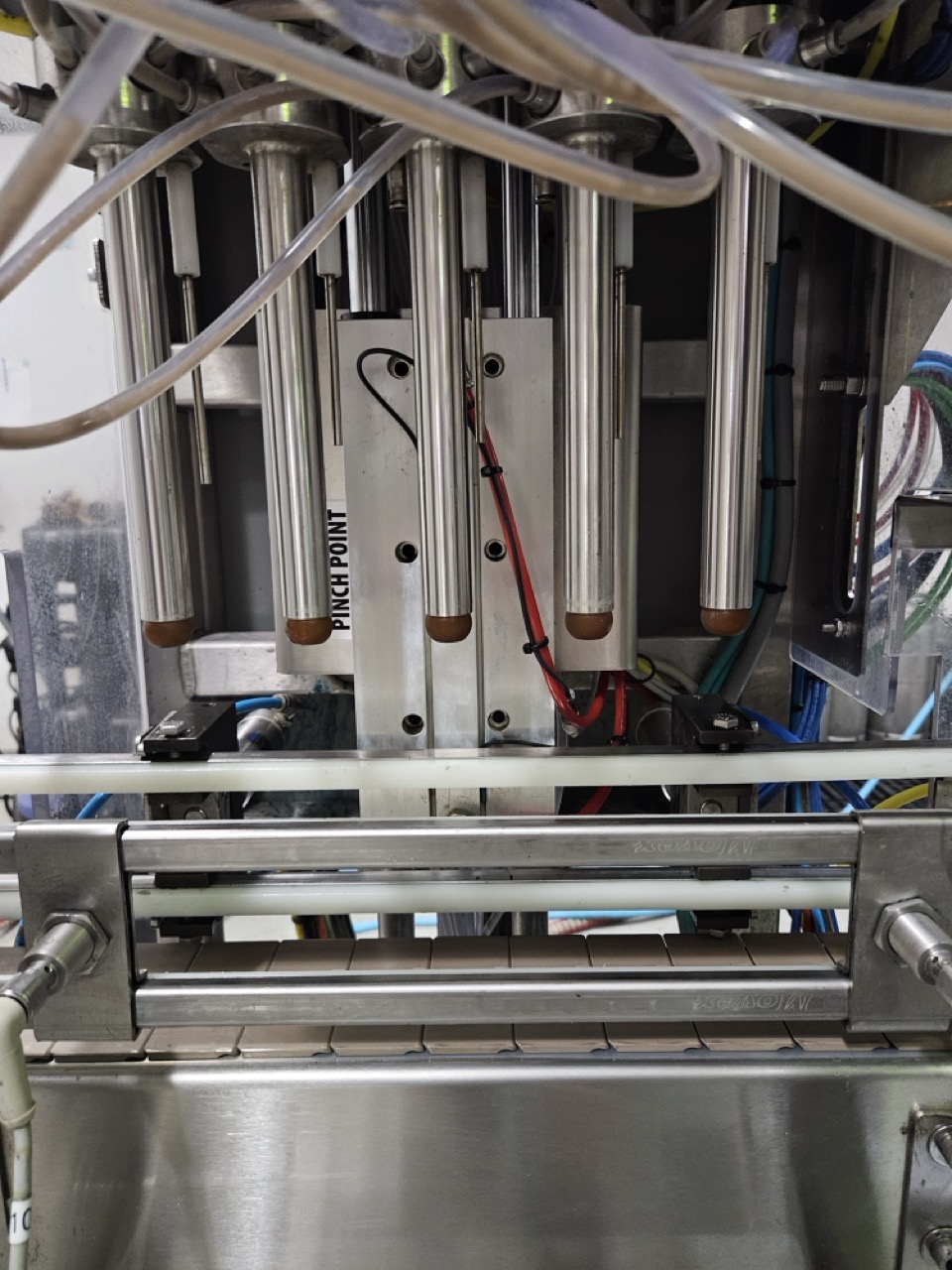

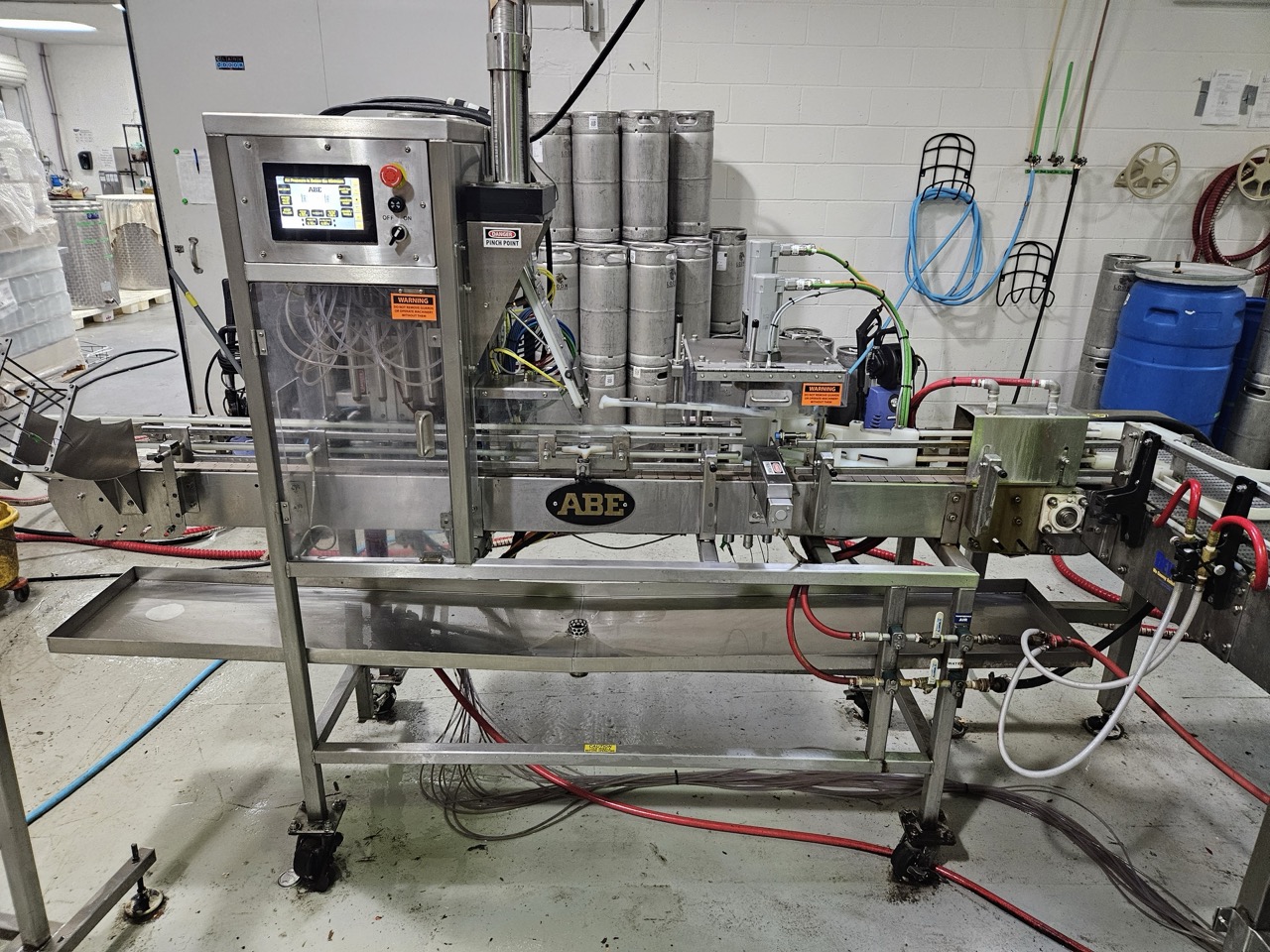

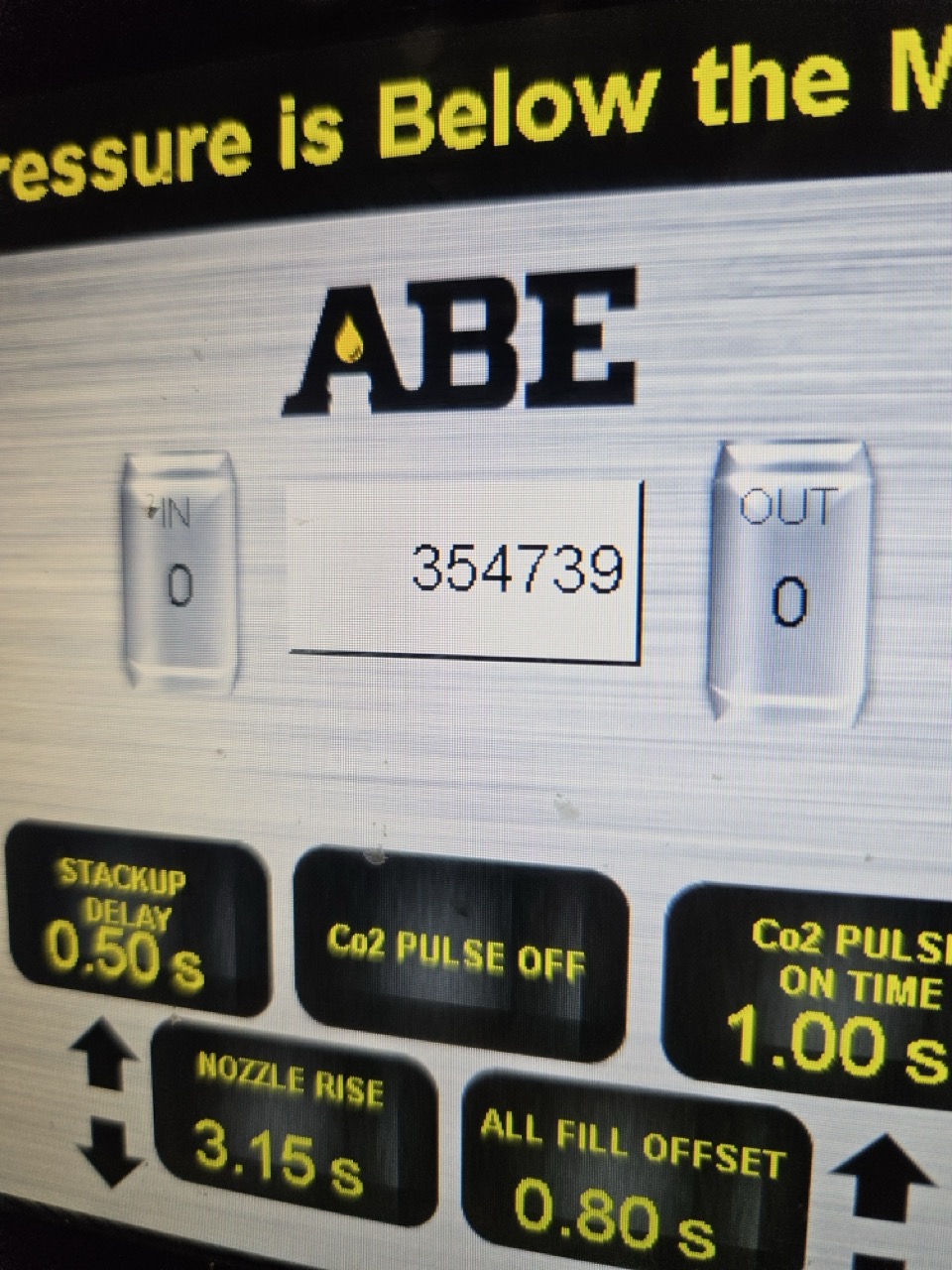

1. 2022 ABE CraftCan 35 Automatic Canning Line Only 354,739 cans run 5-head automatic filler/seamer Rated up to 35 cans per minute 3 product ports ABE ServoSeamer with automatic can rejection Precision fill sensors CO₂ pulse system PLC touchscreen controls Integrated post-rinse and dryer Currently configured for 12 oz sleek cans Excellent condition and currently in production

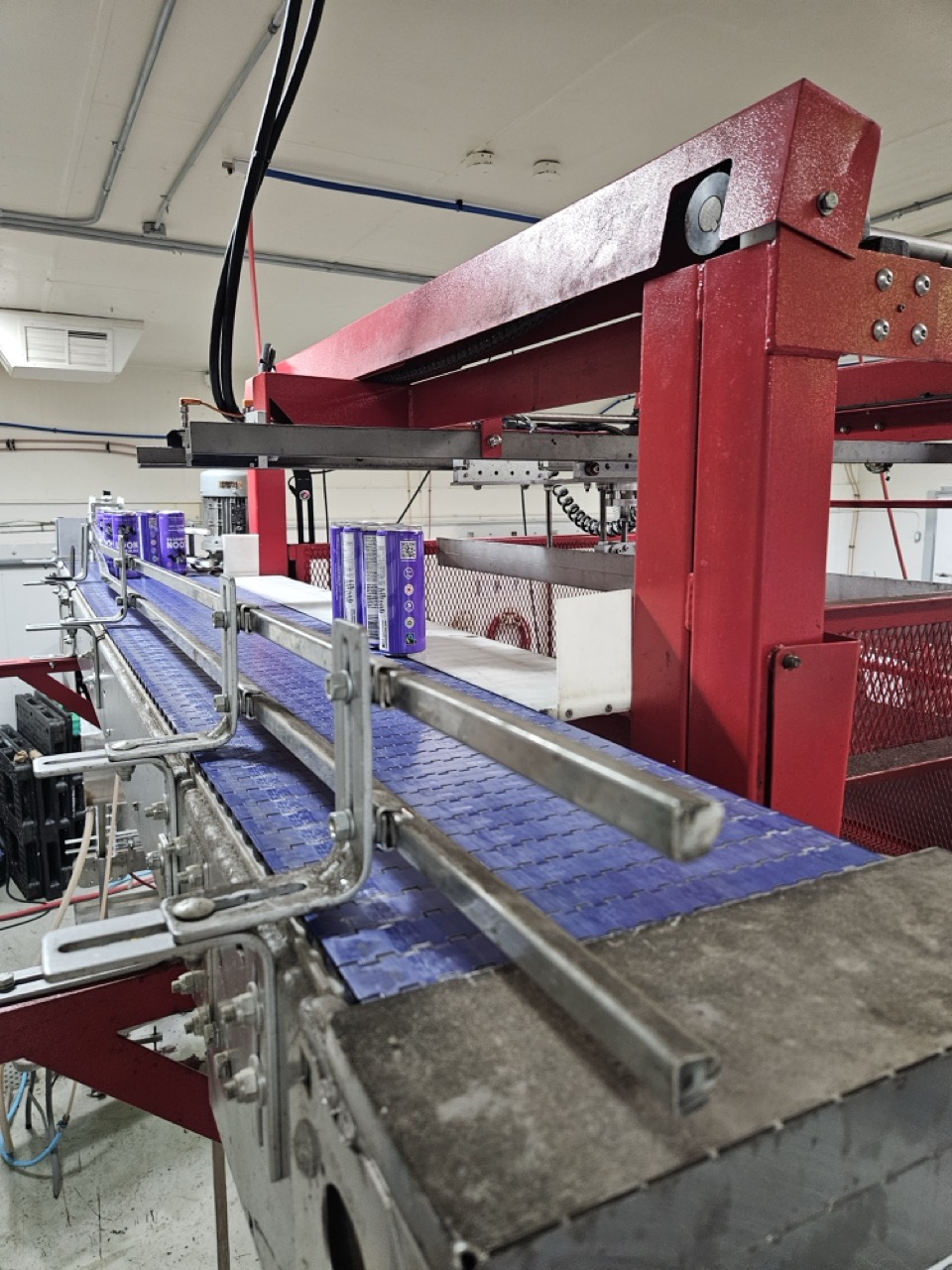

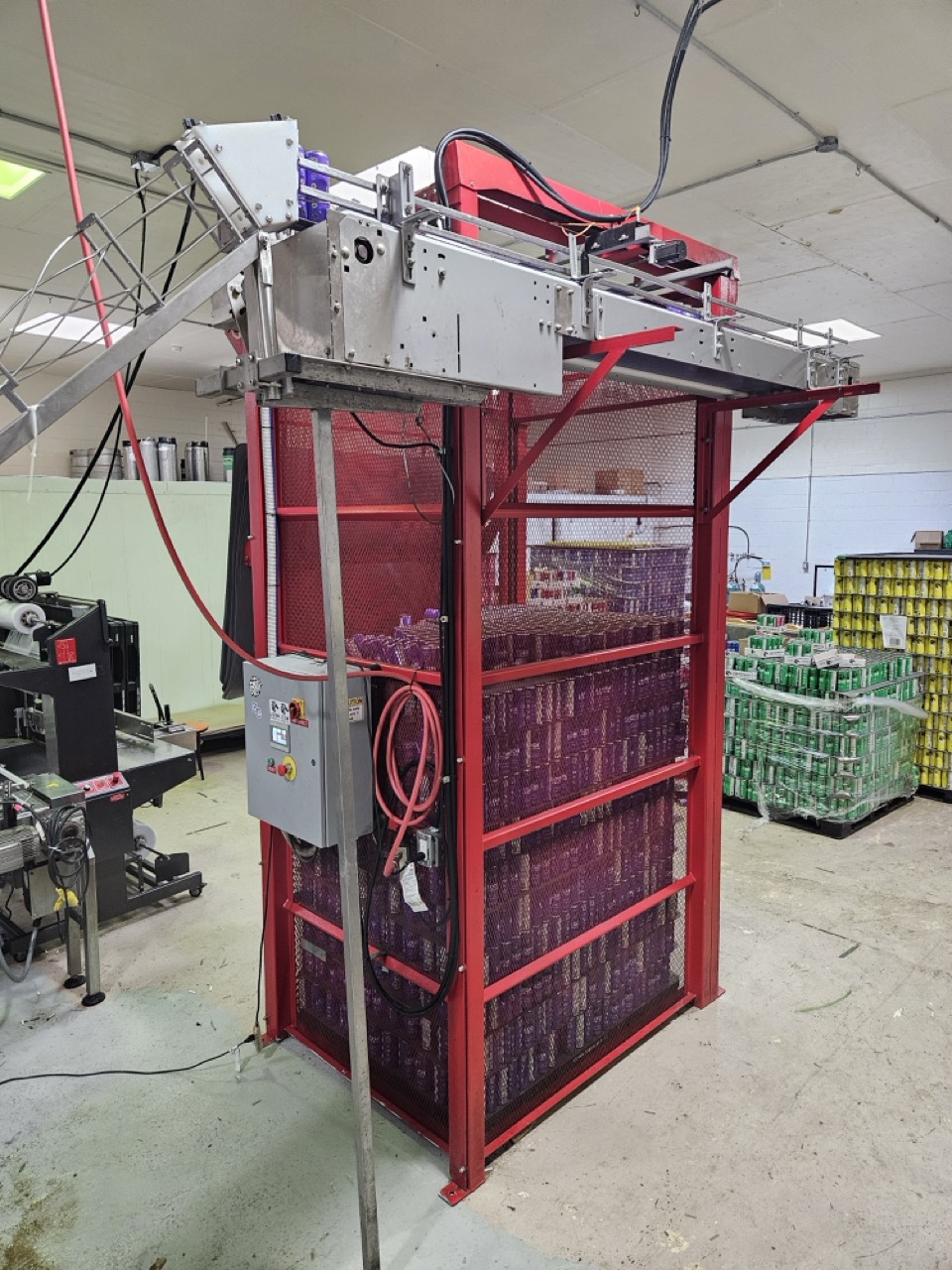

2. 2016 SKA Fabricating Can-i-Bus Depalletizer Full-height depalletizer with pallet elevator and layer sweep Feeds cans directly into the canning line Currently installed and operational Sweep cycle currently requires operator input rather than cycling fully automatically

3. ABE Twist Rinse + SKA Fabricating Conversion Kit Automatic can infeed/rinse ahead of the CraftCan Conversion setup provides a sharper incline and compact footprint Currently configured for 12 oz sleek cans

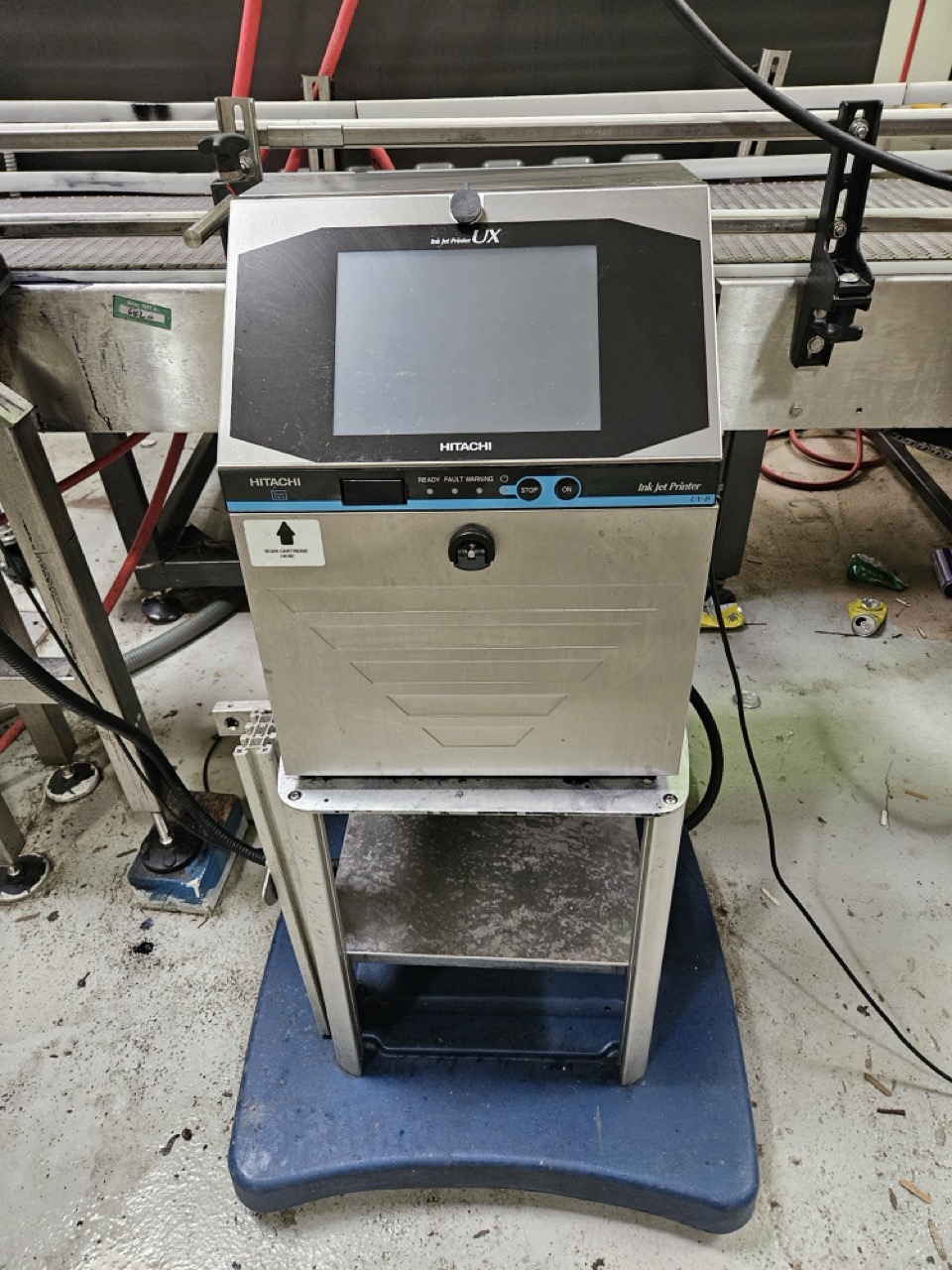

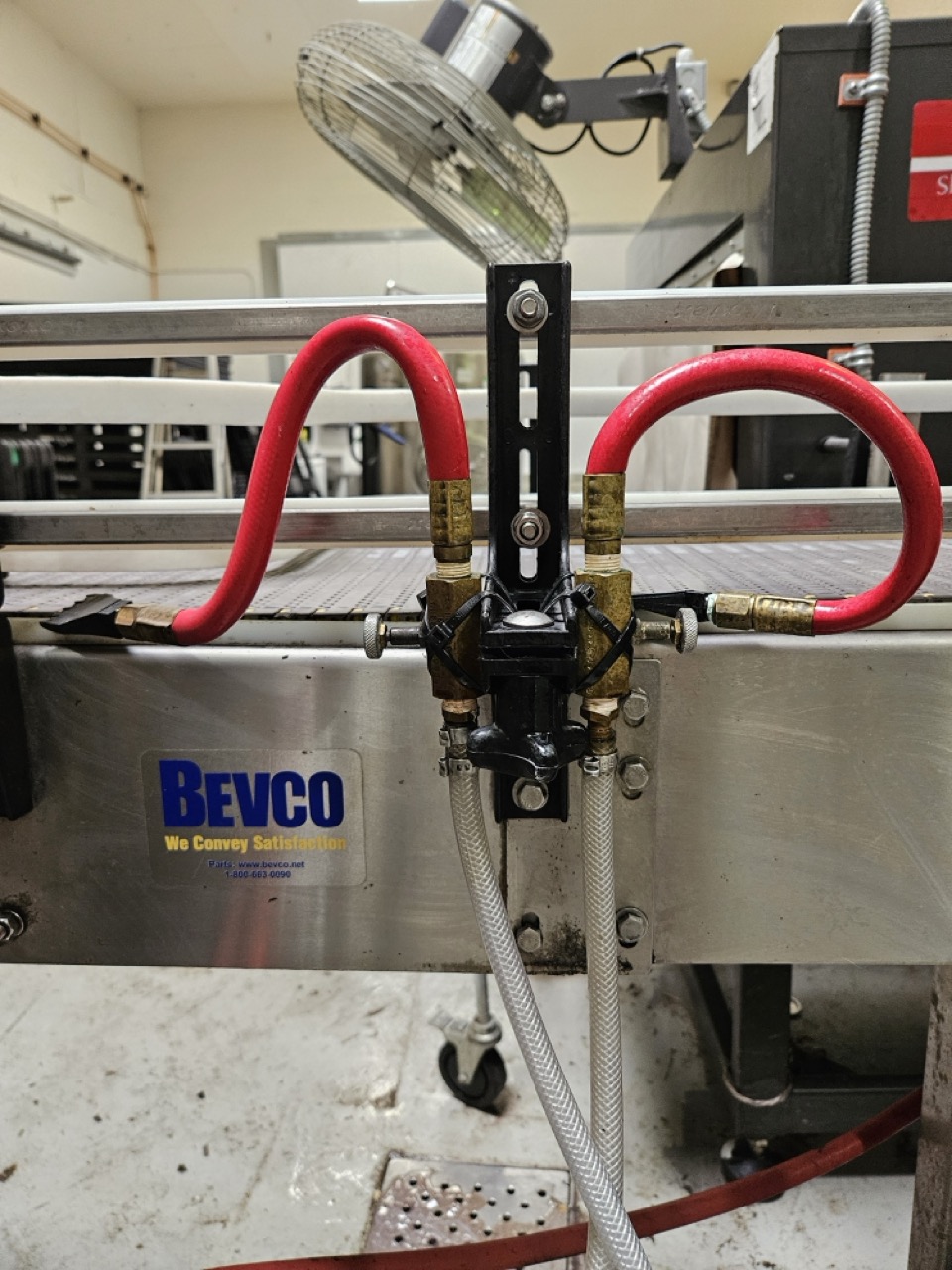

4. 2022 Hitachi UX-D161W Continuous Inkjet Date Coder + Air-Jet Assembly Integrated into the packaging line Custom air-jet setup dries the can surface before coding Prints production/lot codes prior to accumulation Up to 6 lines of print Fully operational

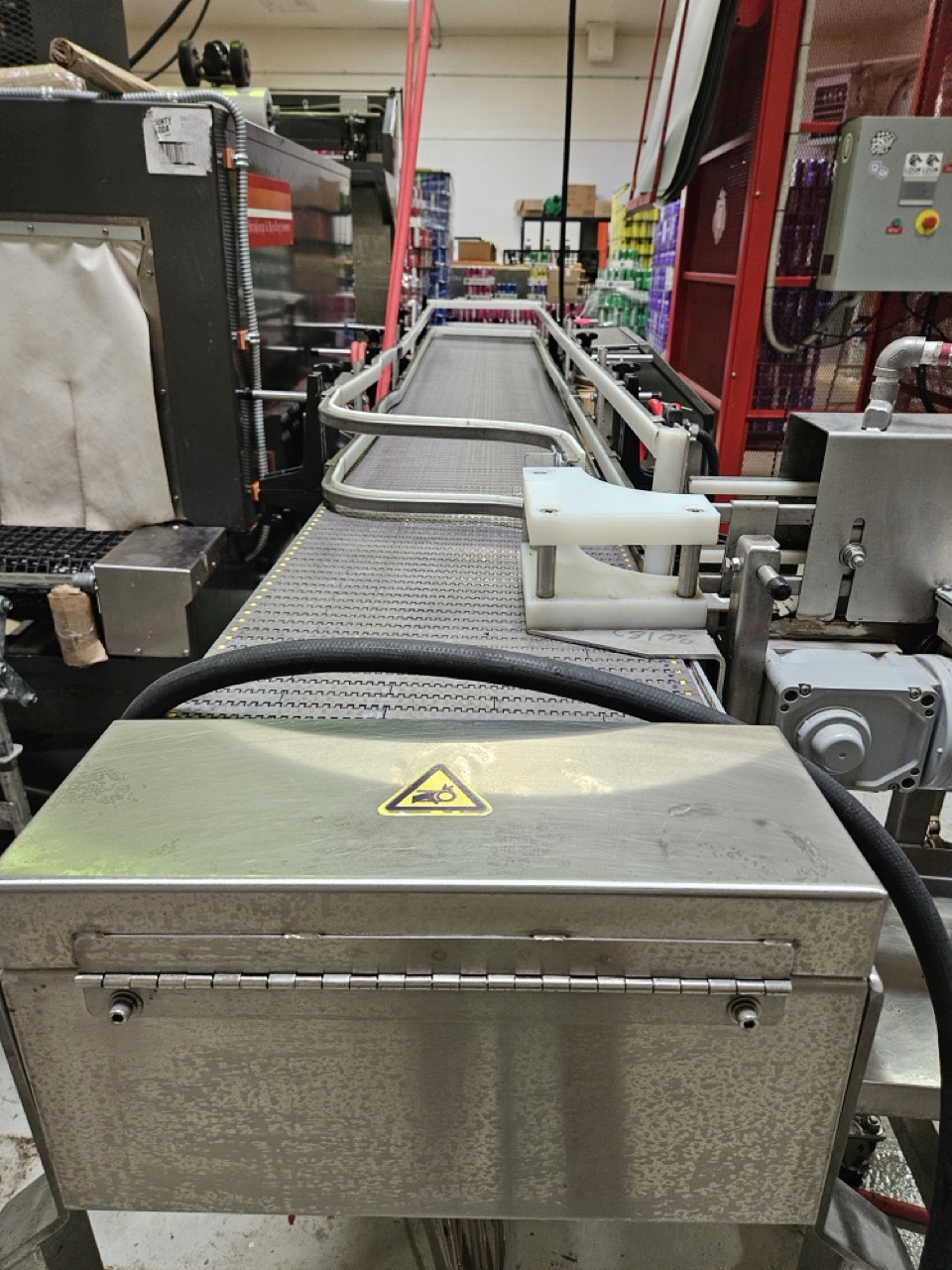

5. 2023 Bevco 11′ Accumulation Table Stages approximately 200+ finished cans Provides accumulation between the CraftCan and bundling station Excellent operating condition

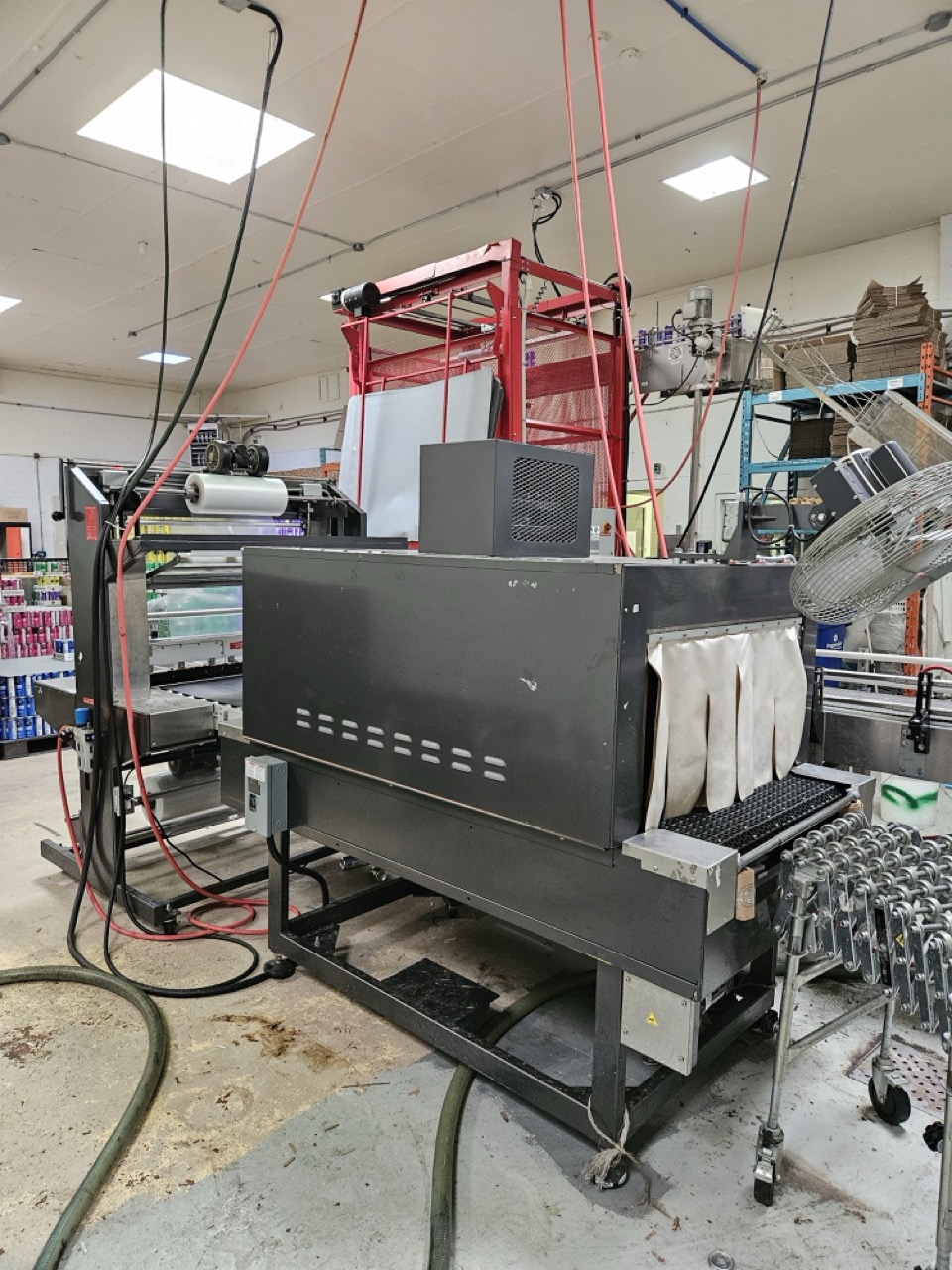

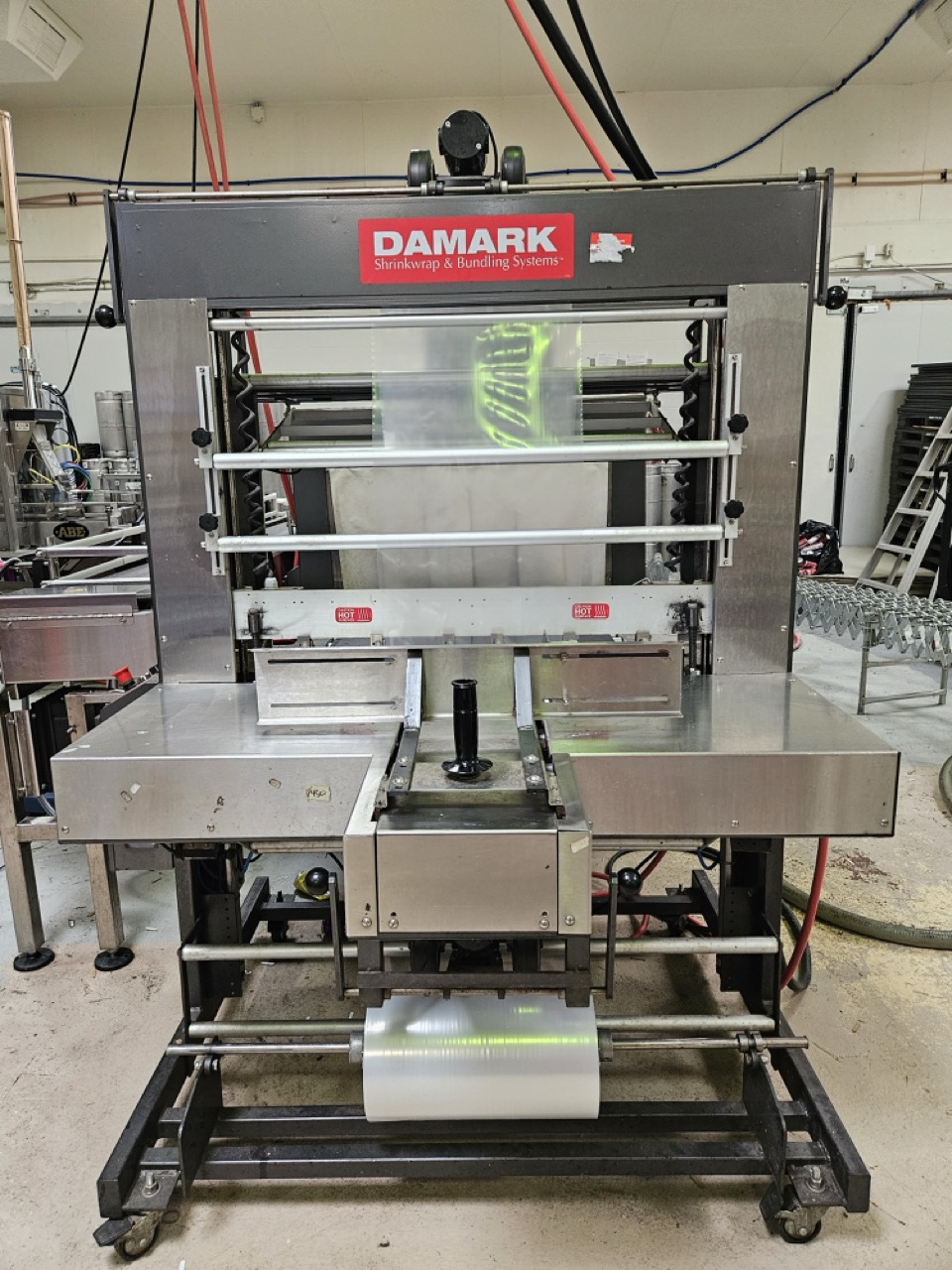

6. Damark/Plexpack B34MP Semi-Automatic Shrink Bundler + Shrink Tunnel Complete sleeve-wrapping and shrink-tunnel system Operator loads trays into the bundler Wrapped cases automatically convey through the heated shrink tunnel Currently producing finished 12-pack beverage cases Currently installed and operational

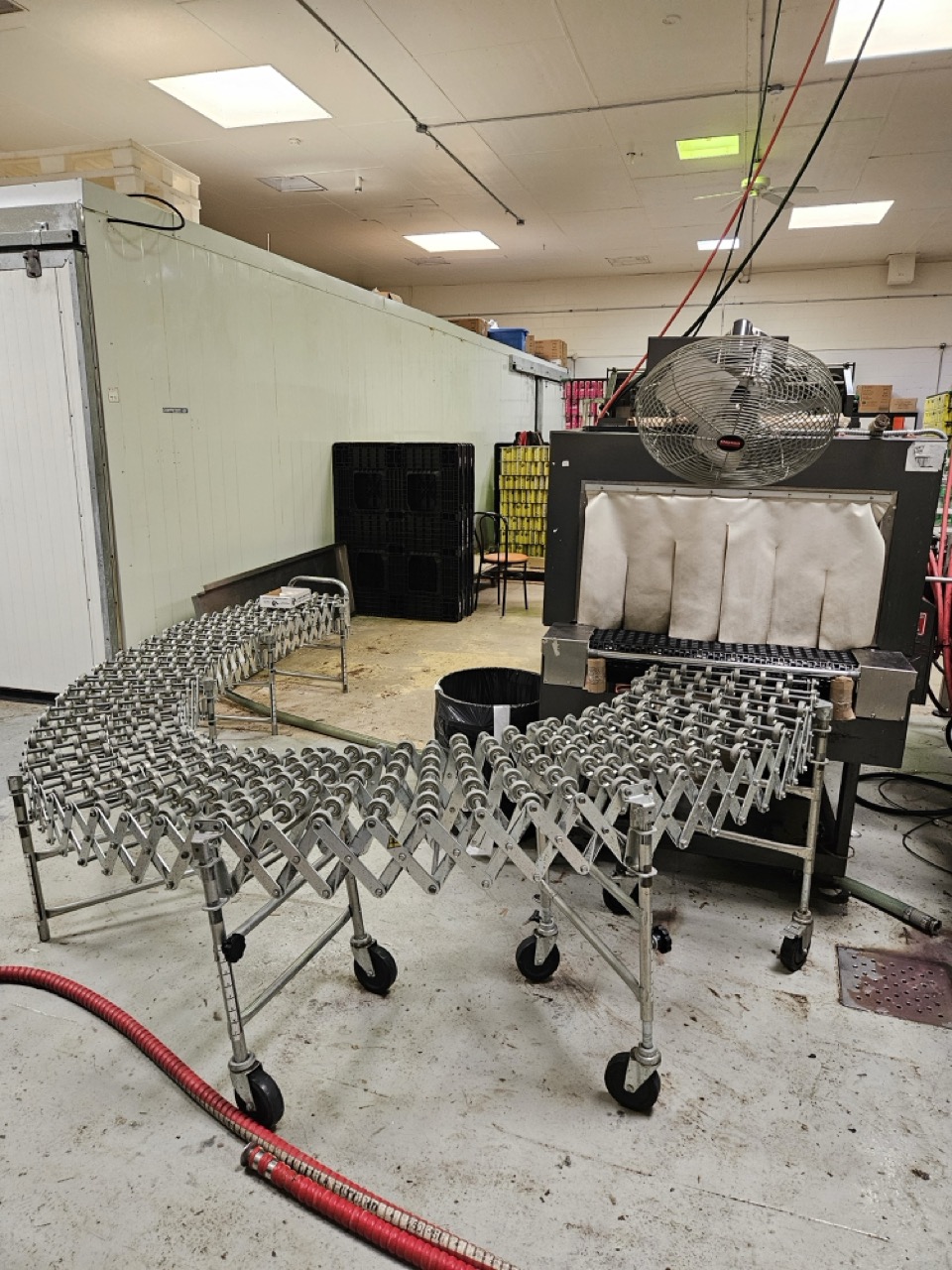

7. Nestaflex 275 Expandable Roller Conveyor Configured as a return conveyor from the shrink tunnel Returns finished cases to the same operator for palletizing Enables efficient single-person operation of the bundling station

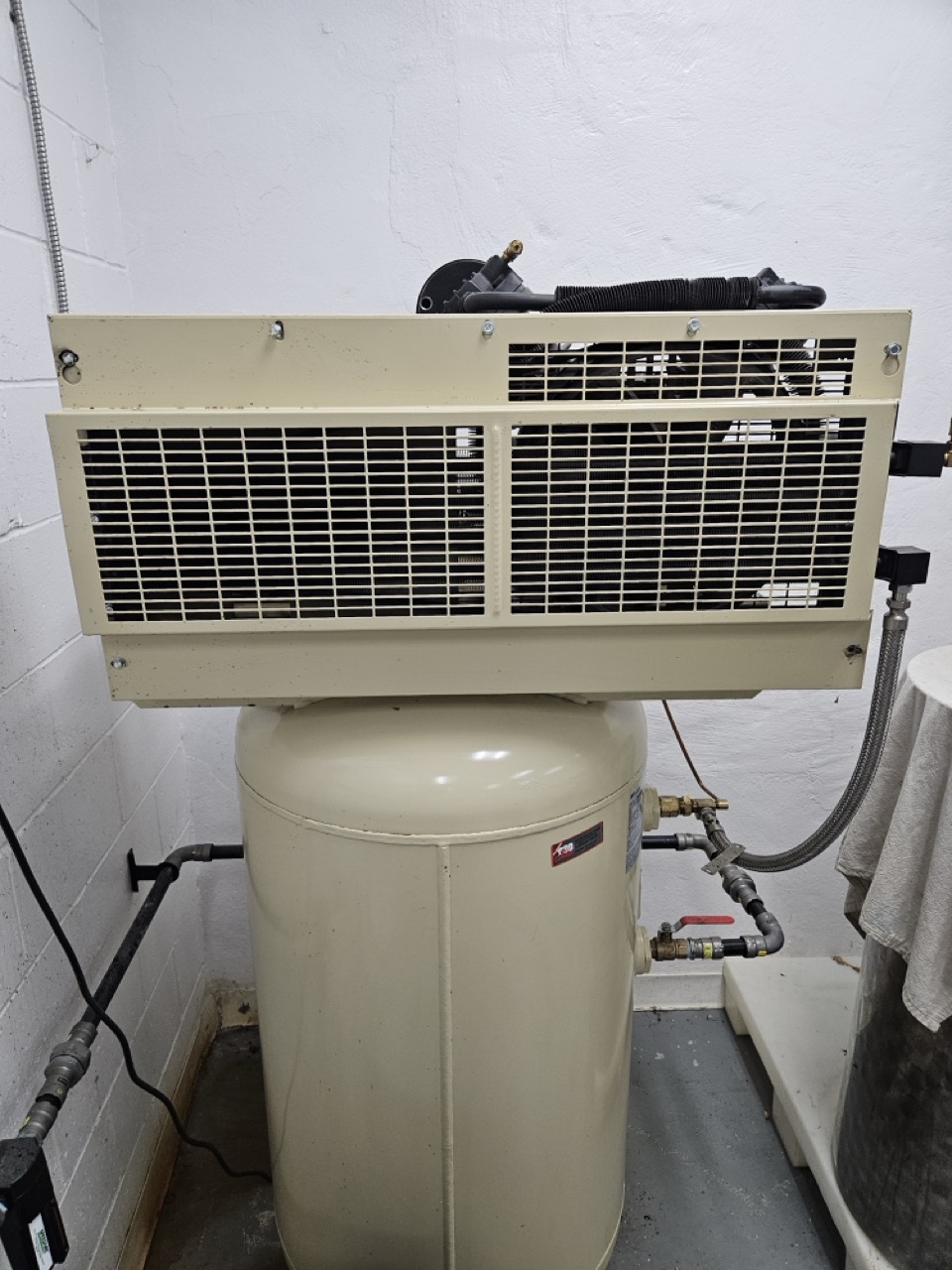

8. Ingersoll Rand 7.5 HP / 80-Gallon Air Compressor 208V, 3-phase Supplies compressed air to the packaging line Currently installed and operational

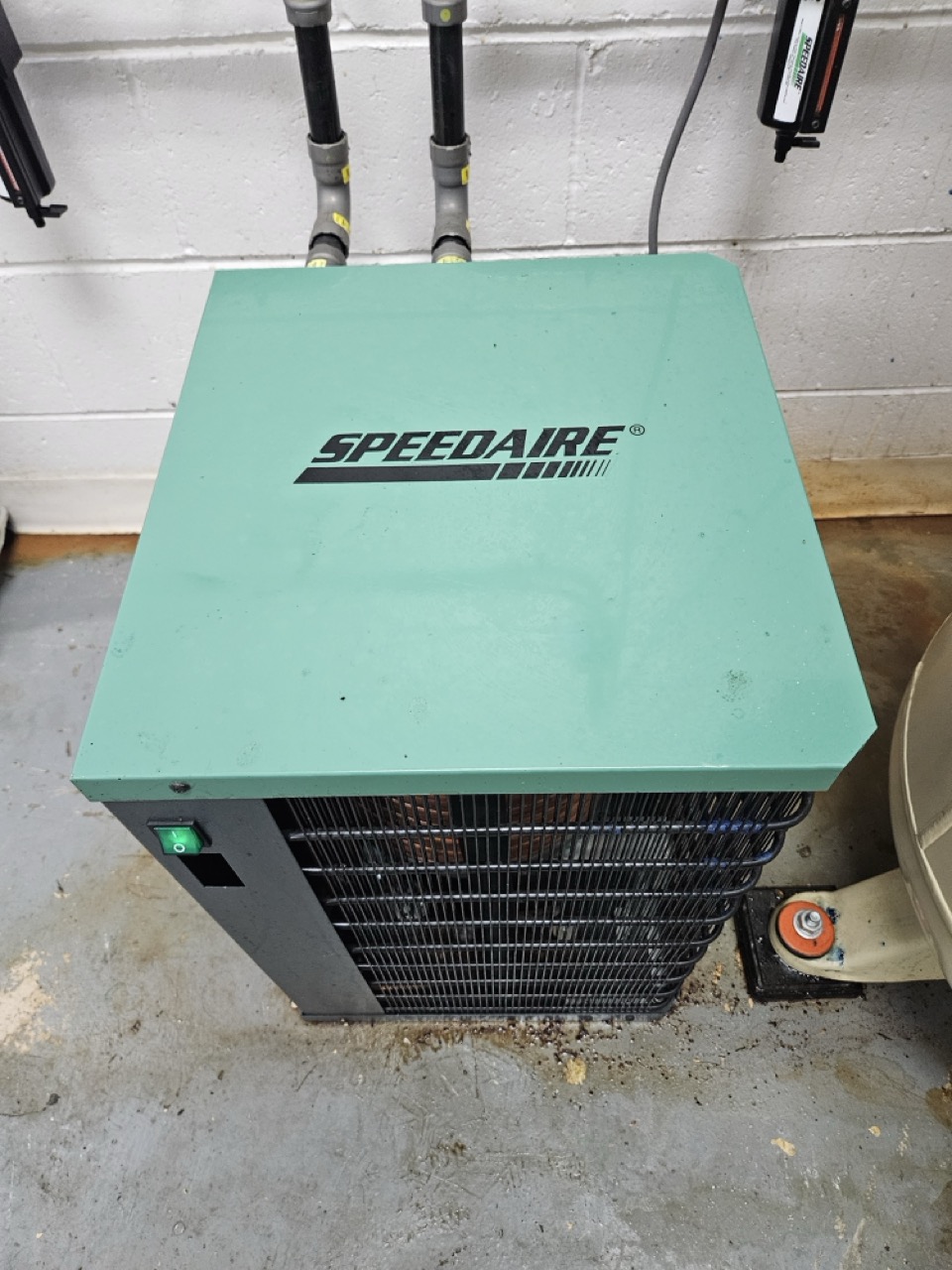

9. Speedaire 25 CFM Refrigerated Air Dryer Removes moisture from compressed air prior to supplying packaging equipment Currently integrated with compressor system

10. RapidAir Distribution System Approximately 100 ft of air line Associated fittings and connections included Compact Two-Person Operation The line has been configured specifically to minimize labour and floor-space requirements.

Operator 1: depalletizing, canning-line monitoring and upstream operation.

Operator 2: feeds accumulated cans into trays/bundler and palletizes completed cases. The return roller conveyor brings finished cases back to the operator’s workstation.

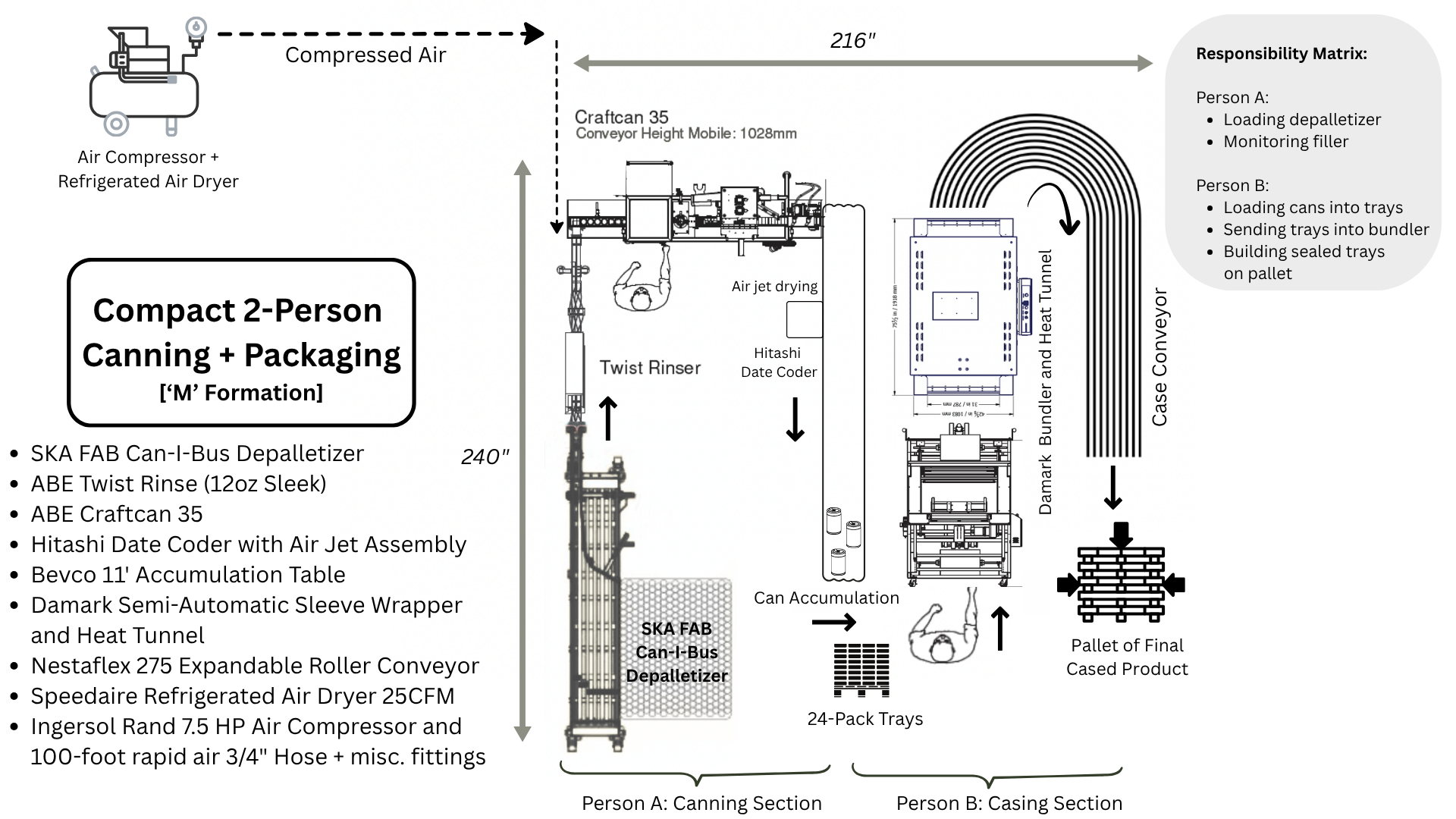

This provides a complete packaging process from palletized empty cans → filled and seamed cans → date coding → accumulation → shrink-wrapped finished cases in approximately an 18′ × 20′ footprint.

Located in Balderson, Ontario, Canada, approximately one hour from Ottawa. Currently installed and operational. Viewings and operating demonstrations available for serious buyers, but great video can be viewed below.

Buyer responsible for professional disconnection, rigging, removal, loading and transportation. Seller can help where possible and provide facility access. Major components are also being offered individually and are subject to prior sale.

Video available below.
