Price: $3,500 See Monthly Payments

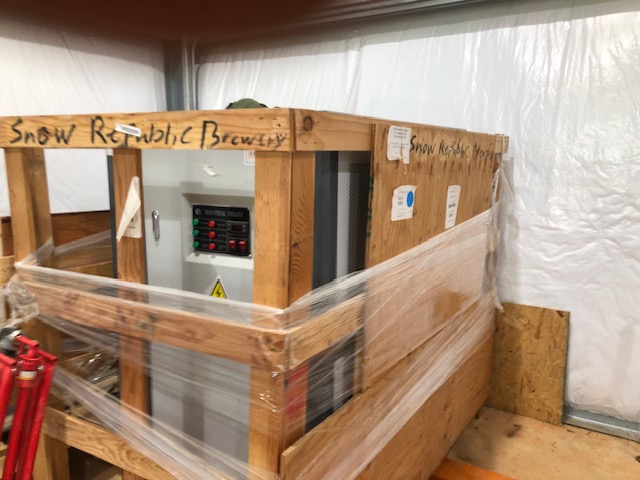

Refurbished 10 HP 230V 3 Phase Air-cooled Industrial Chiller. It was purchased refurbished from a dealer for an expansion project and was never used.
Features
1. High Quality Scroll Compressor
2. Stainless steel plate heat exchanger
3. Charged with R-407C refrigerant
4. Includes pump and water reservoir

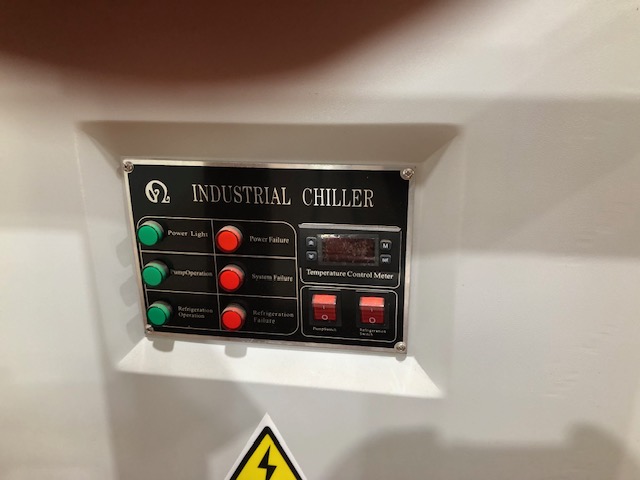

5. User friendly temperature controller
6. Alarm detection for abnormal pressures and overloads.
Technical Details
UNIT YZ-10F-230V
Cooling Capacity : 21,500 Kcal/h / 7.1 Btu/h
Compressor: All-closed Vorticity
Compressor Power : 7,5 kW / 10 HP
Refrigerant: R407C
Chilled Water Pump Power : 1.5 kW / 2 HP
Max Flow Rate of Chiller Water : 190 L/min / 50 GPM
Max Pressure : 20 m / 65.6 ft
Flow Water Inlet and Outlet Pipe : 1 inch
Cooling Fan Power: 0.49 kW / 0.75 HP
External Dimensions(L*W*H) mm 1450*850*1500 / in 57*33*59
Water Tank Capacity: 160 L / 42.6 gal
Gross weight: 360kg / 793lbs
Voltage: 230V ± 10% ,3 phase, 60 Hz;
