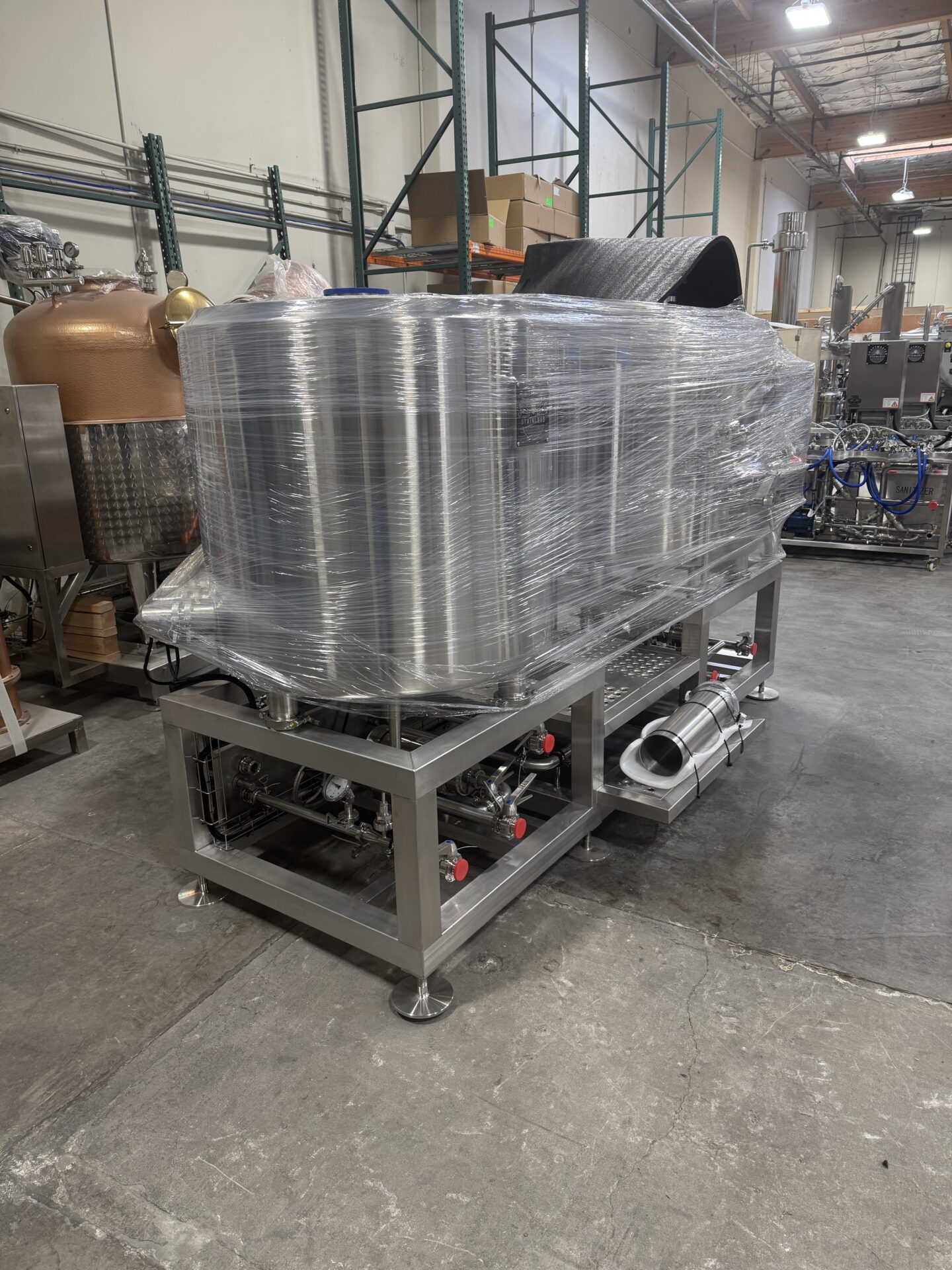

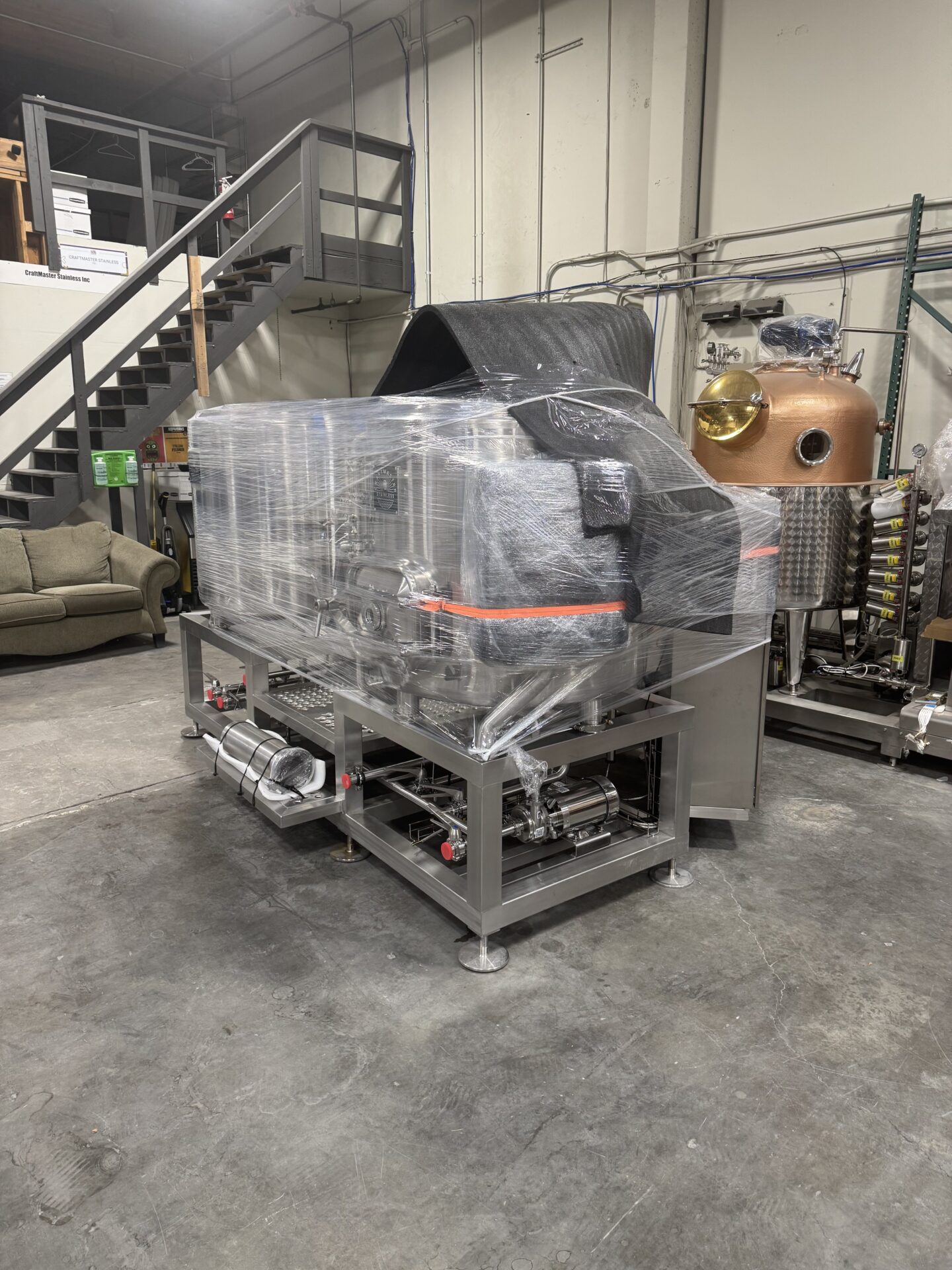

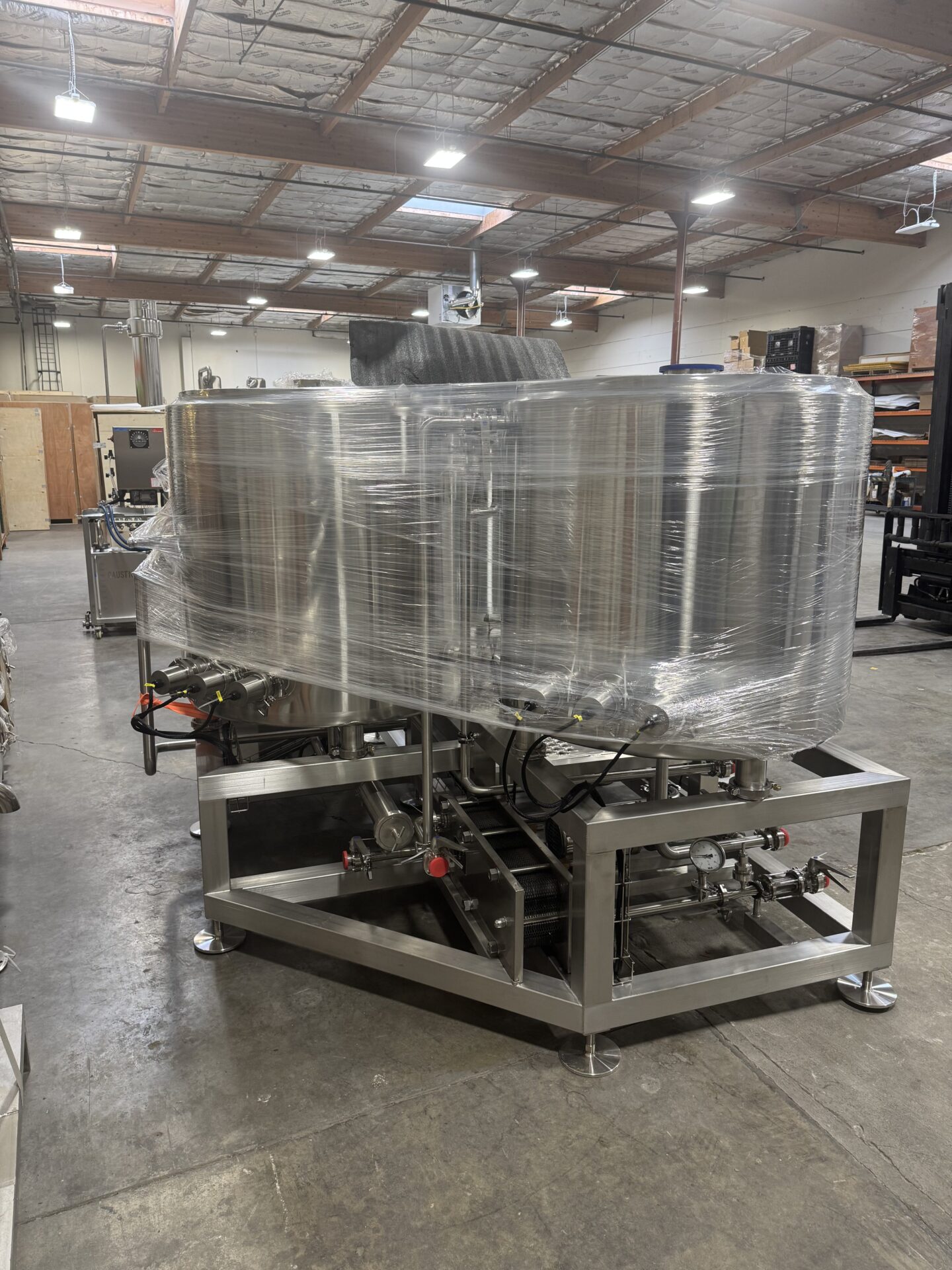

Brand NEW all the bells and whistles!!

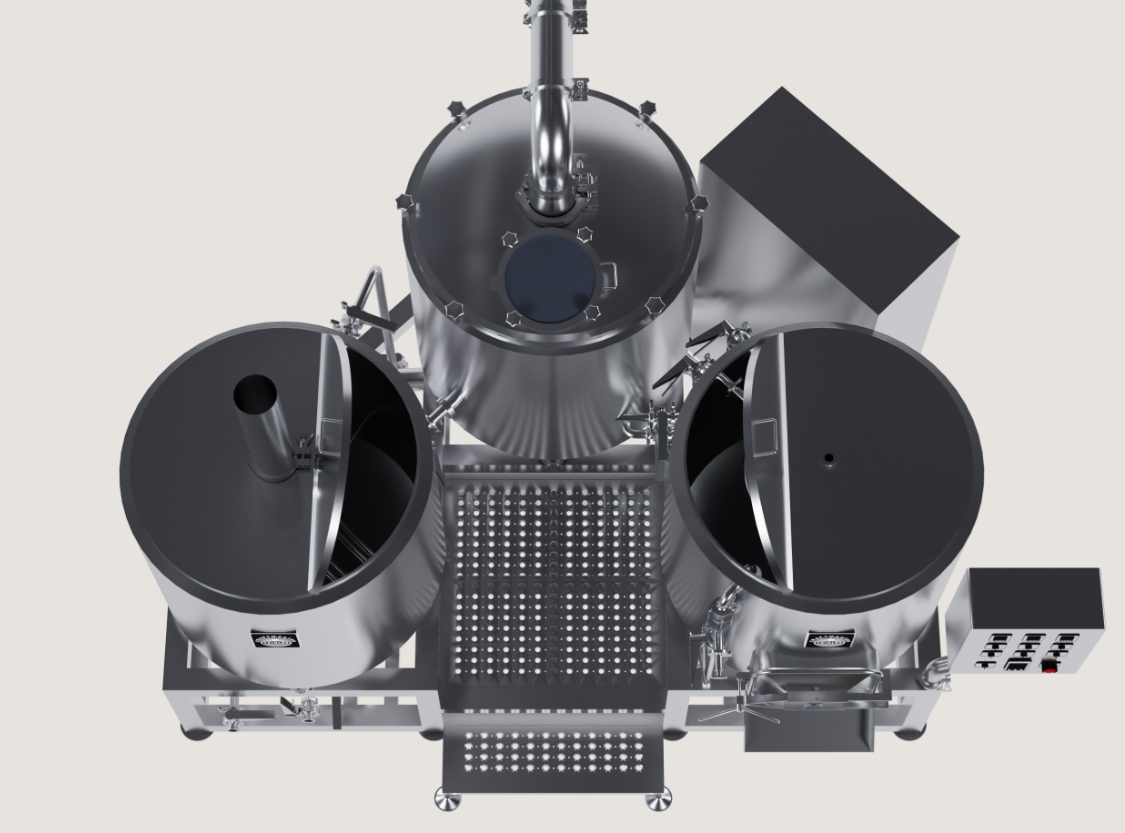

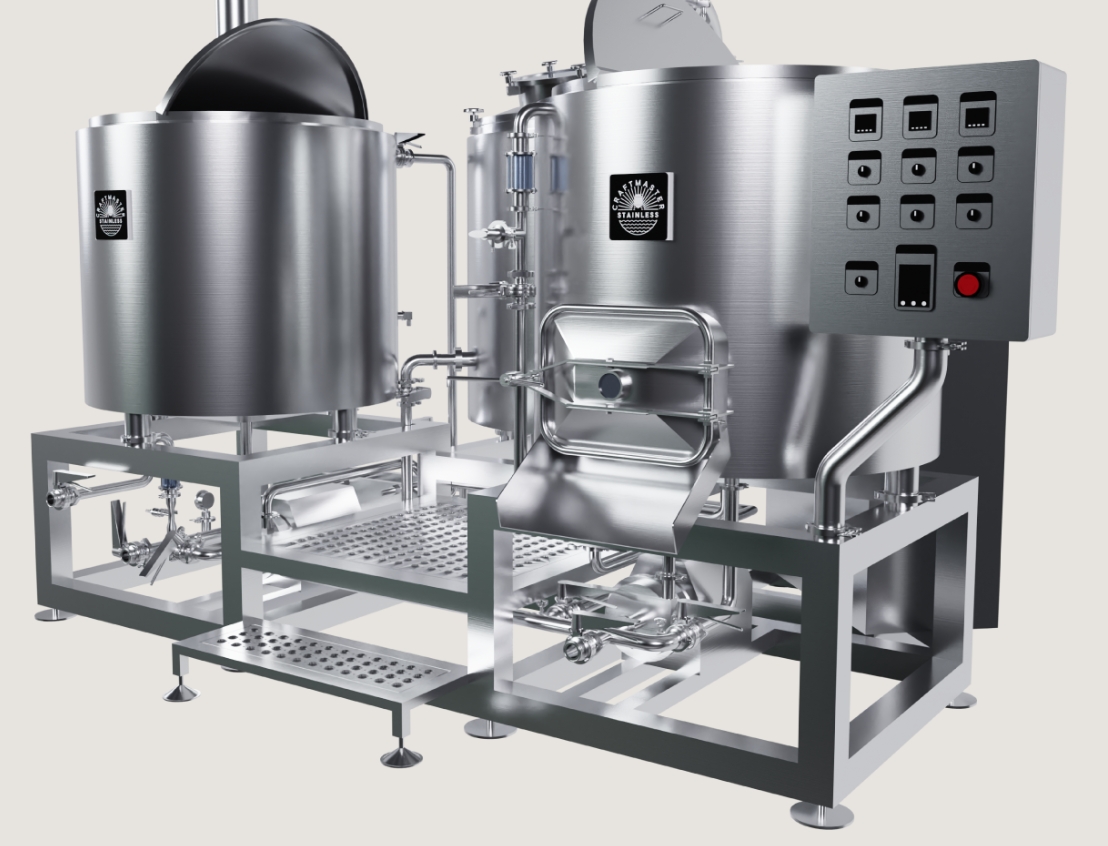

see websites for all pictures : Craftmaster 3.5BBL Game Changer Nano Brewhouse System

GAME CHANGER BREW
HOUSES:3.5BBL DECK, 3-
VESSEL BREWHOUSE,
SINGLE PHASE POWER
3.5BBL GAME CHANGER

BREWHOUSE, SINGLE-
PHASE ELECTRIC

SYSTEM
3.5BBL COMBINED
MASH / LAUTER TUN
Material: SUS304
Working Capacity: 3.5BBL
Gross Capacity: 5BBL
Manual open top lid
Wort Recirc/Vorlauf pipe
with sight glass
Detachable sparge ring
Graduation marks on
inside wall of Mash Tun
Tri Clamp 360° Rotating
Spray Ball
SUS 304 Stainless
Removable False Bottom,
0.7mm milled gap
PT100 RTD Temperature
Sensor hooked up to PID
Temperature Controller

1 28,900.00 28,900.00T

DATE ACTIVITY QTY RATE AMOUNT

3.5BBL ELECTRIC
COMBINED KETTLE /
WHIRLPOOL TANK
Material: SUS304
Working Capacity: 3.5BBL
Gross Capacity: 5BBL
Dish head with Tangential
Whirlpool Inlet
Bottom Drain outlet
3x 10KW Electric Heating
Elements, Individual
On/Off Controlled
360 Degree Rotating
Spray Ball
Wort outlet with rotatable
DIN fitting racking arm
PT100 RTD Temperature
Probe hooked up to PID
Temperature Controller
Graduation Markson inside
wall of Kettle
**Optional 4” Indoor Steam
Condenser Stack or 4”
weld to chimney flue for
exterior steam stack.
3.5BBL HLT (HOT
LIQUOR TANK)
Material; SUS304
Gross Capacity: 5BBL
3x 10KW Electric Heating
Elements, Individual
On/Off Controlled
PT100 RTD Temperature
Probe hooked up to PID
Temperature Controller
Graduation marks on
inside wall of HLT
3.5BBL, SKID MOUNTED,
WORKING PLATFORM &
PIPING
All SUS304, 2B stainless
steel framework
construction, Skid
mounted
All fittings, gaskets and
valves are included
1.5″ sanitary tubing
connects vessels, heat
exchanger and pumps
2x 1HP Centrifugal
Brewhouse Pumps
HLT Pump Controlled by
VFD

DATE ACTIVITY QTY RATE AMOUNT

Mash/Kettle Pump
Controlled by VFD
JFE Low level Sensors,
HLT & KWT
Individually Controlled
Heating Elements
CONTROL CABINET
SUS304 Stainless Cabinet
Temperature Controllers
for each vessel
On/Off switches for electric
heating elements
On/Off switches for motors
with VFDs
Emergency Stop Switch
CE, ISO, UL Certified
Components
Plate Heat Exchanger,
3.5BBL, 4m2
Material: SS304
Working Capacity: 4m2,
Single Stage Heat
Exchanger
Design Pressure: 145psi
Design Temperature: 300F
Hop /Strainer mounted
before PHE
Temperature Gauge after
PHE
Sight Glass mounted after
PHE
Wort aeration stone
mounted in line with sight
glass and temperature
gauge
GAME CHANGER BREW
HOUSES:GRAIN RAKE,
GAME CHANGER
GRAIN RAKE, GAME
CHANGER
VFD SPEED CONTROL
GRAIN RAKE, MOTOR
CONTROLLED FROM PID

1 2,800.00 2,800.00T

GAME CHANGER BREW
HOUSES:CONDENSER
STACK, GAME CHANGER
CONDENSER STACK,
GAME CHANGER

1 1,200.00 1,200.00T

GAME CHANGER BREW
HOUSES:RIMS SETUP,
GAME CHANGER
RIMS SETUP,GAME
CHANGER, 5KW

1 650.00 650.00T

DATE ACTIVITY QTY RATE AMOUNT

ELECTRIC HEATING
ELEMENT, POWER
ON/OFF CONTROLLED
FROM PID
PUMP ONLY:BOW
PELLER, 1HP, GAME
CHANGER
MOTOR/PUMP,
CENTRIFUGAL PUMP,
1800 RPM, STAINLESS
STEEL
Bowpeller Centrifugal
Pump
Material: SS304,Viton,
EPDM
Flow Rate: 3-130 GPM
Horse Power (HP): 1HP
Output Speed: 0-4,000
RPM
Impeller: Full 4.25”
Port Connections: 1.5”
Seal: External T.21

2 2,000.00 4,000.00T
