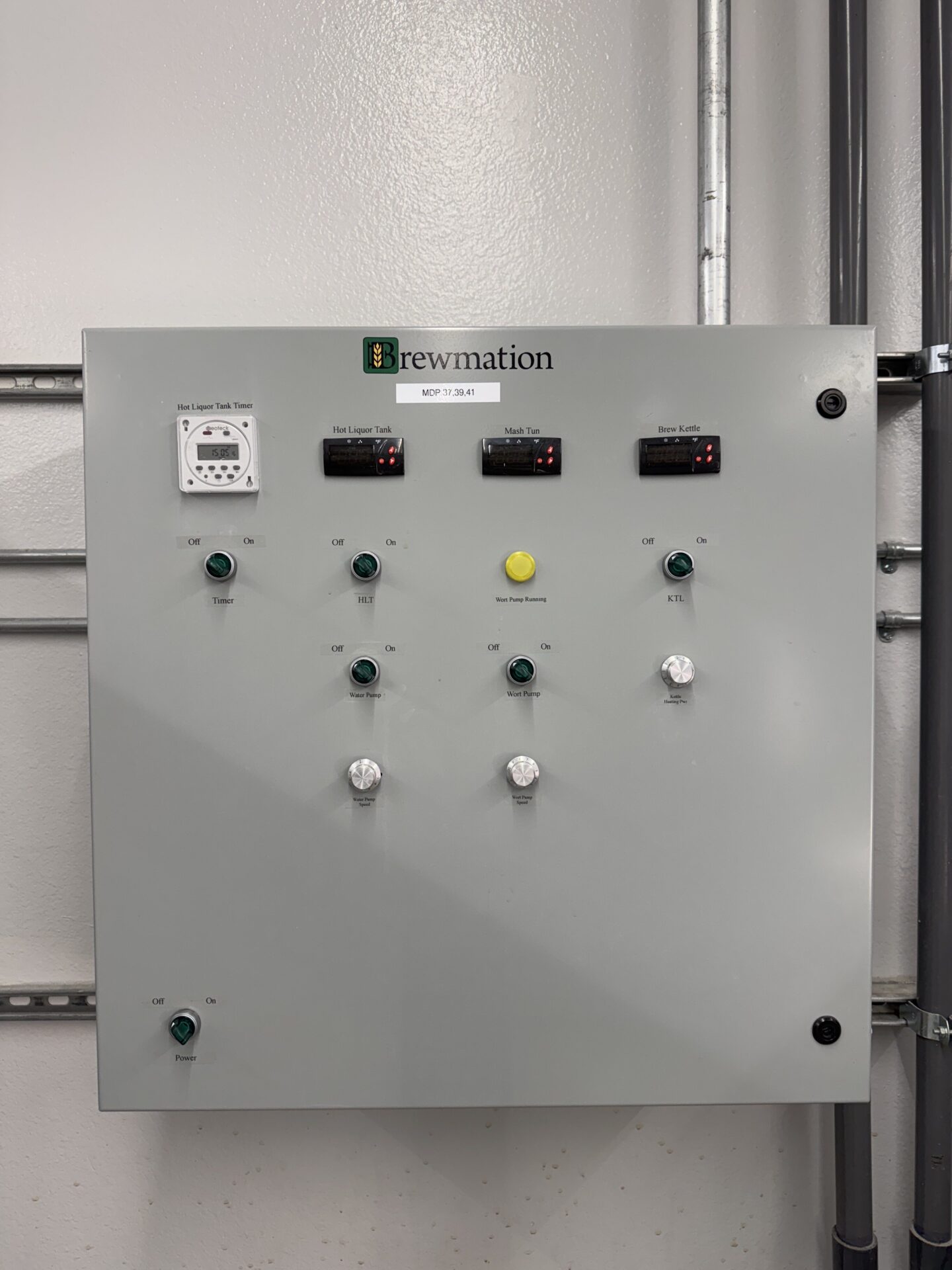

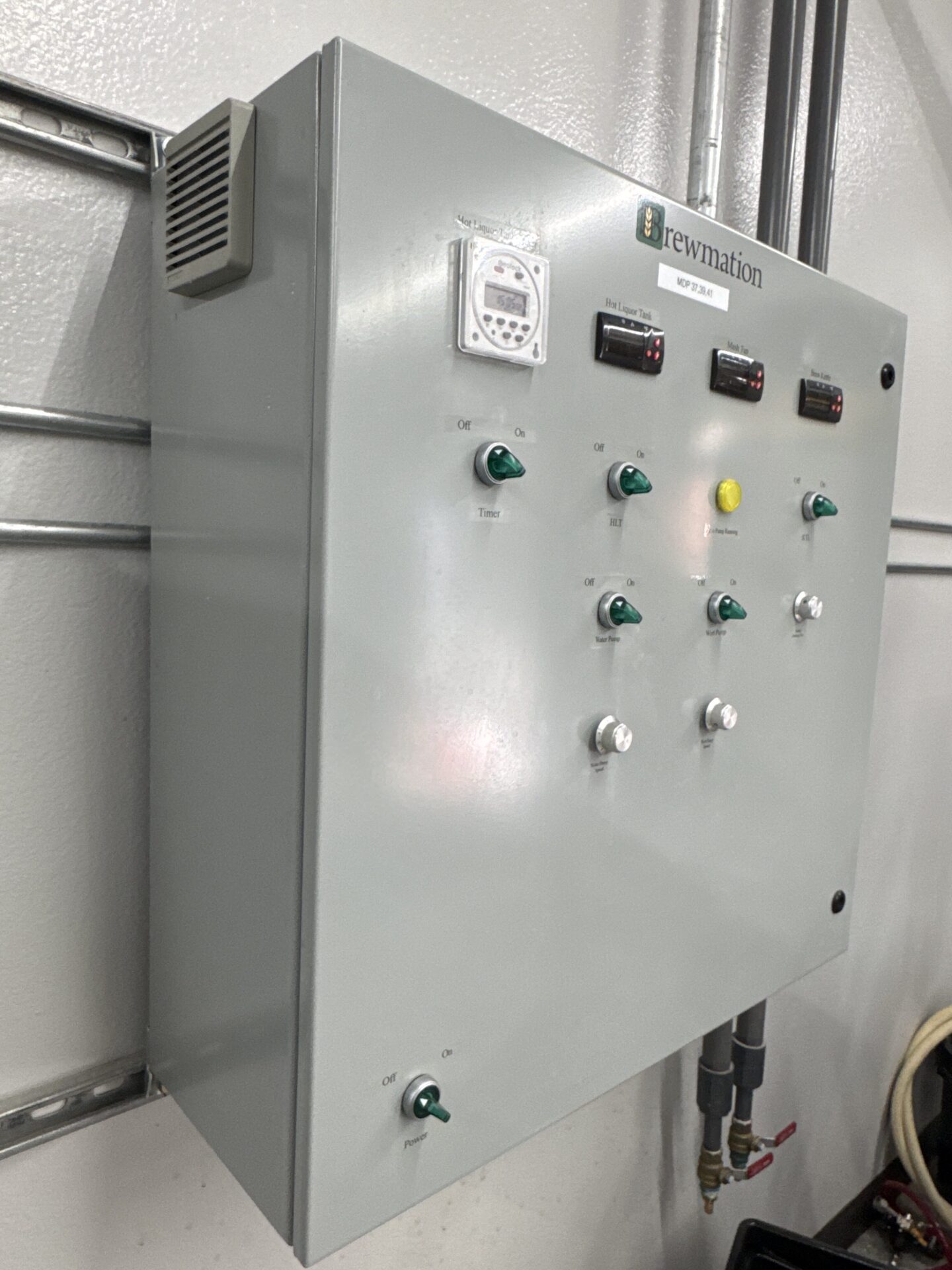

2 Bbl Basic Electric Turnkey Control System. with Elements, 2 Pumps, Hoses/Soft Piping, Fittings – for HERMS capable systems. Single or three phase
Internal GFCI protected breakers for heating
elements & pumps. 1ea. LOVE controller (for controlling HLT
temperature)
1ea. LOVE controller (for displaying Mash temp &
controlling RIMS temperatures)
1ea. LOVE controller (for displaying & controlling
Kettle temperatures)
Heat on/off switches for the HLT and Kettle. 2ea. Pump on/off switches (to control flange
mounted outlets).
POWER REQUIREMENTS:
The system is set up to accept the following circuit
sizes.
1) Single-phase – 60 amps minimum breaker size /
three-phase – 50 amps minimum breaker size: This
will allow the brewer to run three elements at
once. This will interlock the HLT and the kettle so
both cannot heat at the same time.
2) Single-phase – 125 amps minimum breaker size /
three-phase – 75 amps minimum breaker size: This
will allow the brewer to run four heaters
simultaneously.
