Price: $TBD

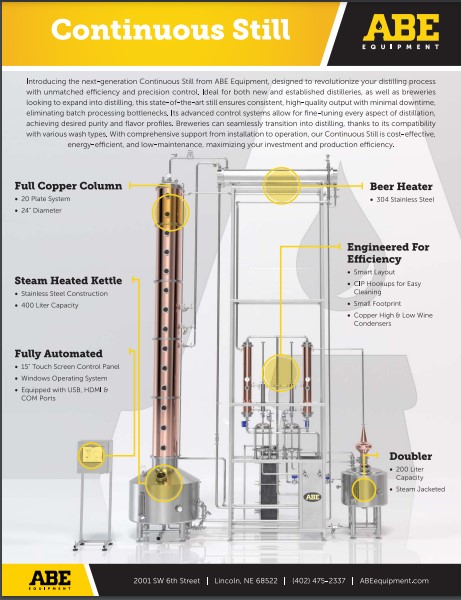

The ABE Continuious Still is capable of distilling 20 liters a minute (300 gallons/hour) producing 2.65 liters (.7 gallons) of finished product per minute at 140 proof. This data is based on a mash at 10% ABV.
-Pressure, temperatures, cooling and flow rates are all controlled by automation.
-Includes automation and data logging with a large HMI touch screen
-15″ windows based HMI screen has output capabillities to display on external monitors
-Steam jacketed kettle with herms coil
-Steam Jacketed stainless steel doubler
-Stainless steel high wines and low wines condensers
-Stainless steel tube in tube beer heater
-Capable of distilling both grain on and off mashes
-Can process organic material 3/16″ and smaller
-20 plate, 24″ diameter copper column
-10 sieve trays and 10 rectification trays
-3 beer injection points located on the column
-Integrated CIP operated on HMI touch screen
-208v 3 phase
-Beer feed and stillage pump included
