10BBL BREWHOUSE w/20BBL HLT, 4 x 20BBL FERMENTERS, 1 x 20BBL BRITE TANK, CIP CART, KEG FILLER, GLYCOL CHILLER, GRAIN MILL, TRANSFER PUMP, & RITE BOILER – Sold as Package or Separately. In use since 2022.

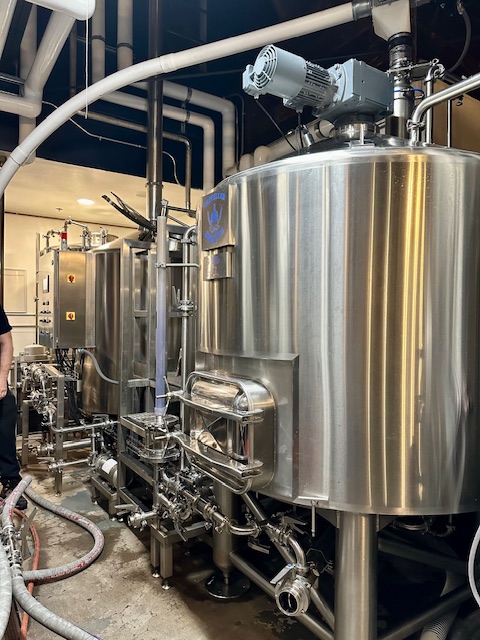

10BBL 2 VESSEL BREWHOUSE

• Platform positioned between BK/WH and MLT
• Non-slip walking surface c/w ladder and railing

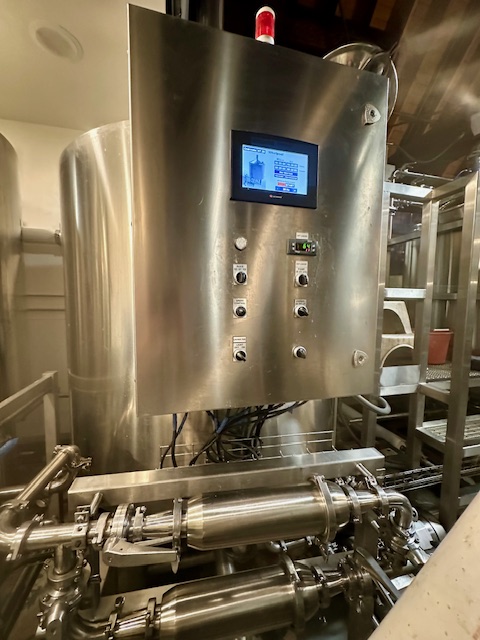

• 7” touch screen PLC on Brew Deck ◦ Displays Mash in/Sparging flow meter rate and total
• Lauter and Whirlpool pump control
• Displays MLT and BKW temperatures
• Visual and audible alarm
• Valves are sanitary, butterfly, manually operated type
• H2O mixing station with thermometer in central location
• H2O outlet, 1.5″ tri-clamp
• 0.75 hp mash pump, sanitary, open impeller, 1750 RPM
• 2 hp wort pump, sanitary, open impeller, 3600 RPM
• Self-standing airless grant

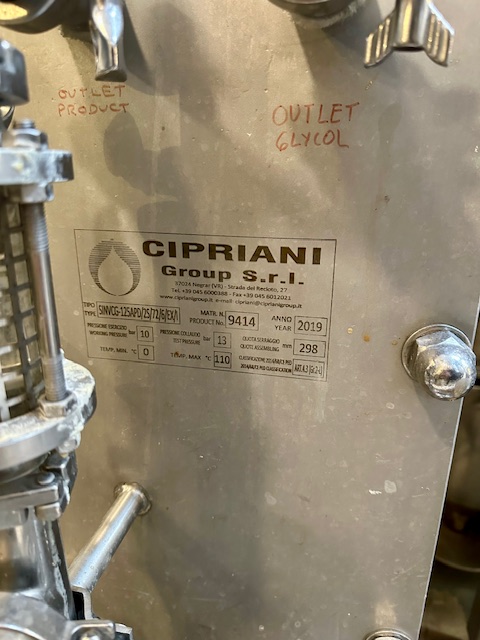

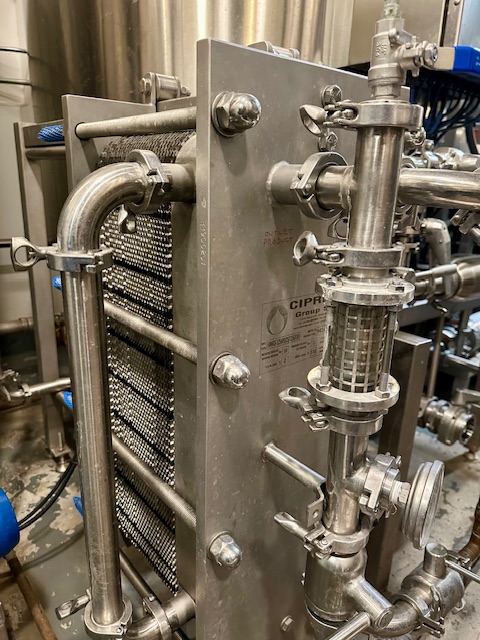

• Heat exchanger to be sized according to local conditions
• Heat exchanger outlet with O2 stone, sight glass and thermometer
• Control panels contain pump controls, digital temperature for BK/W and MLT, and all brewhouse accessories
• All valves and tubing throughout brewing system are included
• All hard piping throughout brewhouse included
• All connections are TRC clamps
• Dual inline hop strainer
• Tank Lighting

RAKE SYSTEM (NON LIFTING)

•  Unique design allows to successfully cut the bed and, at the end of the production, to remove the grain by changing the position of the wings.
• Heavy duty system, all in stainless steel
• Consists of a series of horizontal and vertical blades to cut the grain bed
• Variable rotation speed (mechanical speed adjustment)

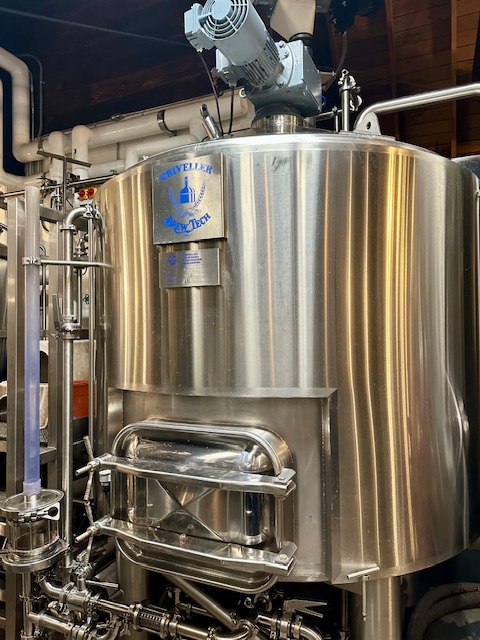

10BBL MLT

• Design capacity: grain bed of 10″-14″ for optimum extraction
• Material: 304 stainless steel shell, 4A finish, 2.5 mm thick
• Conical top sloped at 27. complete with manway 400 mm diameter, 3mm thick
• Conical bottom sloped at 4., 3 mm thick
• Side wall: stainless steel clad, 2 mm thick
• High density insulation, 2”
• Stainless steel adjustable legs for tank leveling
• Steam dimpled jacket positioned on side of lauter tun
• Total discharge 3″ complete with valve
• Thermowell for probe positioning
• Vorlauf re-entry port, 1.5″, positioned at 150.
• Multiple equidistant outlets culminating in the manifold
• Gooseneck assembly to prevent vacuum conditions or airless grant
• Manometer for reading screen pressure differential
• Mashing and sparging spray ball on the extended arm
• False bottom screen 0.7 mm, in sections for easy removal
• Side manway, rectangular outside opening, for the discharge of the spent grain
• CIP cleaning on 1.5” inlet 2″ double elbow exhaust vent
• Grist hydrator, complete with manual gate
• Underlay spray system

10 BBL WHIRLPOOL

• Material: 304 stainless steel shell, 4A finish, 2.5 mm thick
• Conical top sloped at 27. complete with manway, 300 mm diameter (12”)
• Conical bottom sloped at 6., 3 mm thick
• Stainless steel clad, 2 mm, on side and bottom
• High density insulation, 2”
• Steam dimpled jacket, positioned on the side & bottom of kettle
• Stainless steel adjustable legs for tank levelling
• Total discharge 3”, complete with valve
• Off-set wort outlet, 2”, complete with valve
• Tangential wort inlet, 1.5” x 1”, to create whirlpool effect for trub separation
• CIP spray ball on 1.5” inlet
• Thermowell for probe positioning
• Water inlet, 1.5”
• Exhaust outlet, 6”
• Supplied with dipstick and ladle
• Sight gauge level indicator
• Overboil protection with acoustic alarm

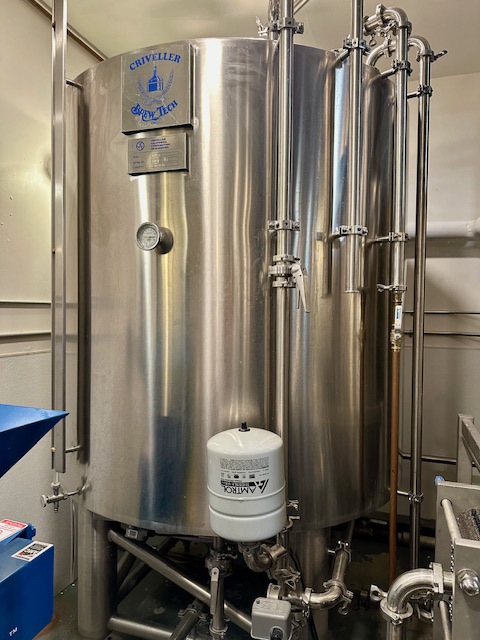

20 BBL HLT

• Material: Stainless steel shell, 304/4A finish, 2 mm thick
• Conical top sloped at 10., complete with manway
• Conical bottom sloped at 10., 2 mm thick
• Stainless steel clad, 2 mm thick
• High density insulation, 2”
• Stainless steel adjustable legs
• Dimpled jacket positioned on the side of vessel
• Dual scale thermometer, with thermowell
• Thermowell for probe positioning
• Sight gauge level indicator
• Hard piping between tank and SERVING PUMPS FOR THE HLT (pump operates on demand)
• Stainless steel re-circulating pump, high pressure, 3500 RPM
• Pump outfitted with extra outlet and inlet for other use
• Complete with Buffer pressure tank, auto pressure switch & check valve
• All pump wiring and switches

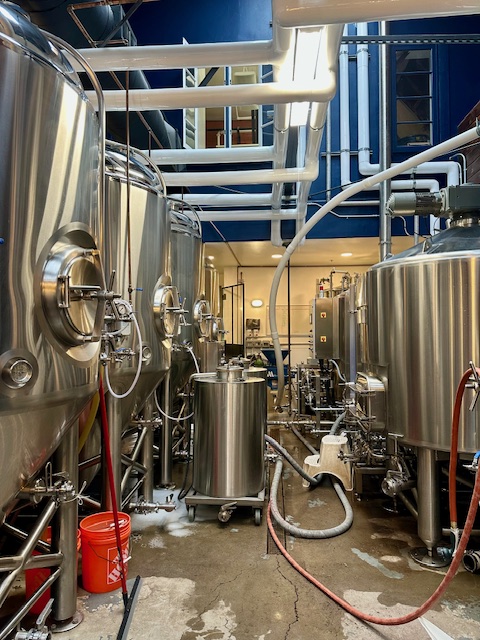

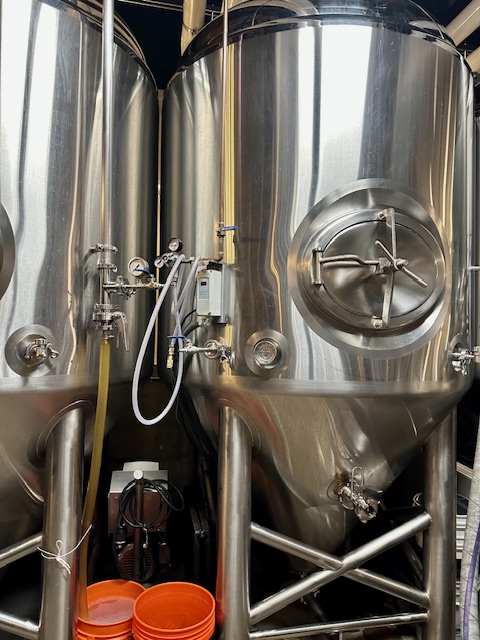

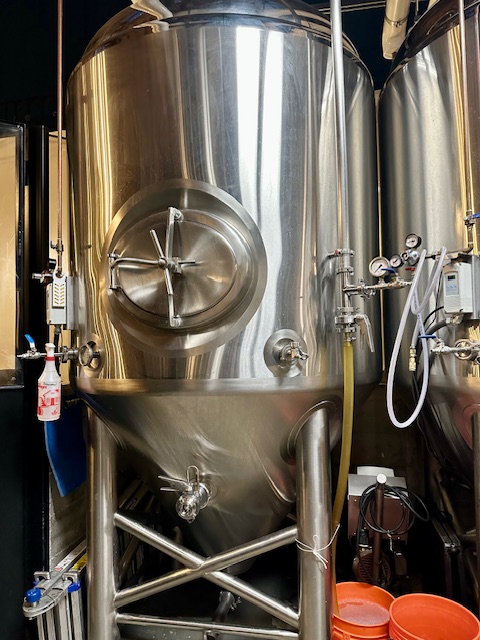

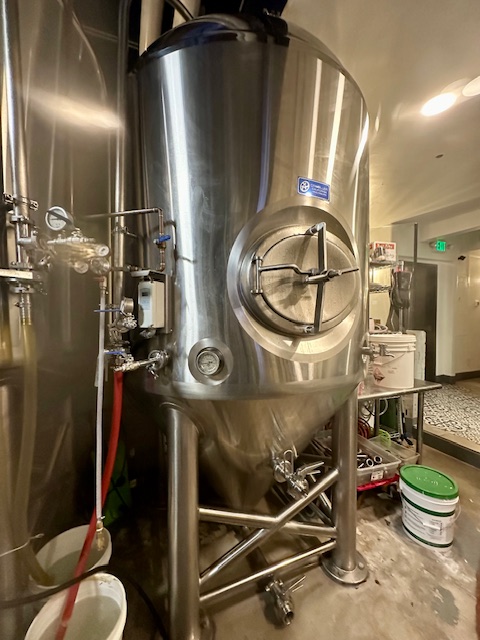

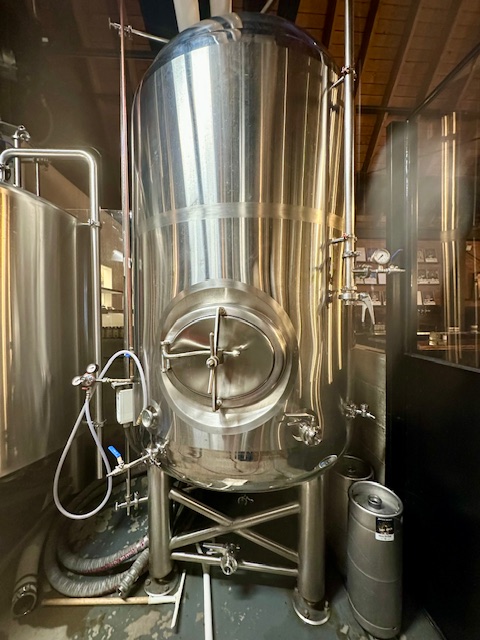

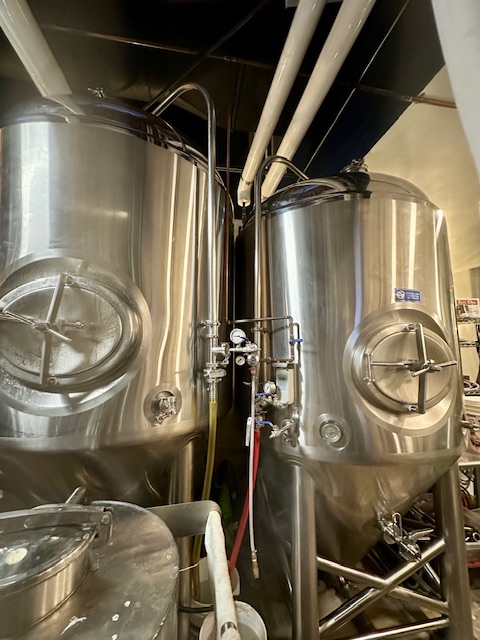

FOUR 20 BBL JACKETED FERMENTERS  & ONE 20 BBL JACKETED BRITE

• Operating pressure: 14.9 psi maximum
• Stainless steel shell, 304/4A finish, 2.5 mm thick
• Domed top, 3 mm thick

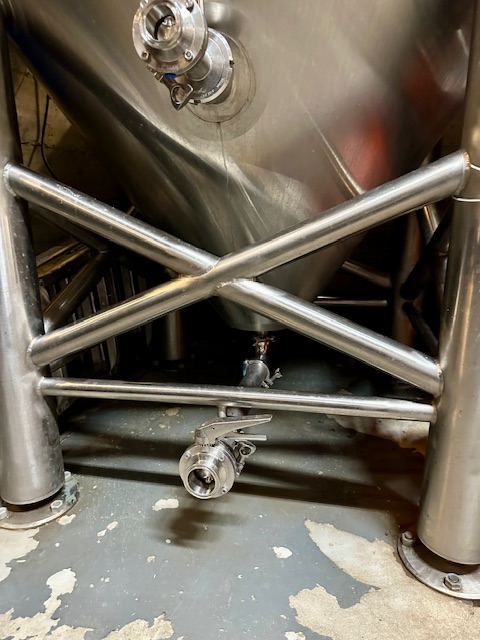

• Conical bottom, 2.5 mm thick (60 degree cone)
• 2 dimpled glycol jacket positioned on the full length of the shell maximizing efficiency
• 1 dimpled glycol jacket positioned on the cone of vessel
• High density insulation, 2”
• Stainless steel clad, 1.5 mm thick, on side of vessel (full welded)
• Stainless steel clad, 1.5 mm thick, on cone of vessel (full welded)

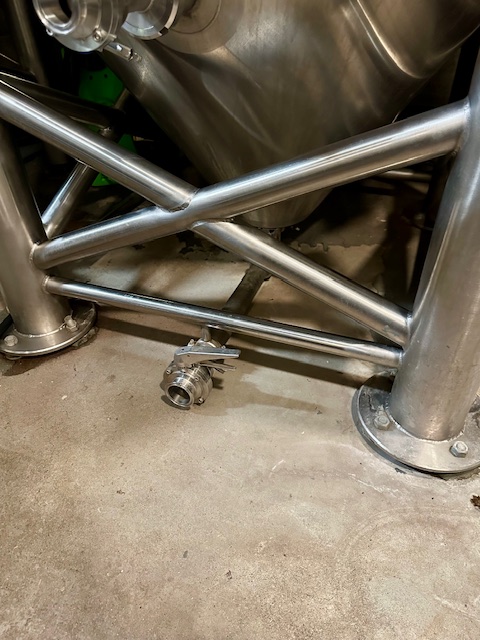

• Stainless steel legs with adjustable floor pads
• Side manway, “Shadowless”
• Dual scale thermometer with thermowell
• Thermowell for probe positioning
• Sampling valve, “Perlick” type
• Racking outlet, 1.5″ TRC
• Total discharge, 2″ TRC
• Vacuum/pressure relief valve, 2″ tri-clamp
• 1” NPT fitting for glycol inlet/outlet
• CIP arm, 1.5″, with removable spray ball assembly

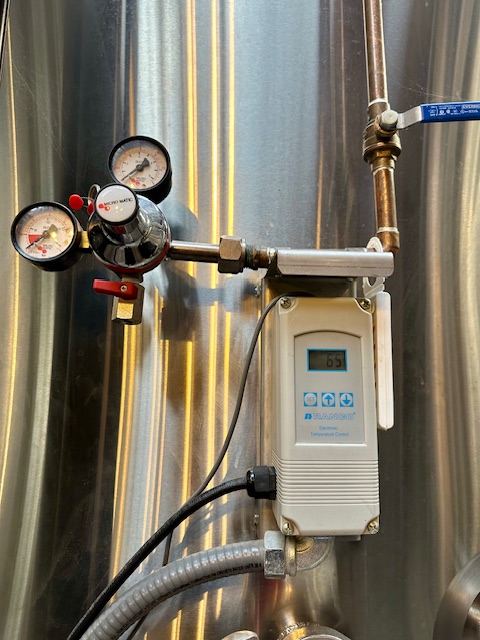

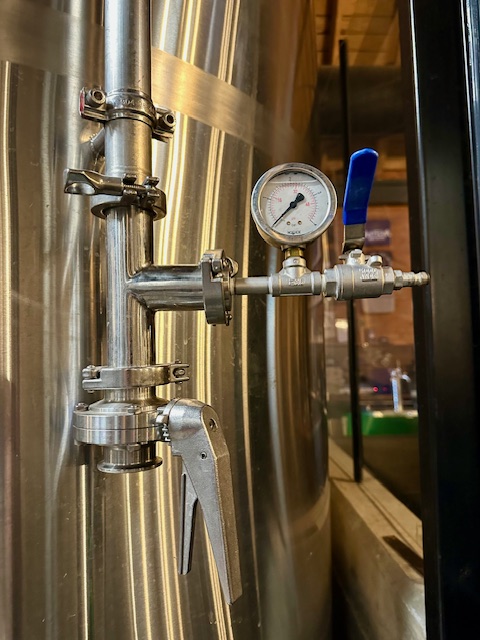

• #1 – CO2 valve, .” complete with pressure gauge
• #2 – Lifting lugs
• Racking arm 6” Hop Ports Temperature Controllers

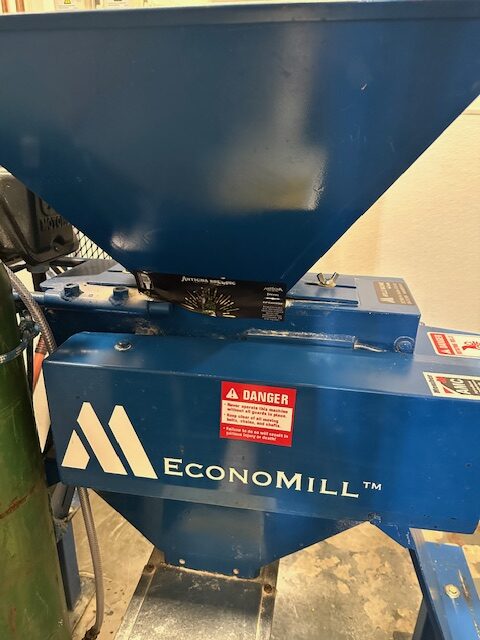

ECONO MILL WITH EXPLOSION PROOF MOTOR

The mill has a capacity of approximately 1200lbs/hr. Unit comes with hopper, motor mount, stand, magnet and drive pulley.

• Heavy duty unit, complete with safety guards
• Econo roller mill
• Length: 6” Diameter: 8”
• 1.5 HP / 3 PH explosion-proof motor

FLEXAUGER-BOOT FLEX AUGER

• Heavy duty unit
• Single 30 degree boot assembly
• 30 foot PVC direct drive (1/2 hp) flex auger system which includes:
  • ◦ 3-10’ PVC tubes
  • ◦ 2-45 degree PVC elbows
  • ◦ auger
  • ◦ chain for hanging
  • ◦ mechanical switch

MOBILE TRANSFER PUMP

• Tri-clover pump, full sanitary design
• 1.5” TRC connections
• On trolley with wheels
• Can be utilized as a filter pump
• All electrical included

Kegfiller KEG FILLER

• Four keg filling manifold
• Stainless steel construction
• Pressure gauge
• Sankey keg taps

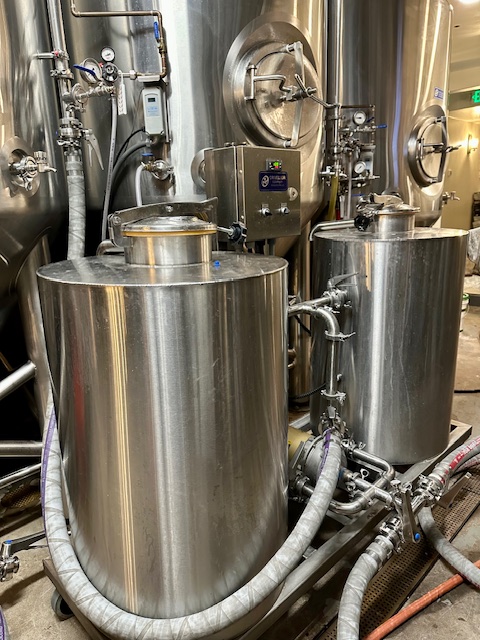

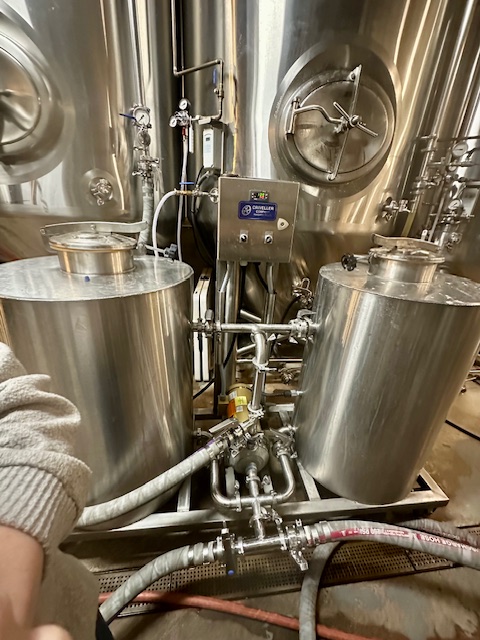

DUALTANK-CIP DUAL TANK CIP CLEANING SYSTEM

• Stainless steel construction •
• Heavy duty frame with wheels
• #2 – 250 L tanks with manway, with heating element
• High pressure stainless steel pump
• Valves are sanitary, butterfly type
• All piping and electric included

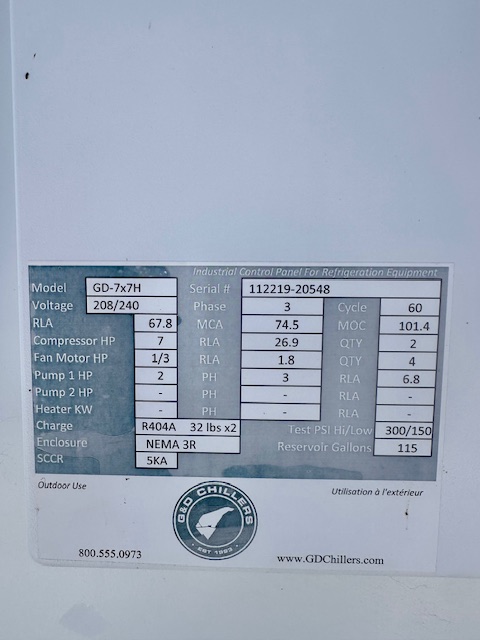

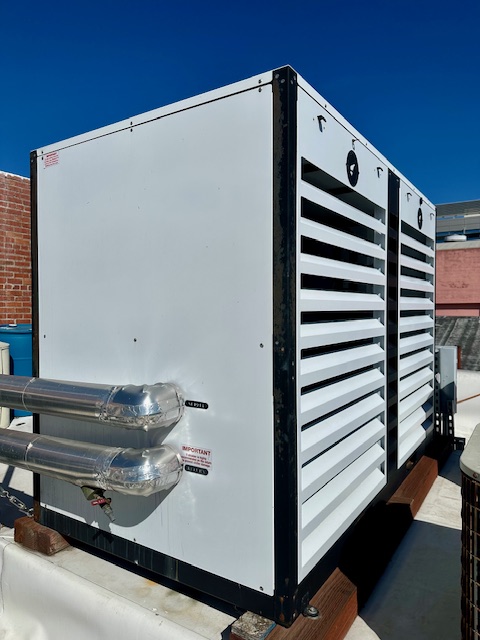

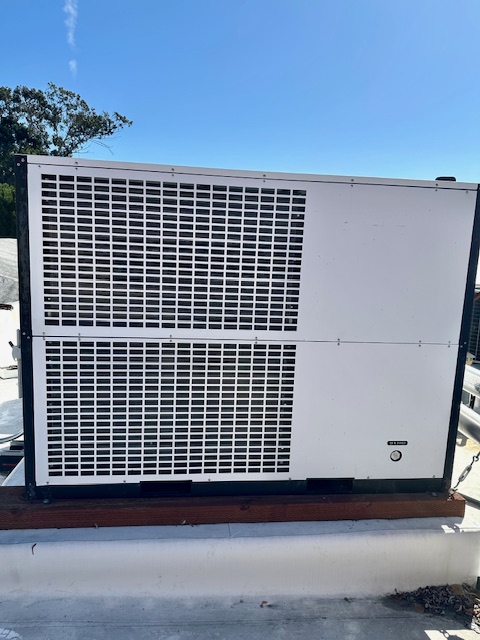

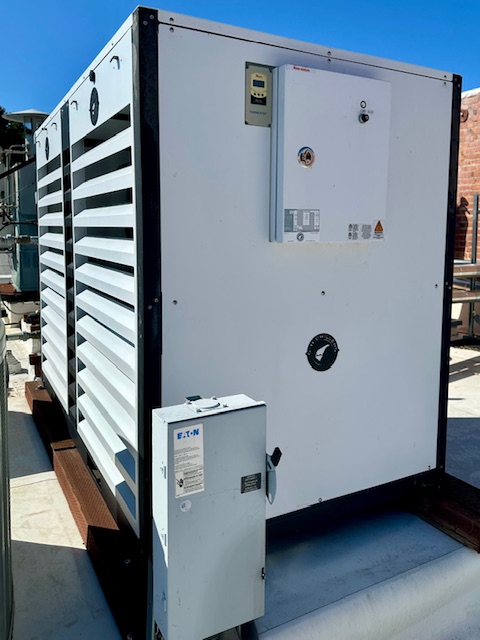

G&D 7×7 MK-18A-160 GLYCOL CHILLER

• Power Supply: 230 V / 3 Phase / 60 Hz
• 102,092 BTU/hr. @ 30Åã F •
• 65 GPM @ 25 psi. •
• 2 HP GLYCOL PUMP 1.5” FPT connections

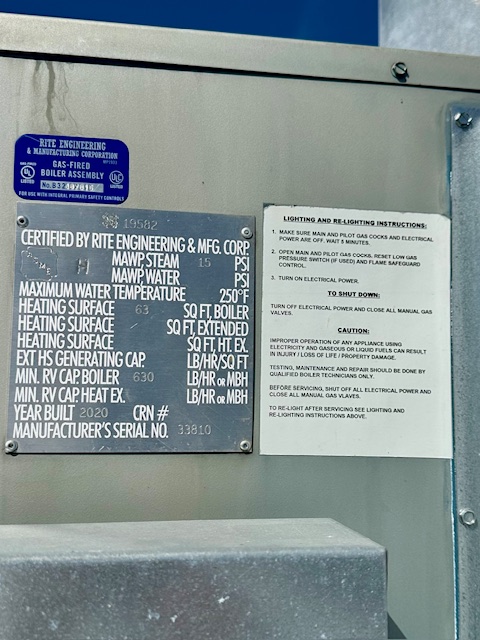

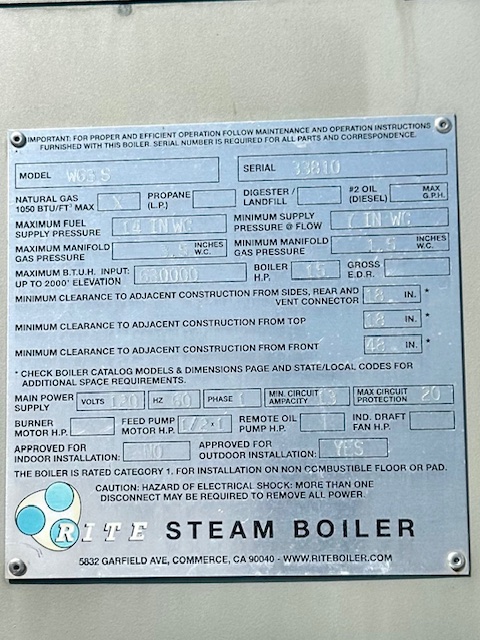

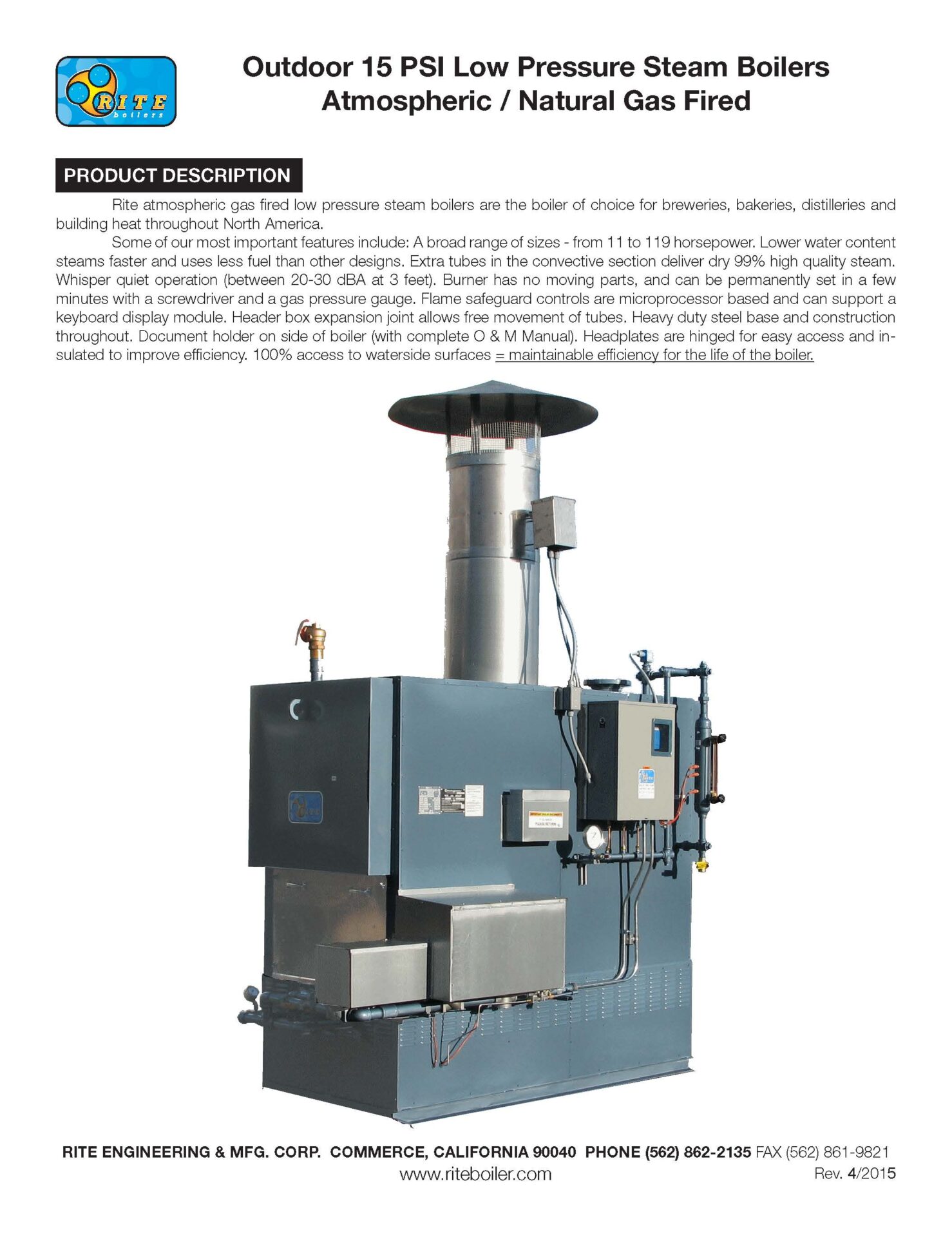

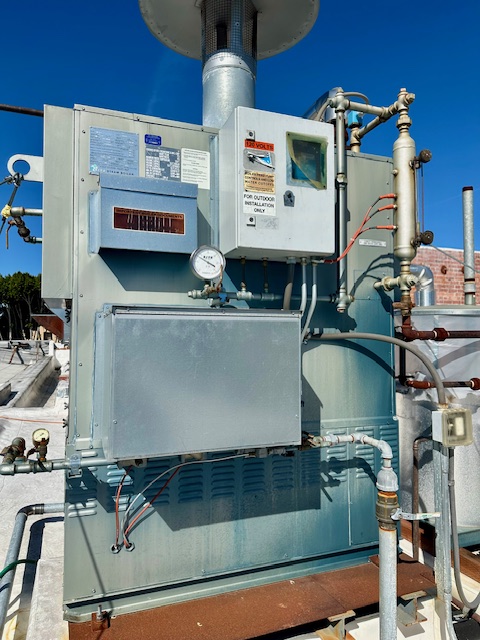

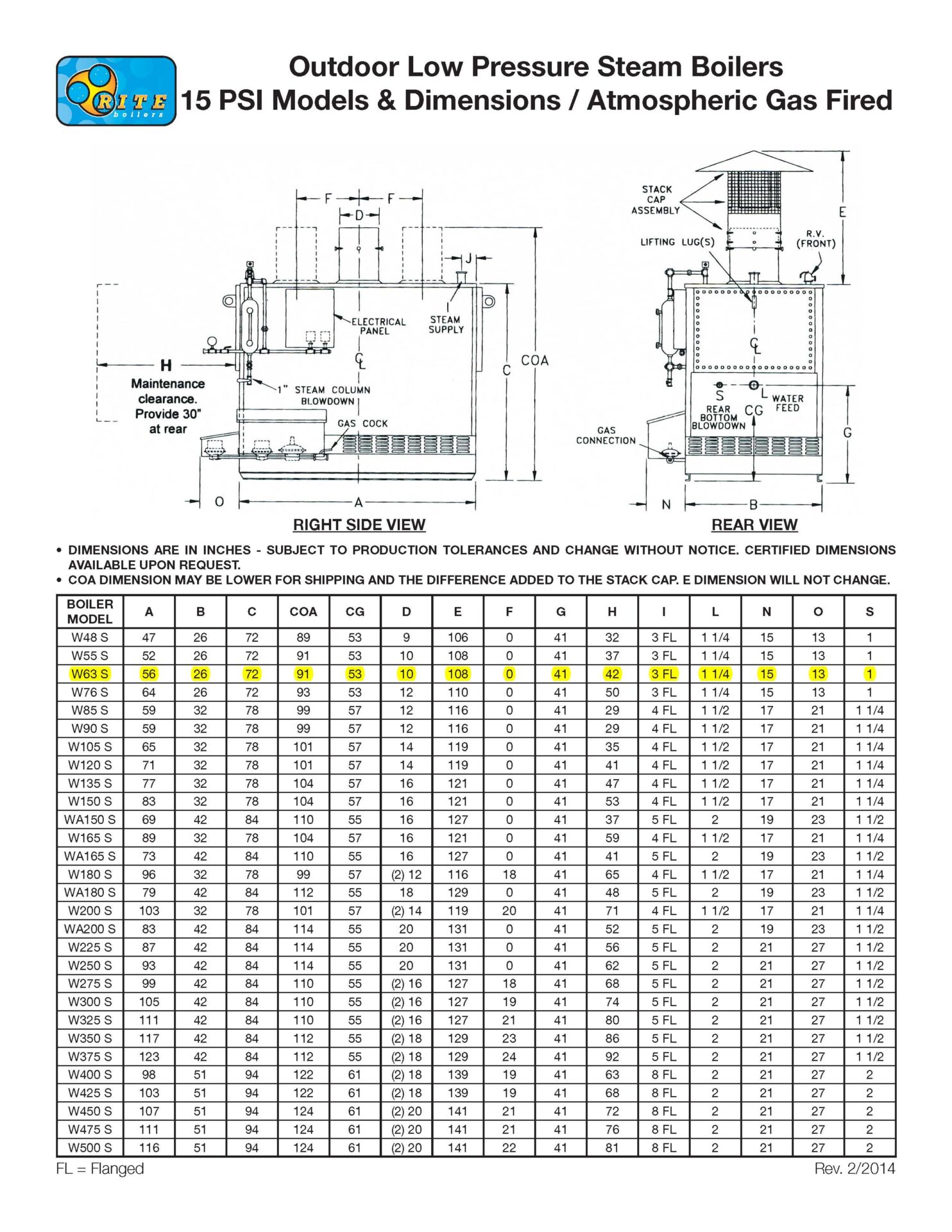

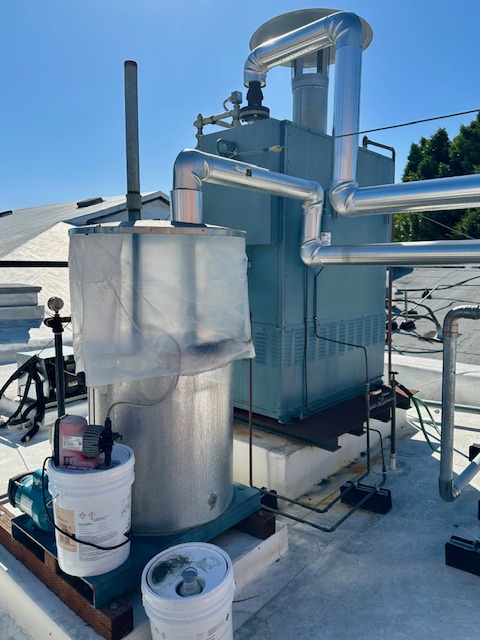

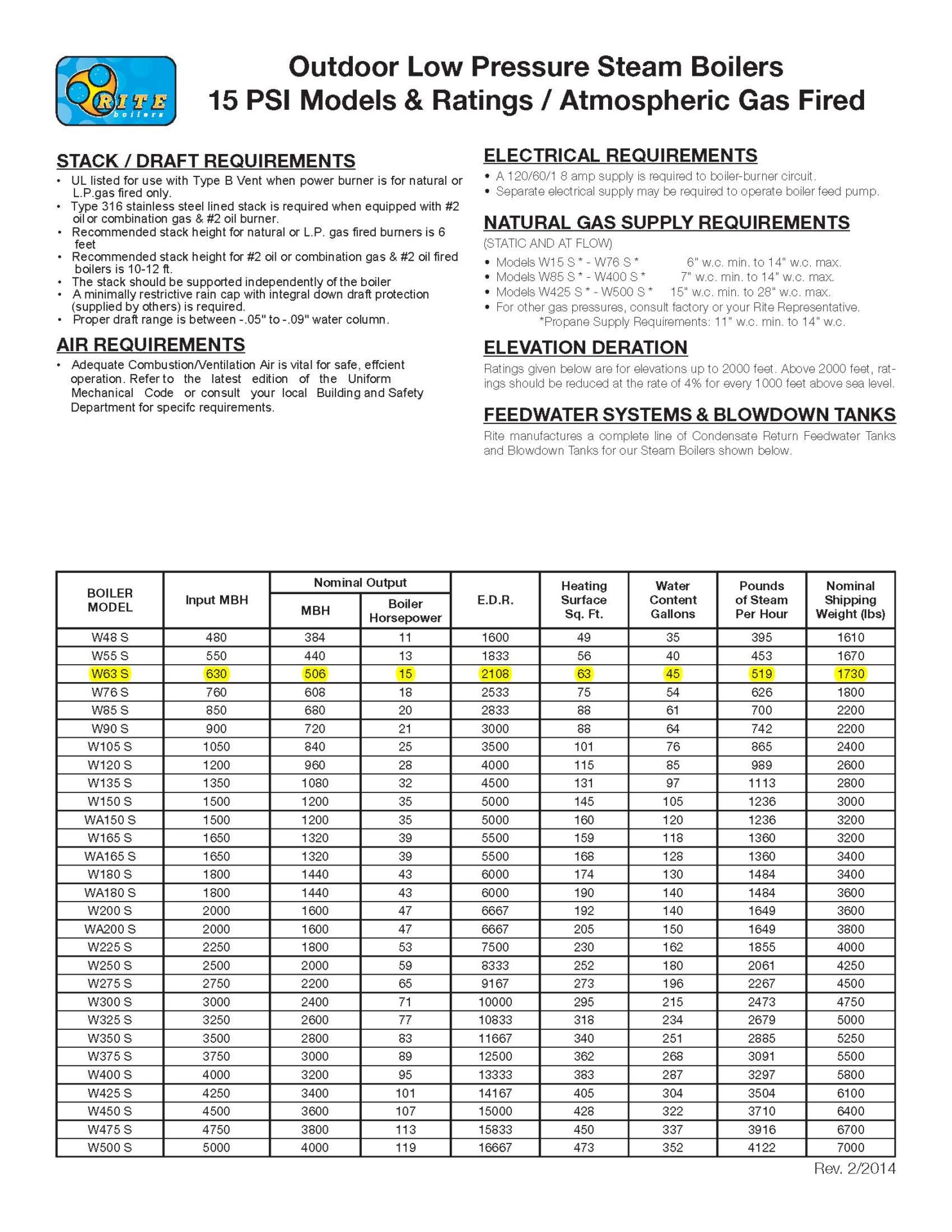

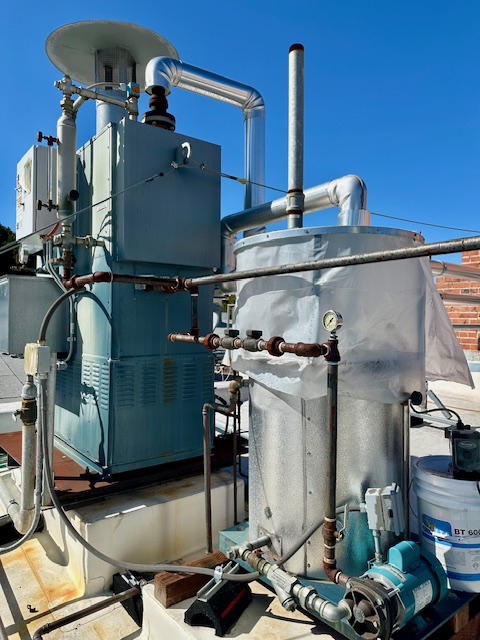

RITE OUTDOOR BOILER MODEL W63S LOW PRESS. STEAMATMOSPHERIC

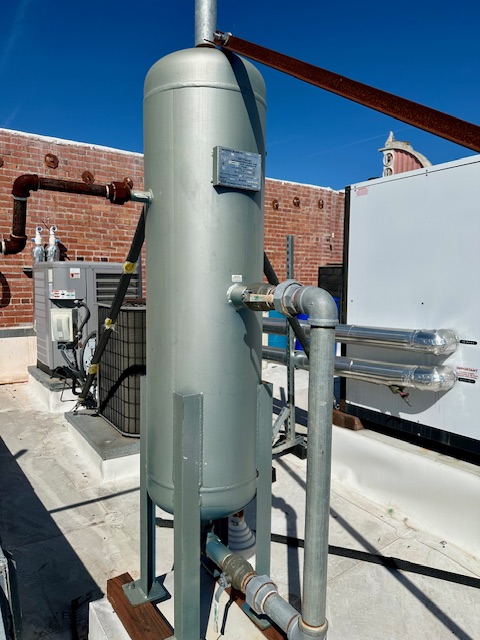

• Rite Condensate Return Feedwater System Model CR-50 – Outdoor

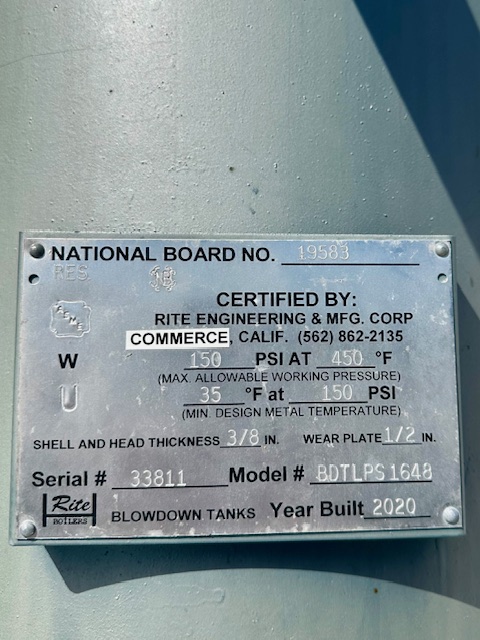

• Rite Blowdown Tank Model BDT-LPS1648
• United Brass Check Valve (2)
• Water Softener, Outdoor
• Chemical Feed System w/Sample Cooler
• Hoffman WC6-20B Condensate Transfer Pump
