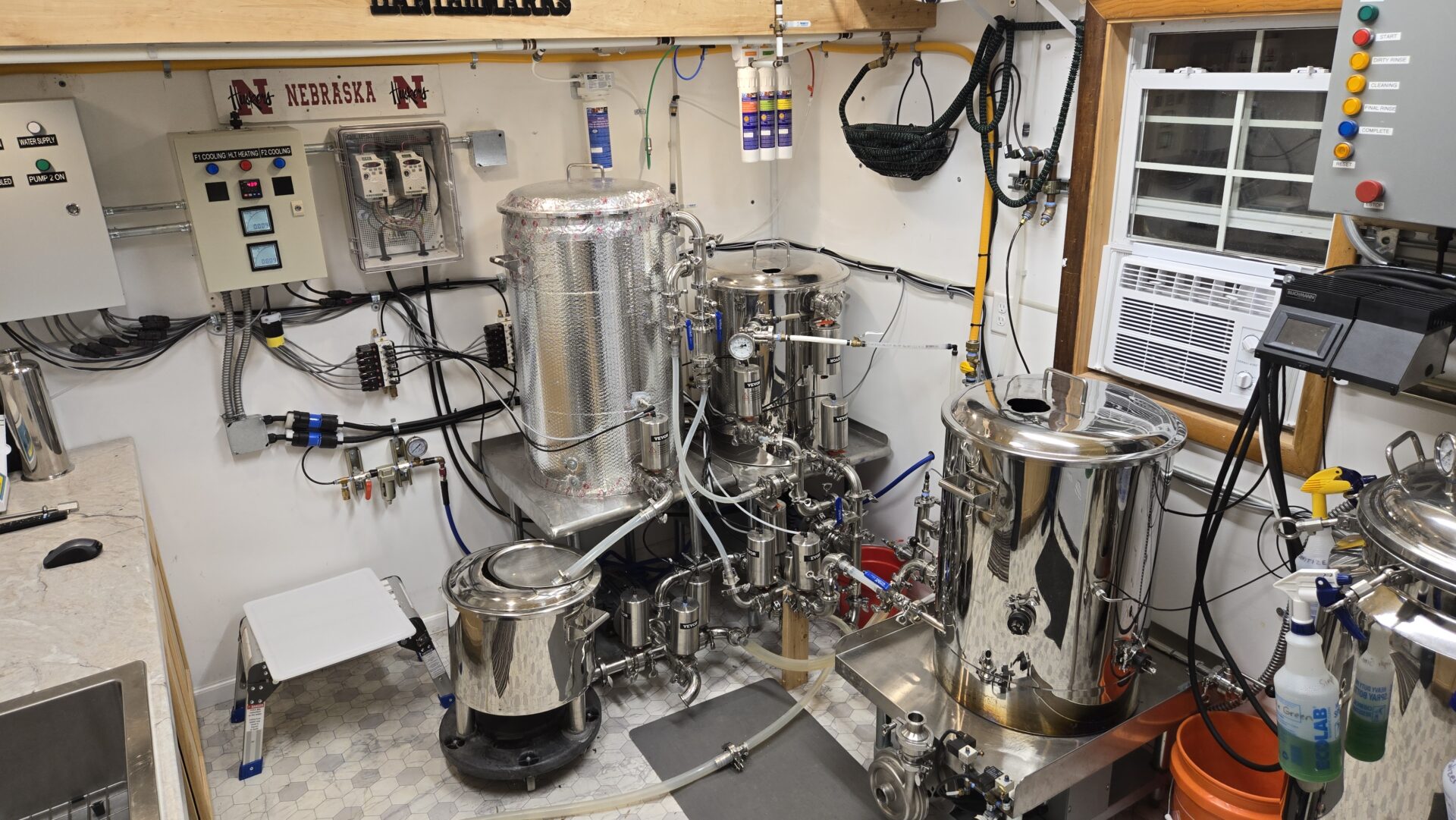

Up for sale is a professional All Electric 20 gallon brewing system designed for the commercial brewer or advanced homebrewer. State of the art controls and ease of use features make this pilot brewery the best on the market. Attention to detail and engineered to be easy to use is easily recognizable with how this brewing system is setup. Brewing any beer style is possible in a perfectly sized 15.5 gallon batch (1/2 bbl). The new owner of this brewing system will appreciate the time and effort put into it’s design and quality. Please see pictures and description below about the details. I am willing to help with shipping or delivery myself within 500 miles of zip 68379.

I am retiring from brewing after 15 years for health reasons and must part with this soon. This would be the perfect pilot system for recipe creation for commercial breweries, or just the most badass homebrewing setup you can get. I have around $24k invested into this system. I am willing to help with setup and assist with brewing your first batch with this system at your location. Thank you for looking, I appreciate your time and consideration.

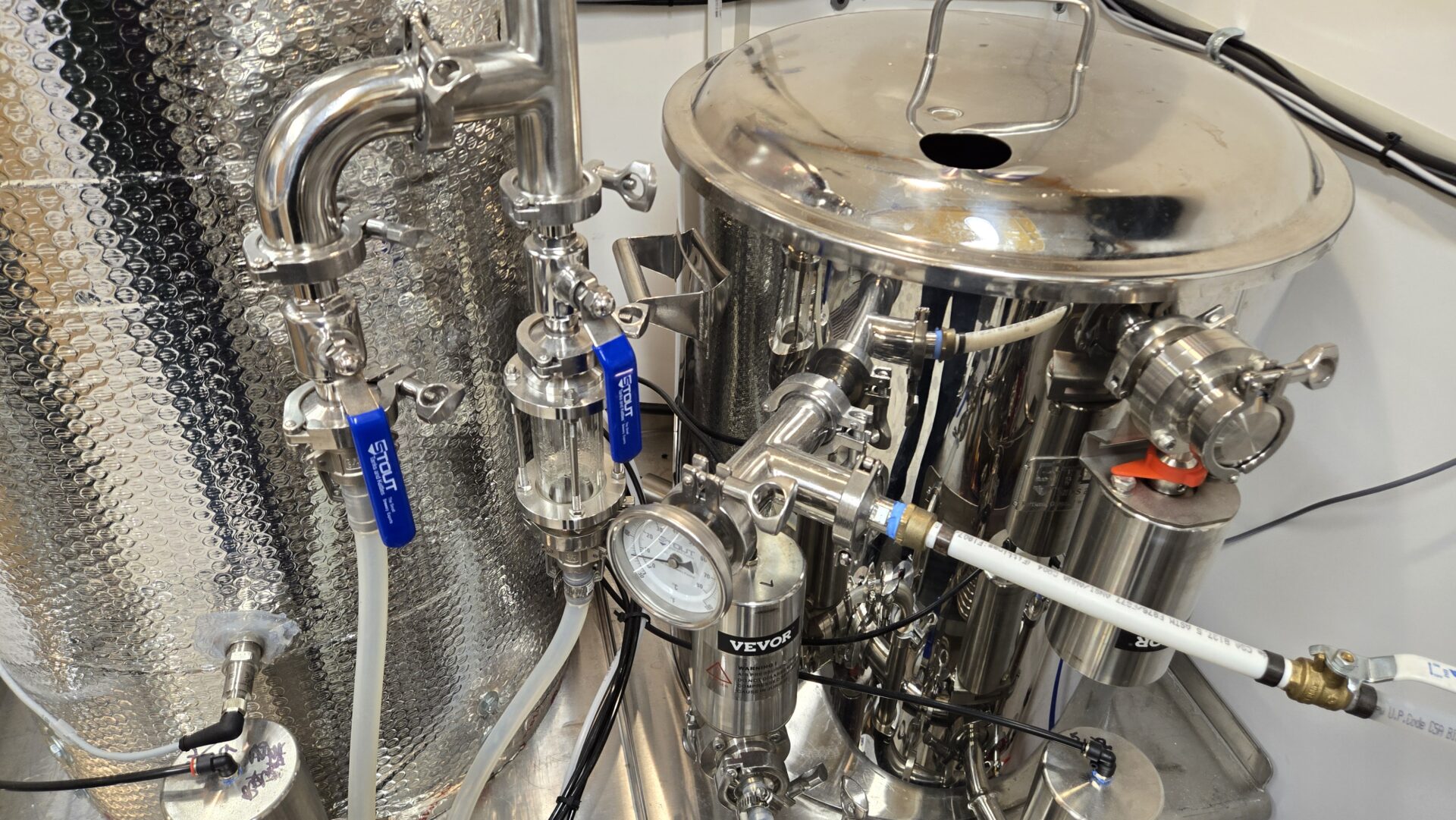

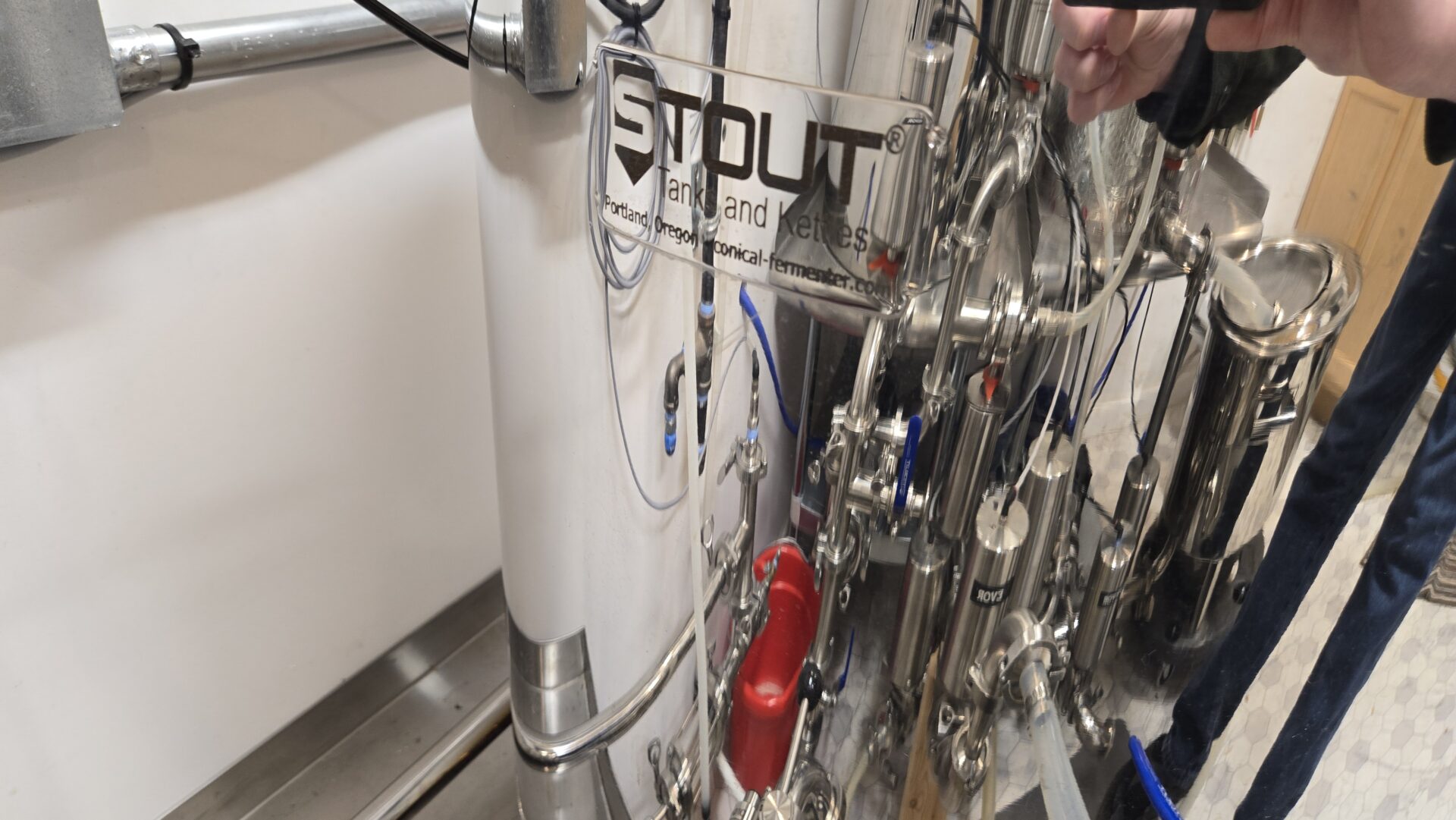

INCLUDED: Tanks are from Stout Tanks and Kettles

TANKS

32 Gallon Brew Kettle (Laser etched gallon markings)

30 Gallon HLT (Laser etched gallon markings)

38 Gallon Insulated Mash Tun

14 Gallon Wort Grant

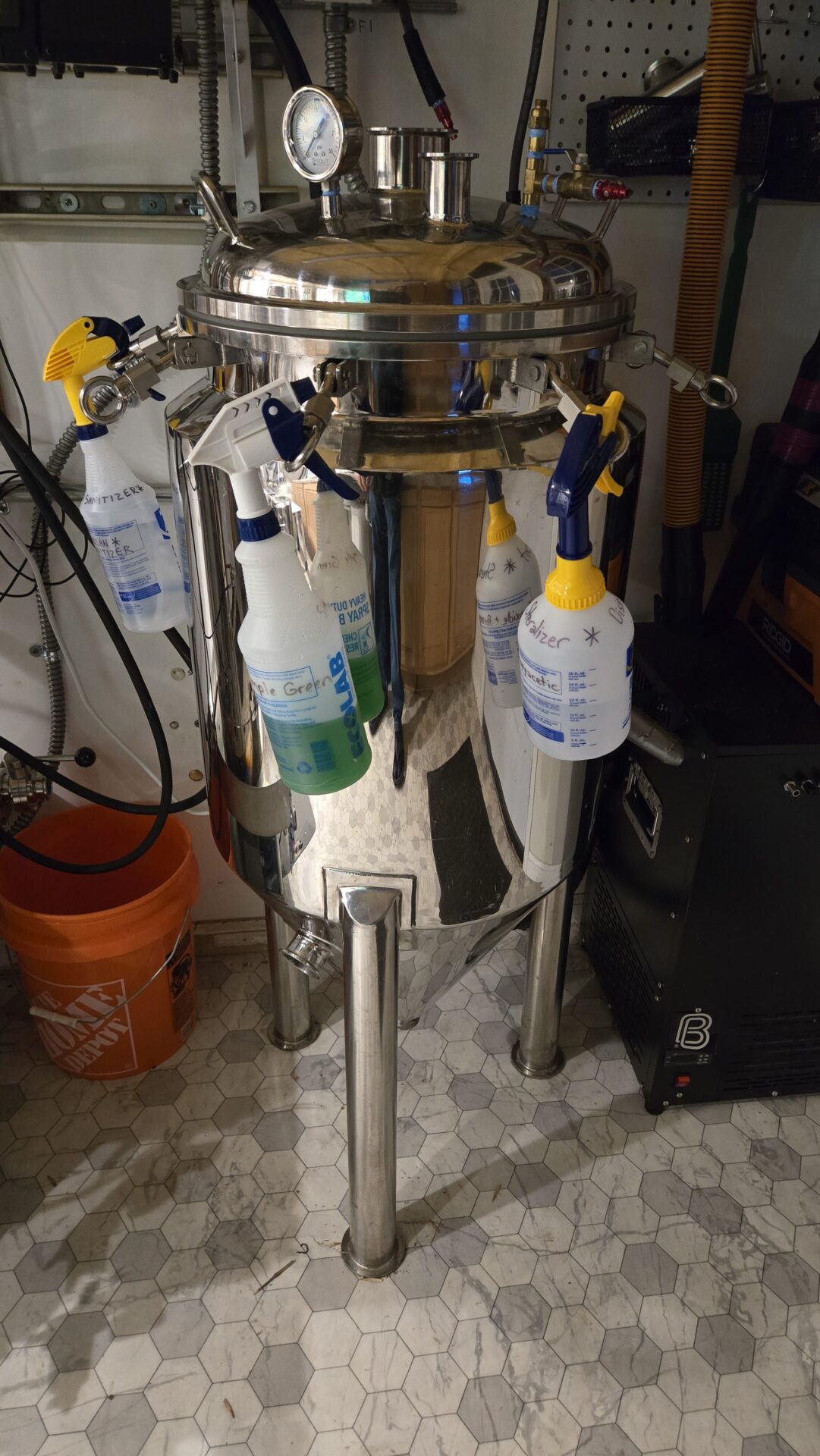

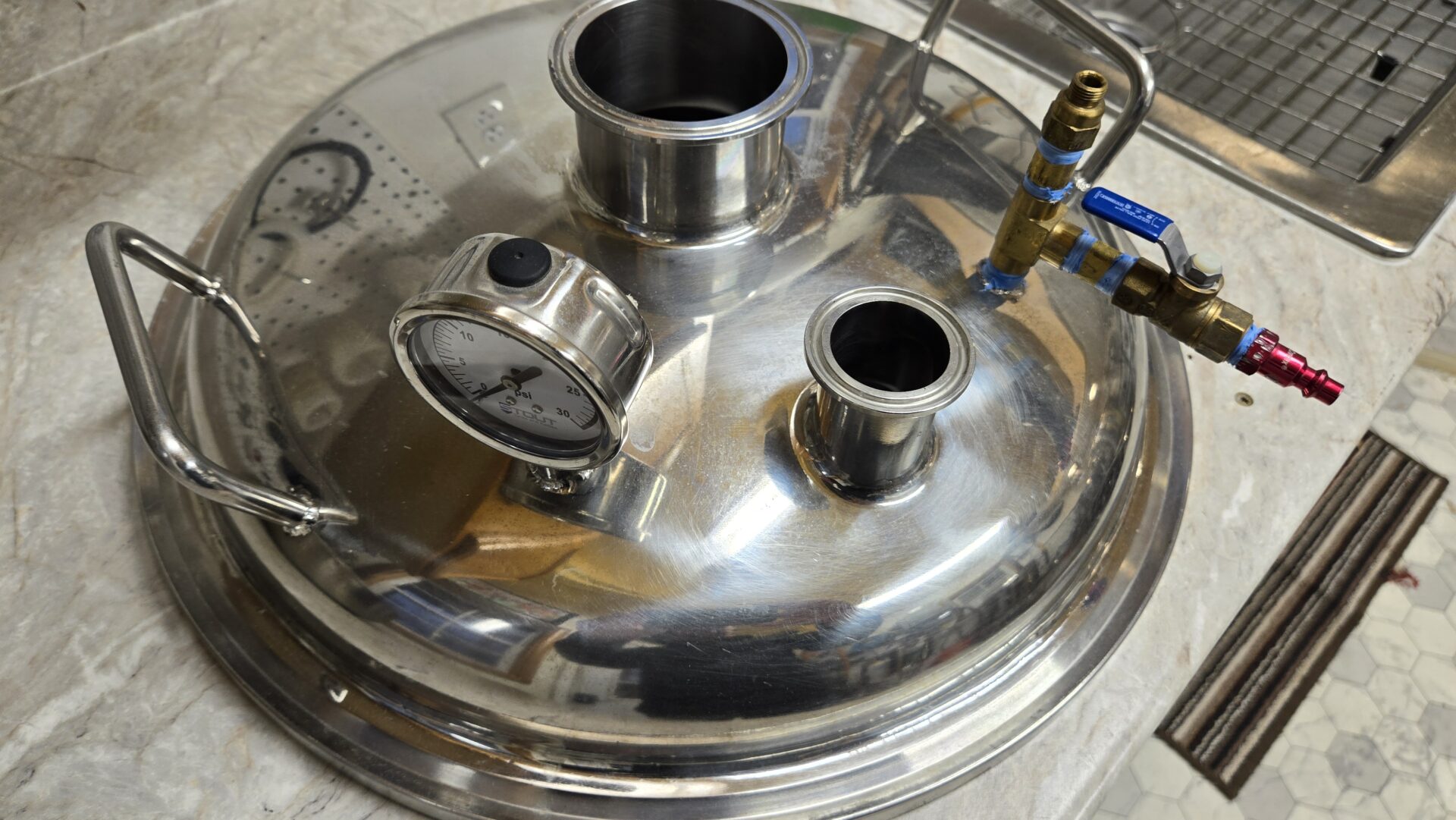

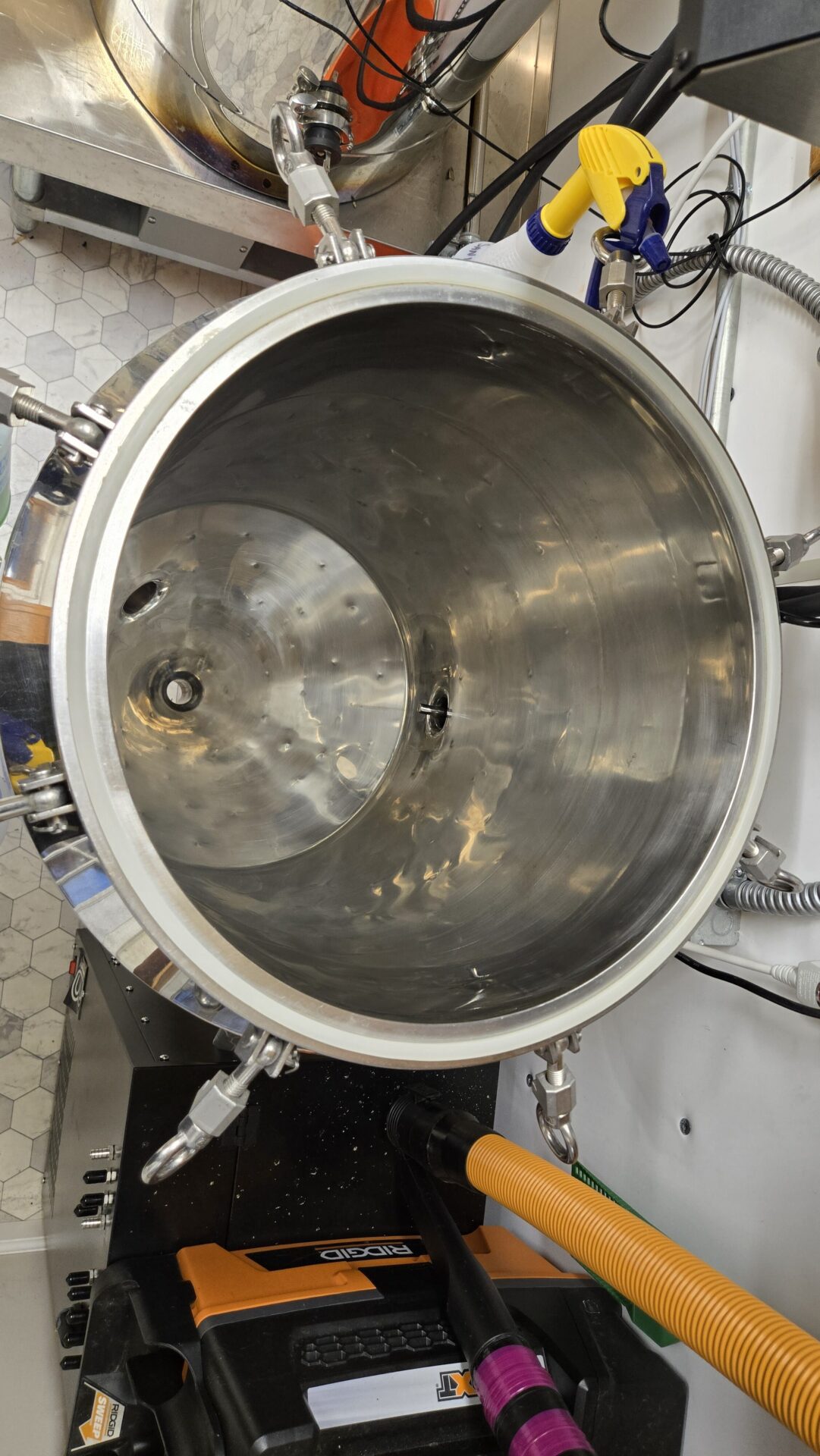

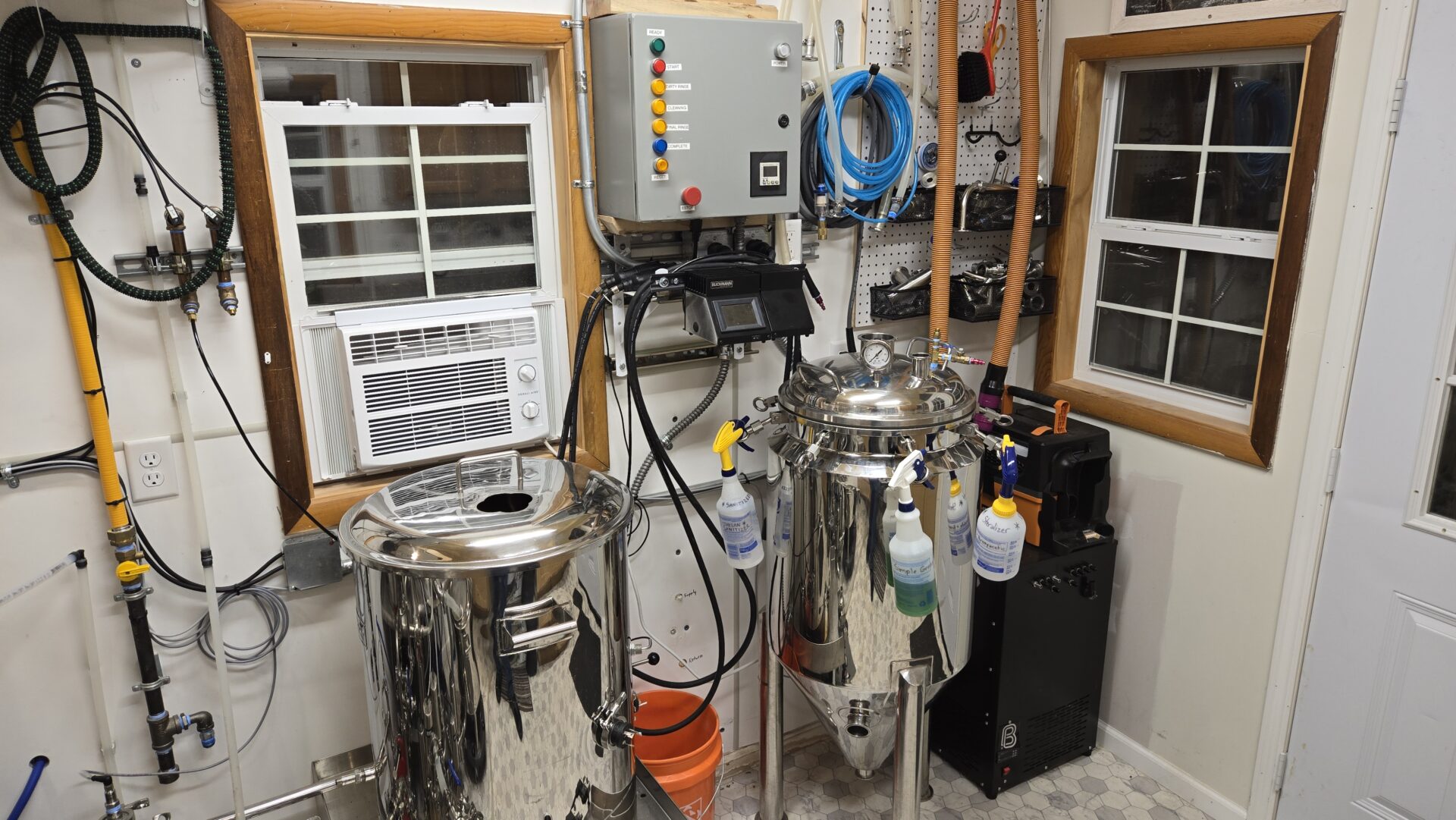

20 Gallon Jacketed/Insulated Cone bottom fermenters (2 are included)

PUMPS:

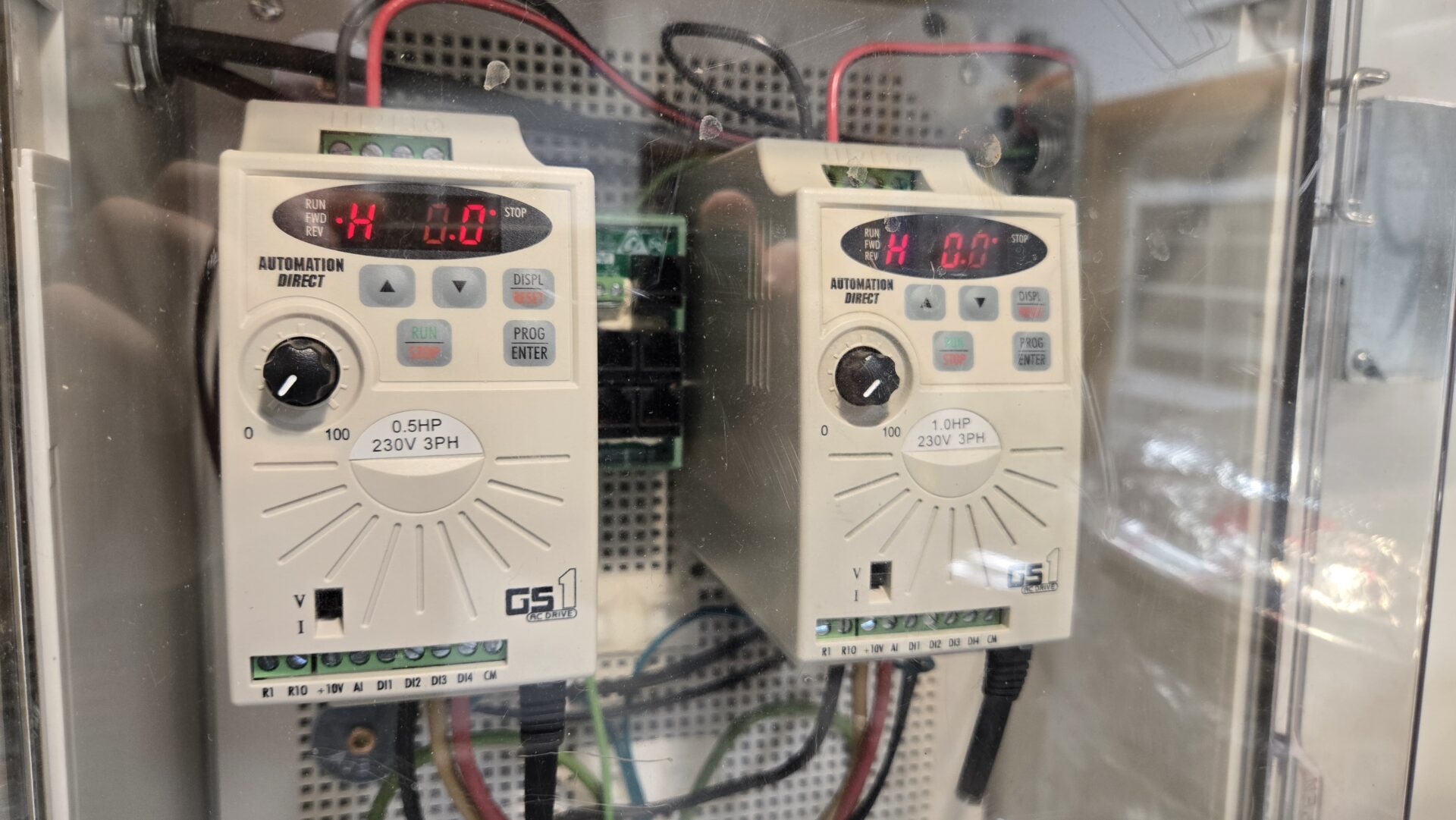

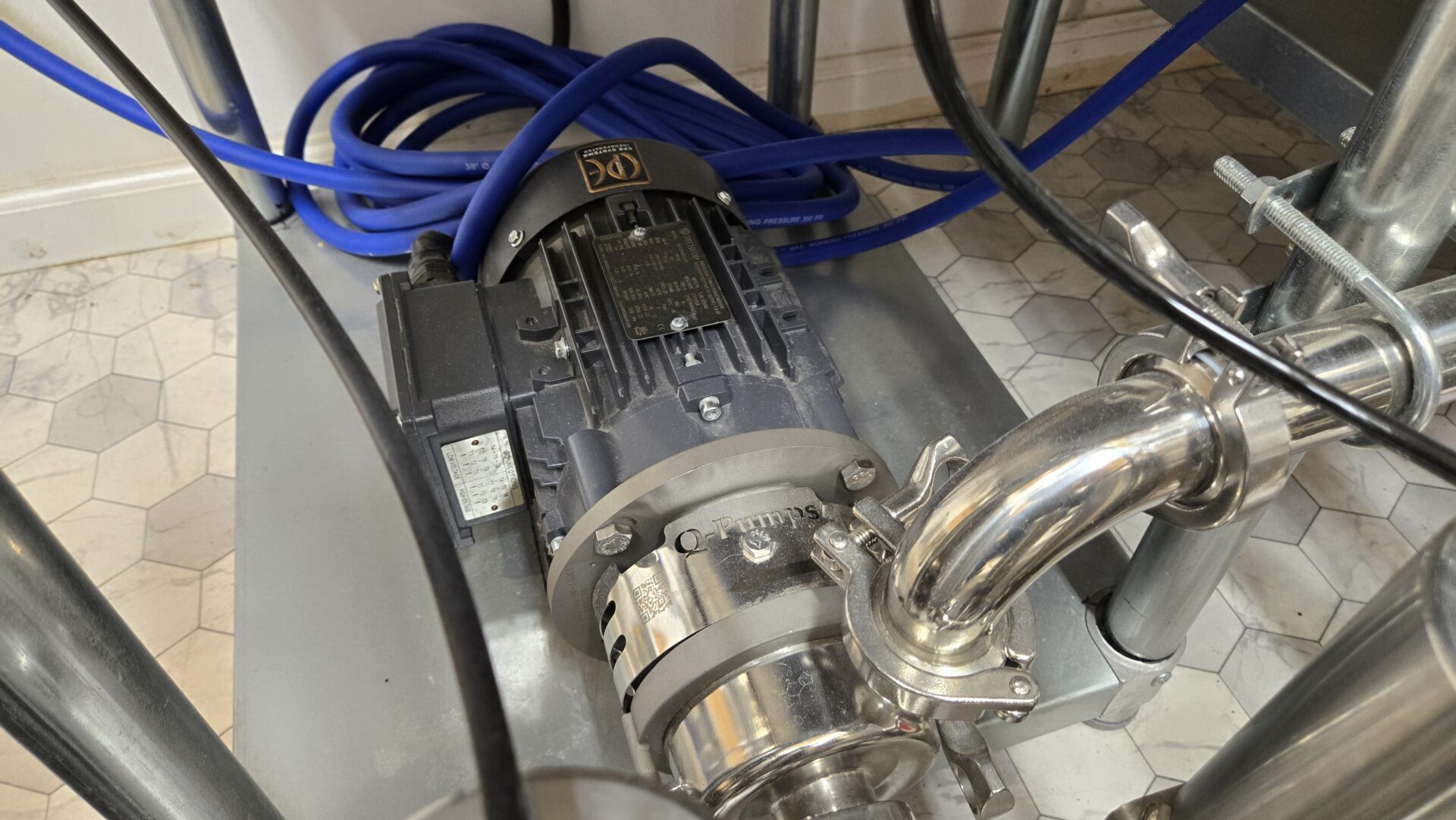

(2) C114MD Centrifugal Pumps With TEFC Motor FROM CPE SYSTEMS.  1 1/2″ inlet/outlet tri clamp connections. Pumps are controlled with VFD drives for speed from control system.

(1) Spare pump included (not plumbed into system).

CHILLER:

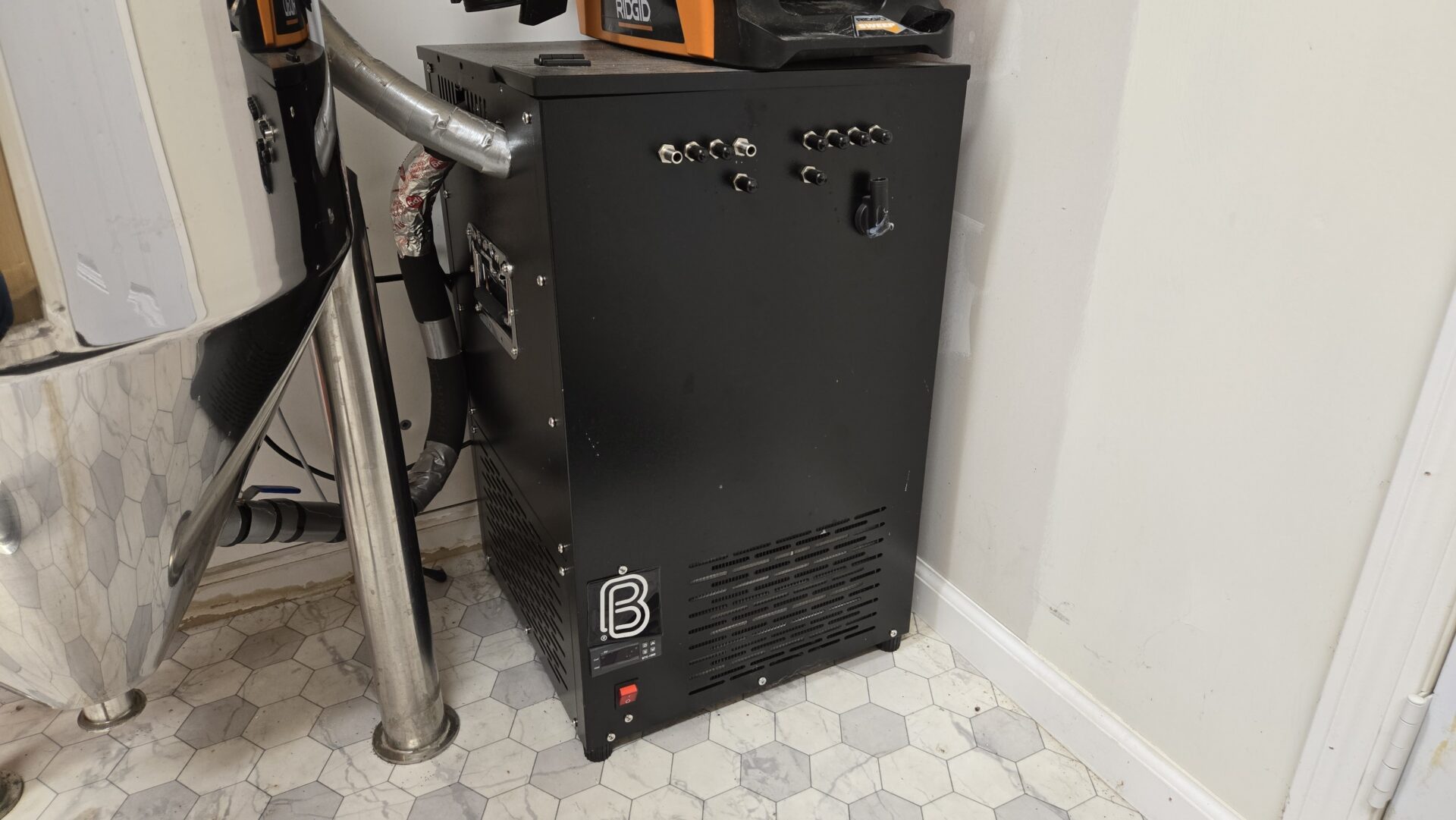

BrewBuilt® IceMaster 100 | Glycol Chiller | Bulkhead Sets for 5 Fermenters | 2600btu | 110V | 8 Gal. Tank Capacity

Stainless Steel heat exchanger for wort cooling after boil. Counterflow tap water cools wort down to pitching temperature. 15 minute knock out time.

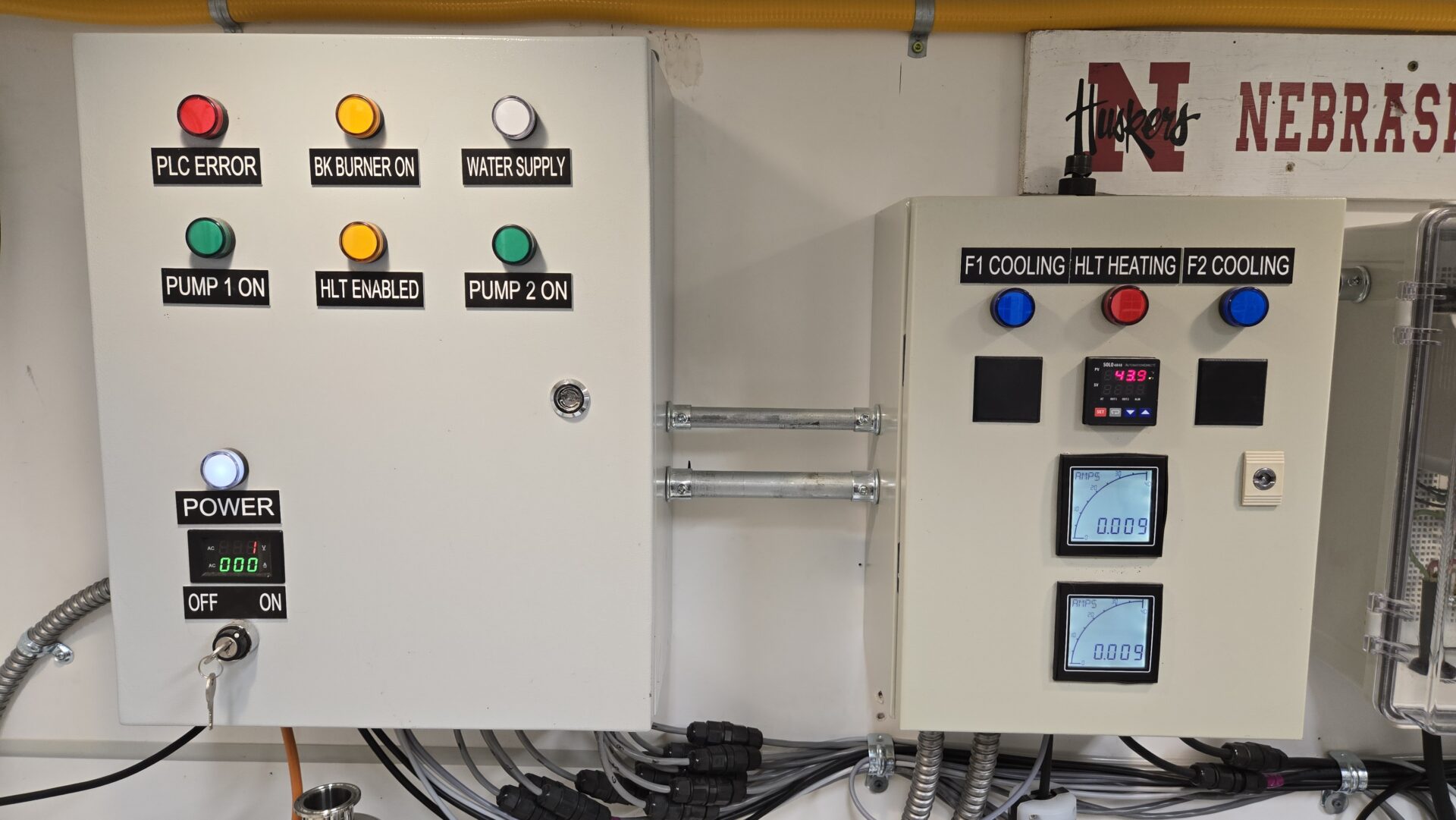

CONTROLS:

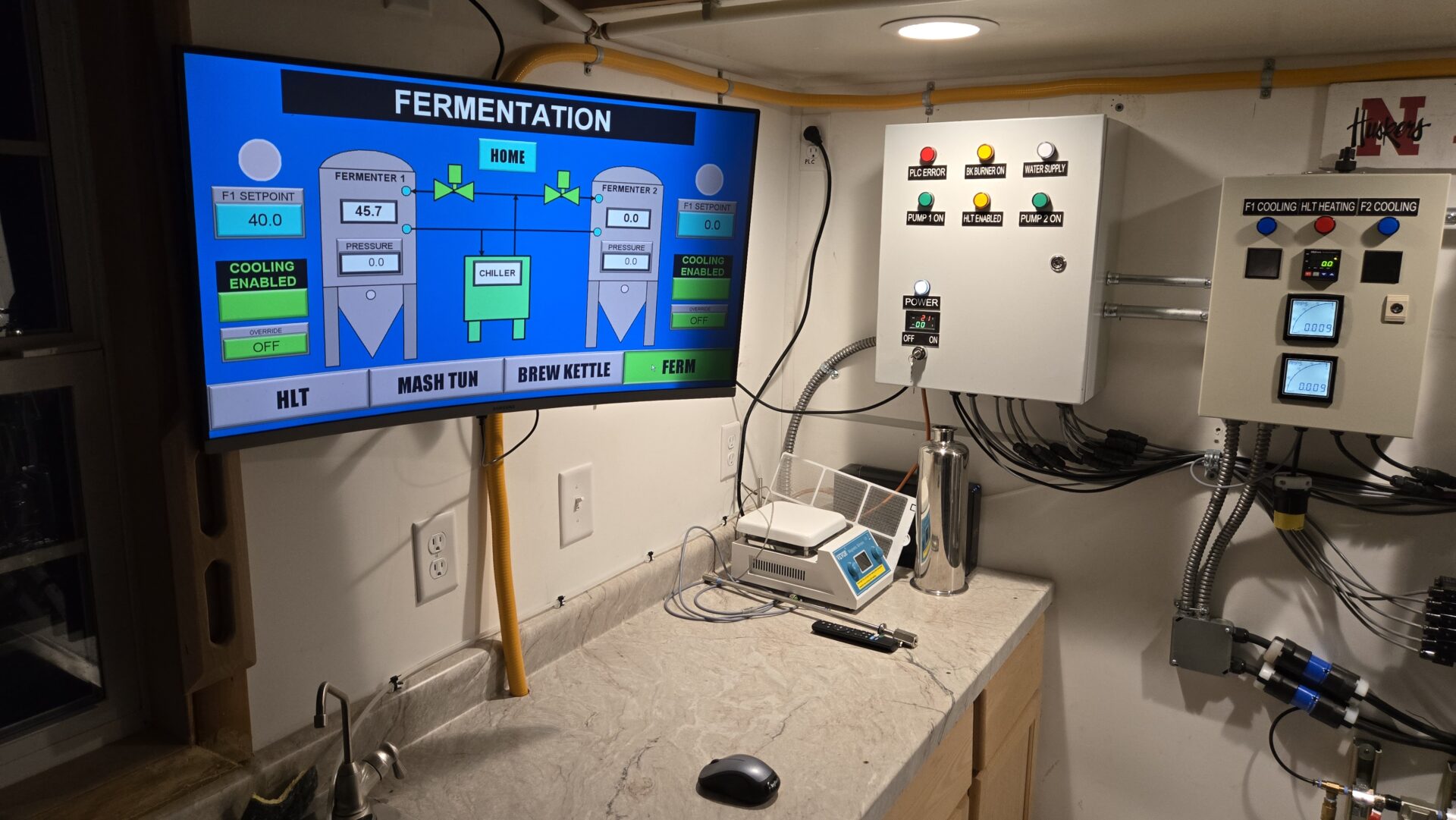

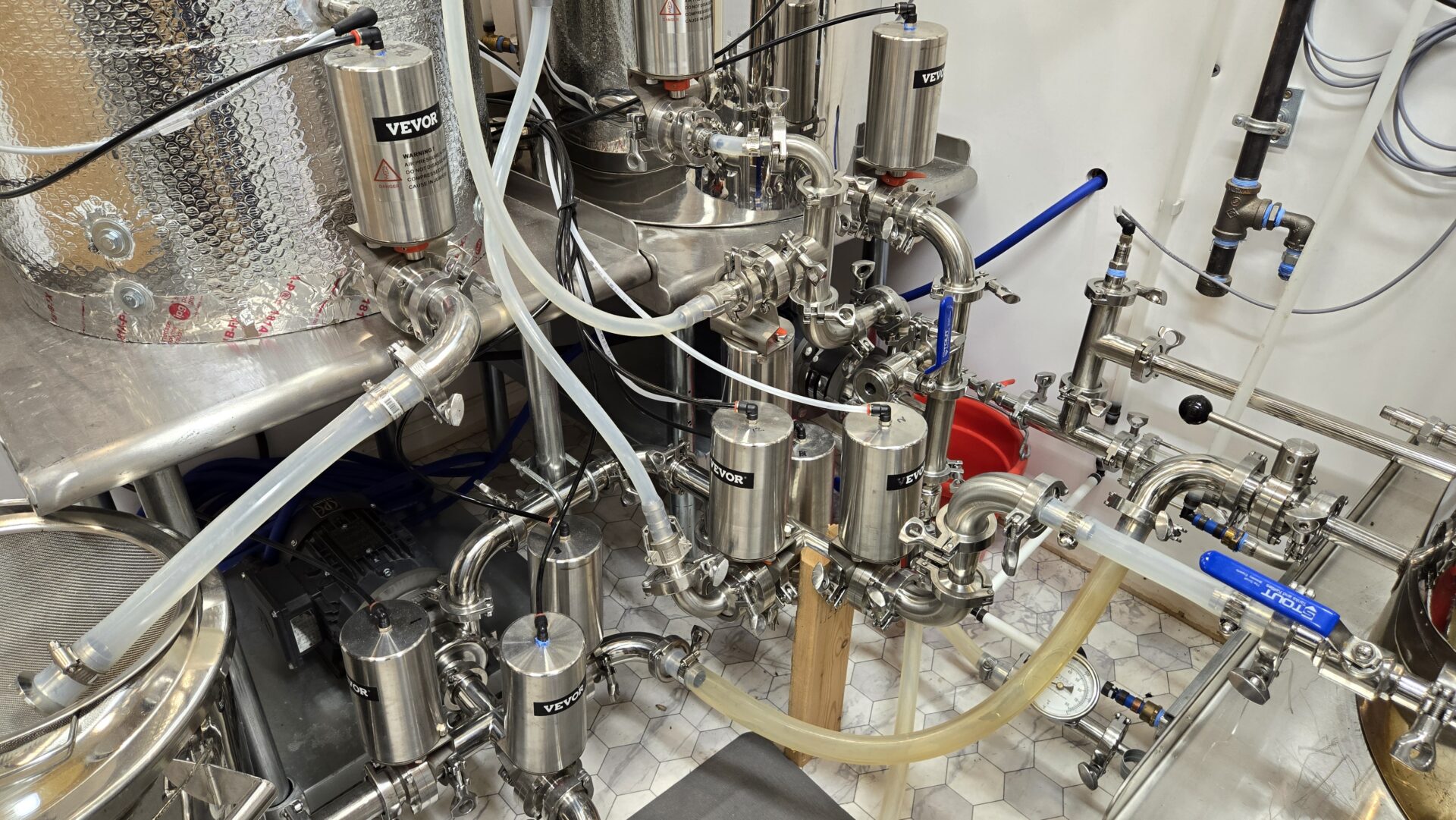

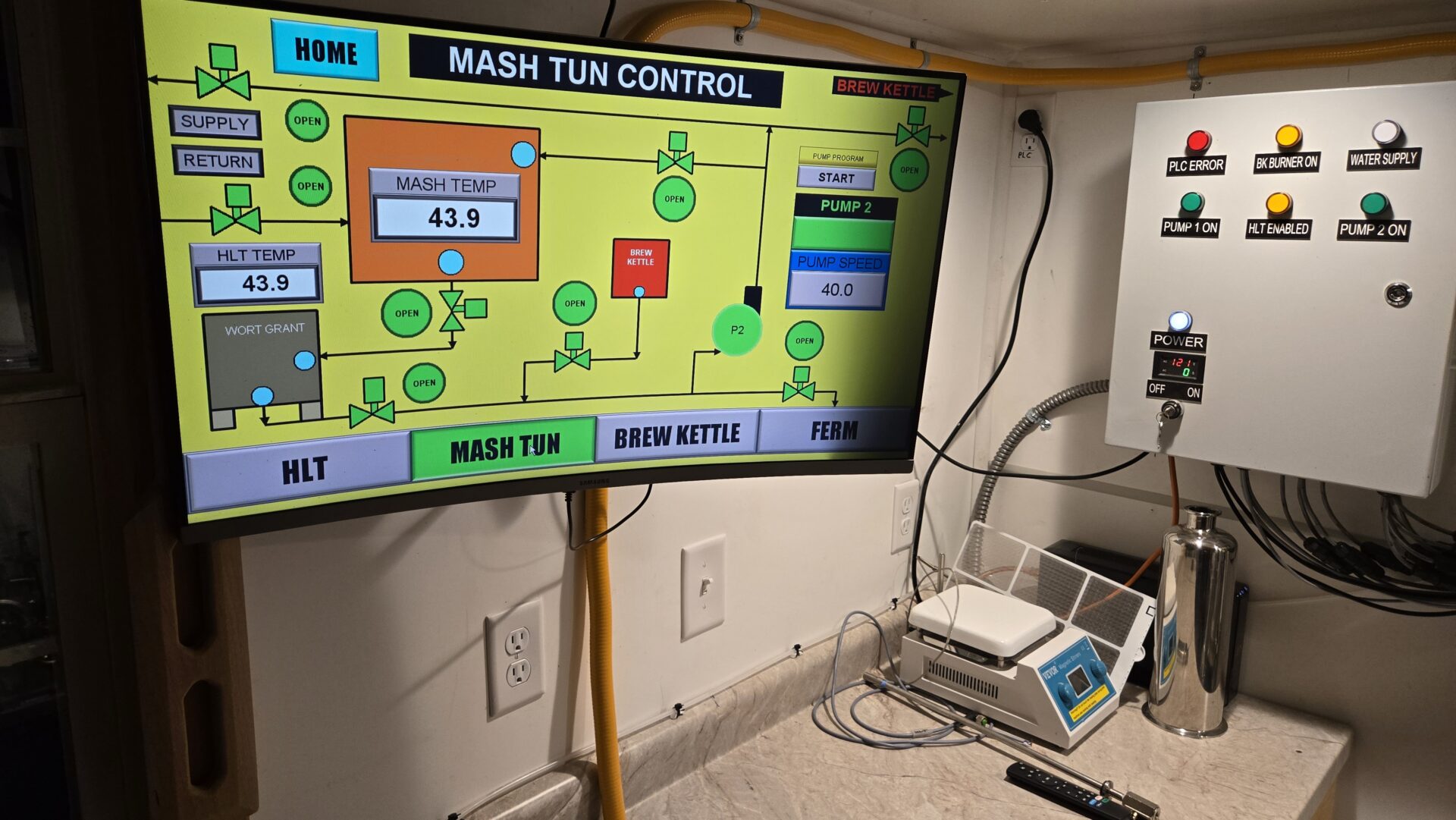

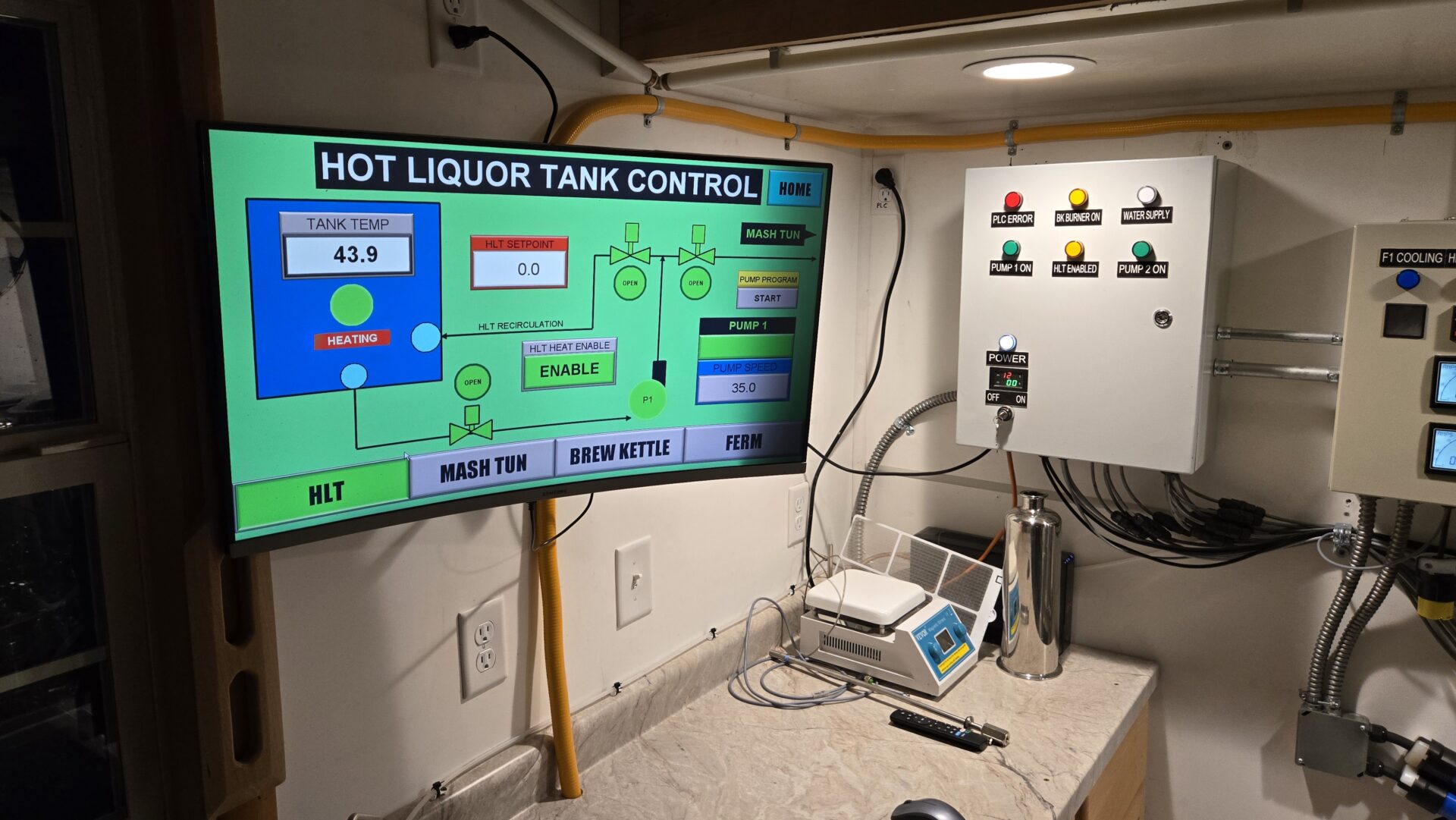

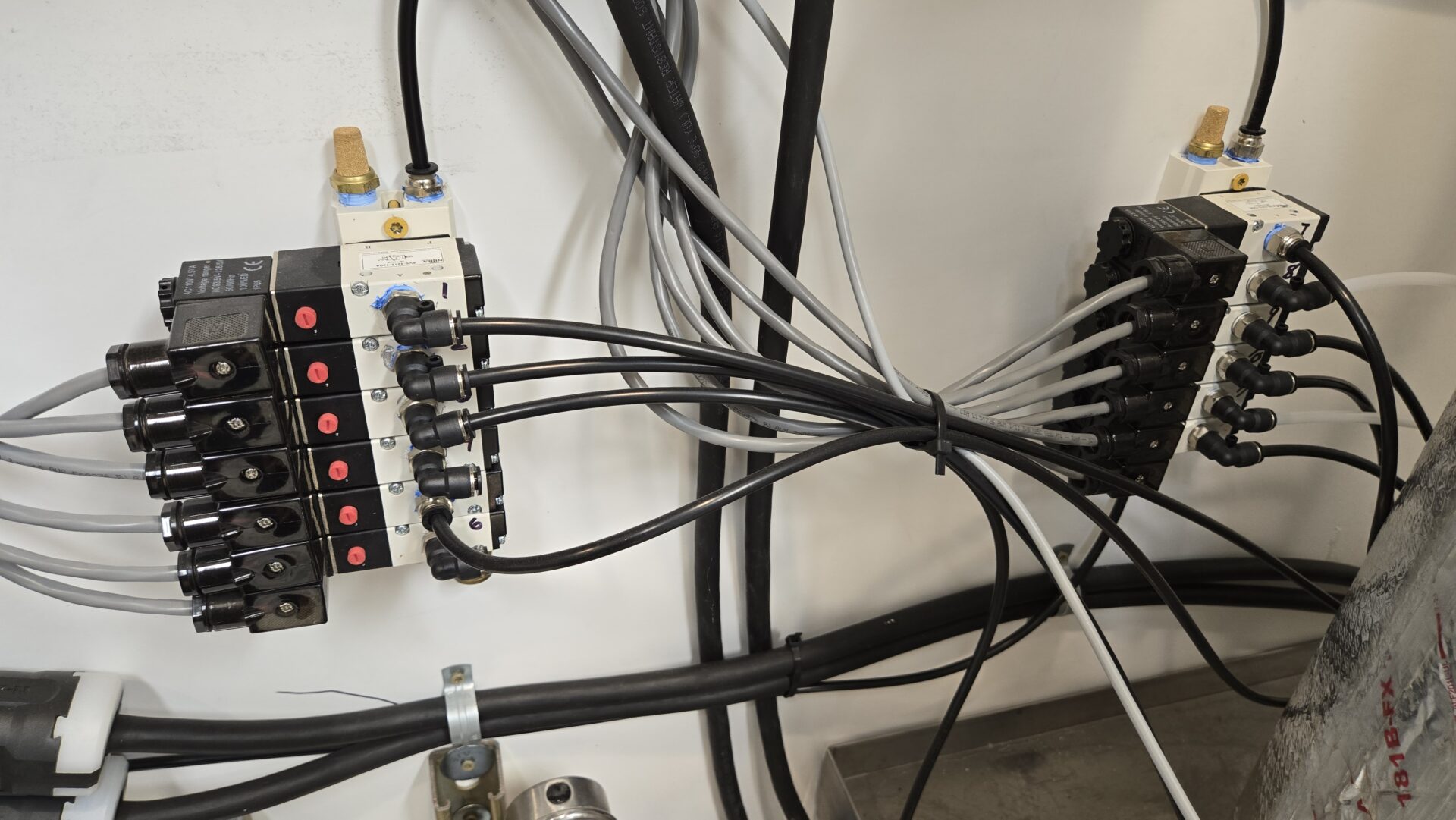

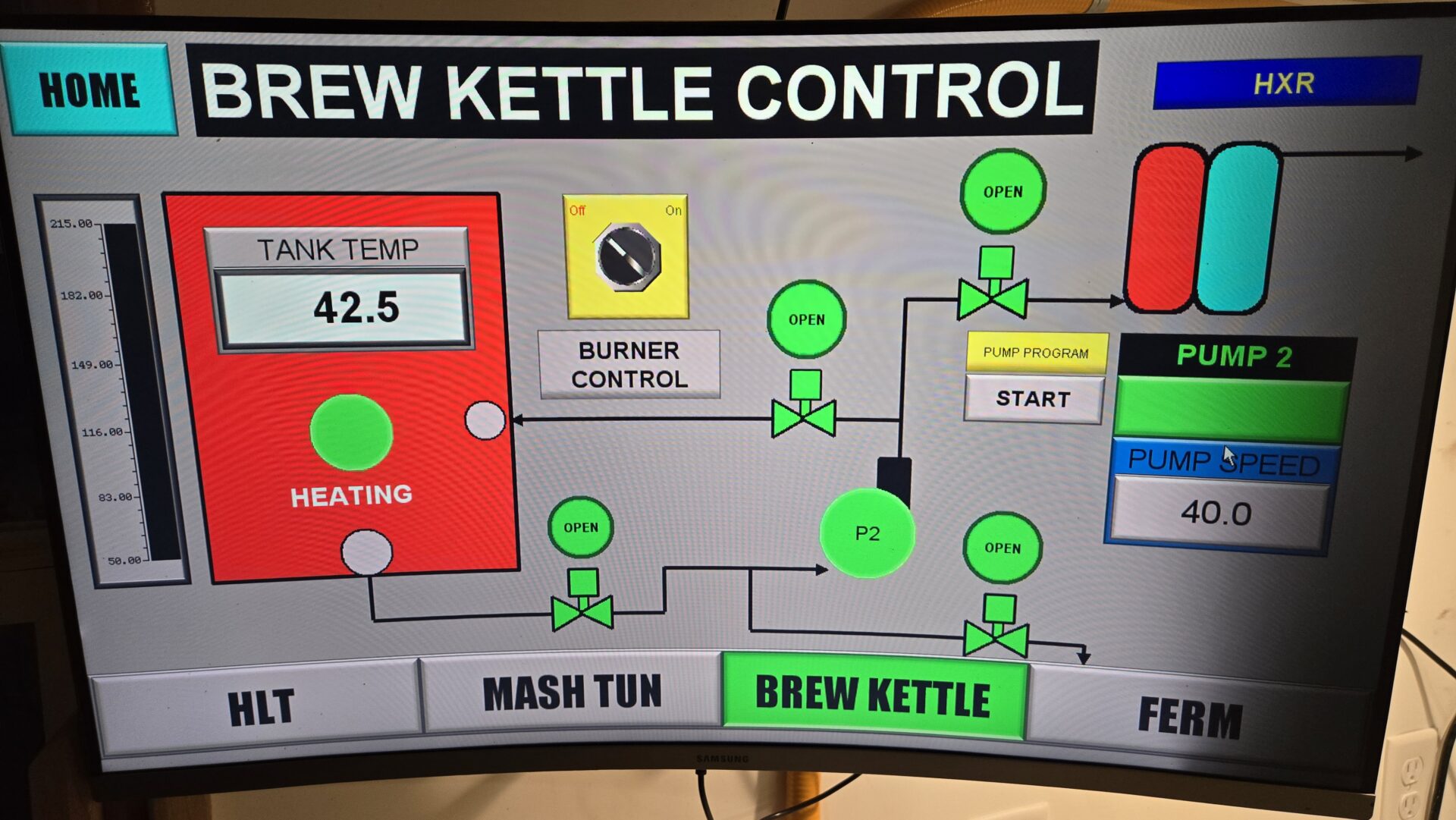

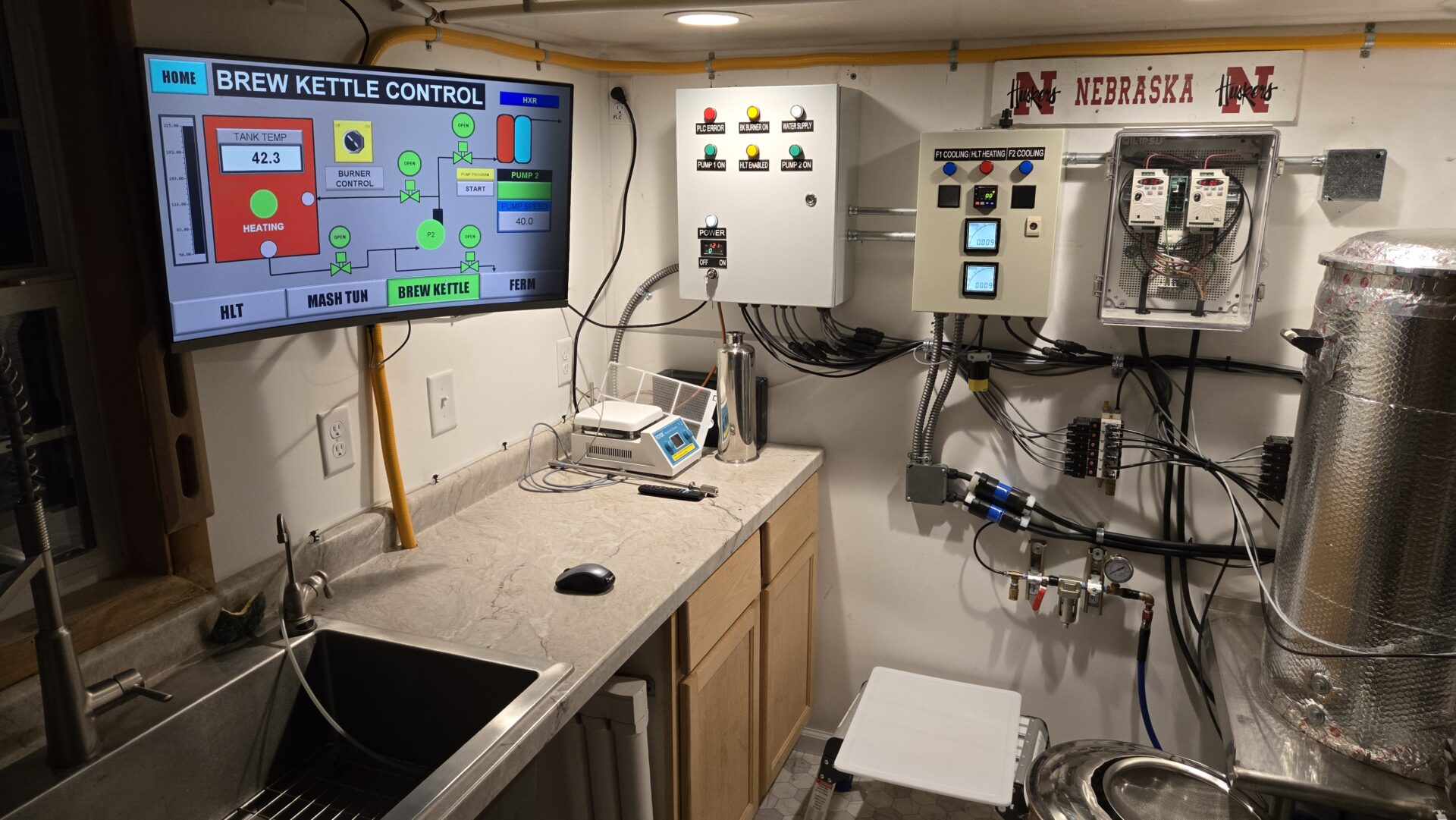

Point and Click pneumatic valve control, pump speed control, and fermentation temp control is all accessed via the human machine interface panel. This is done on a 32′ curved computer monitor, see pictures. A supply of 90 PSI air from an air compressor is required for valve control. NOT Included. You can get a small air compressor from Home depot for <$300 that will provide the air required to operate all the valves.

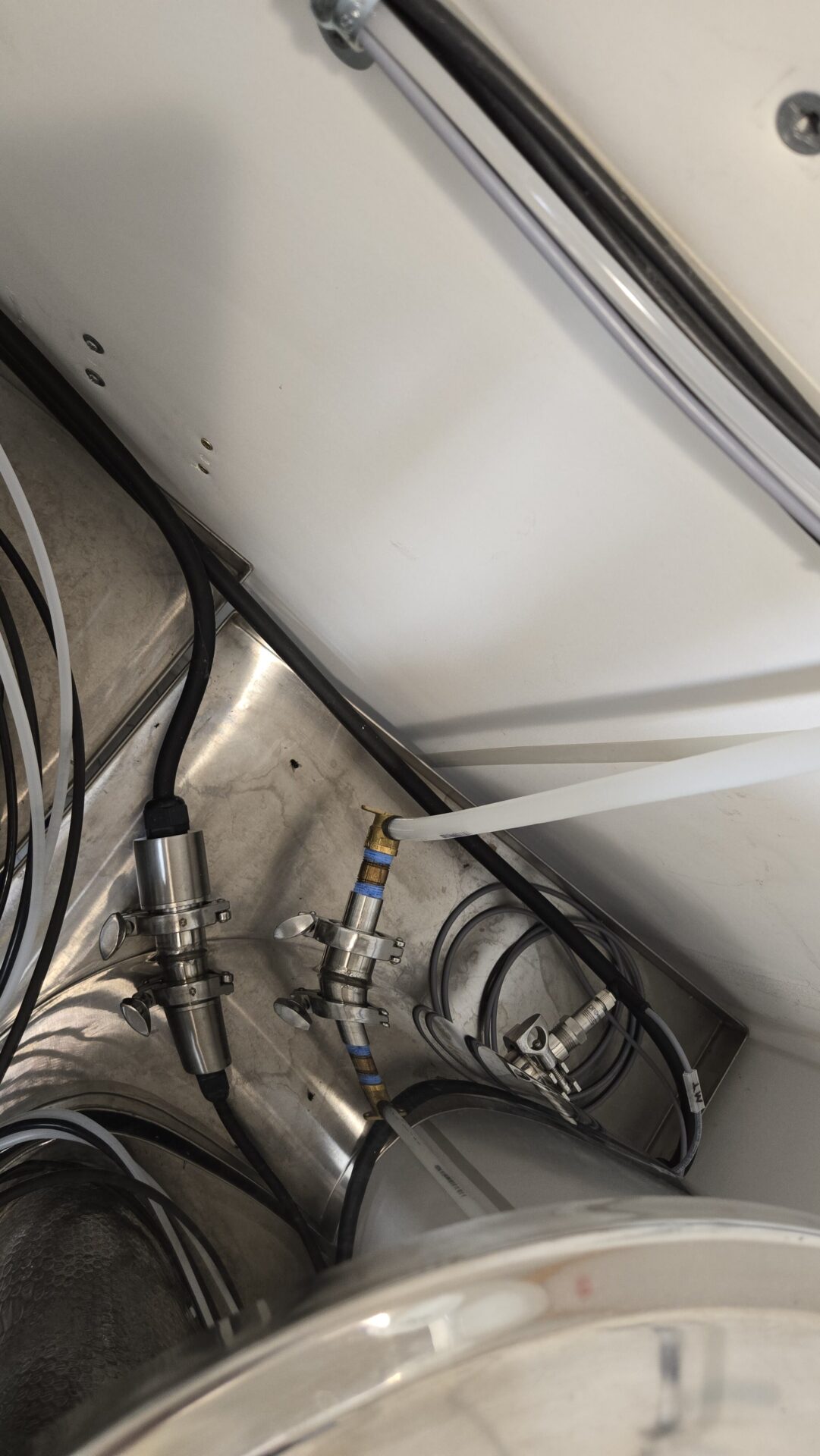

6 thermocouple temperature probes back to control system.

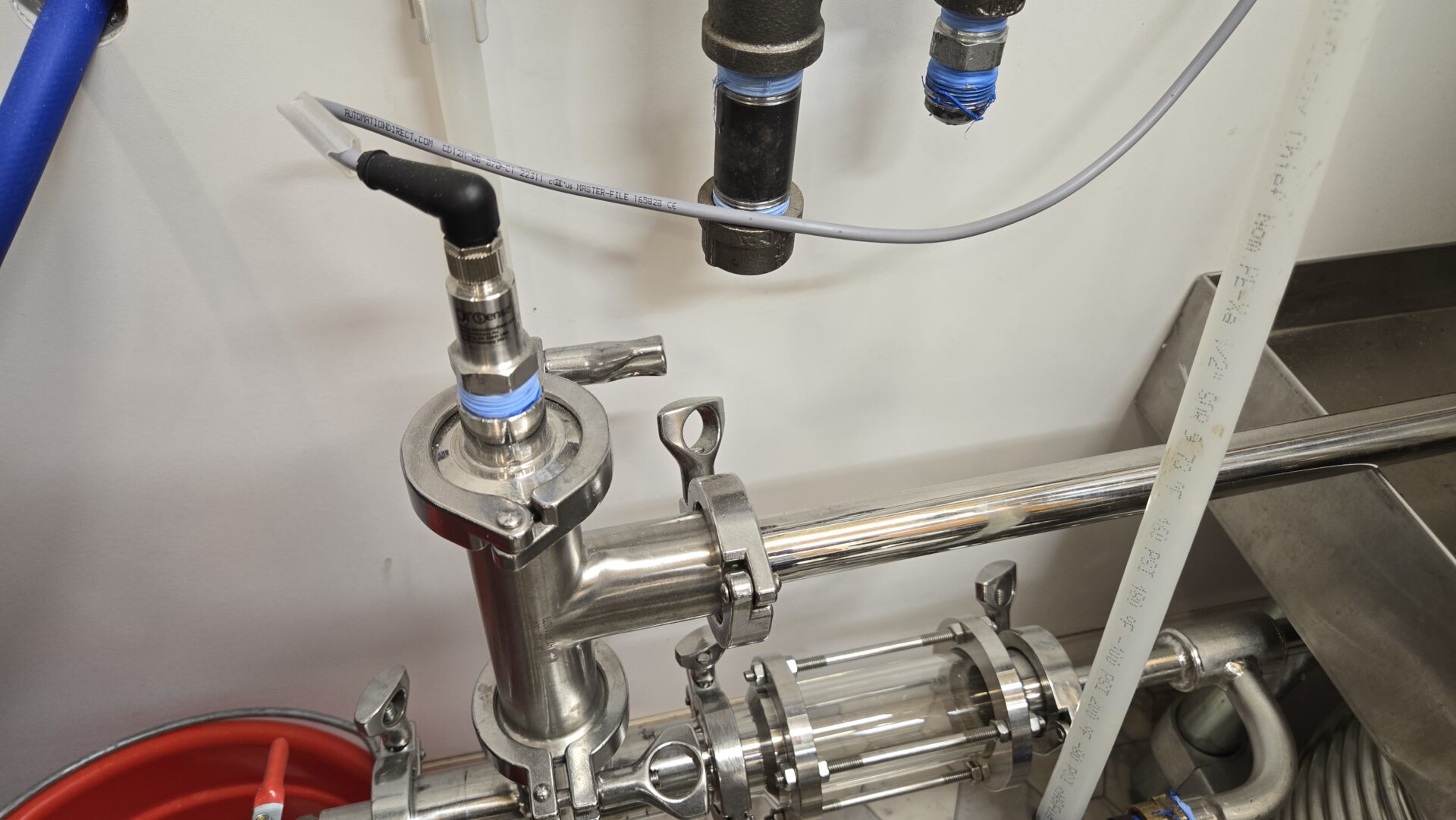

Pressure monitored on fermenters with pressure transducers back to control system.

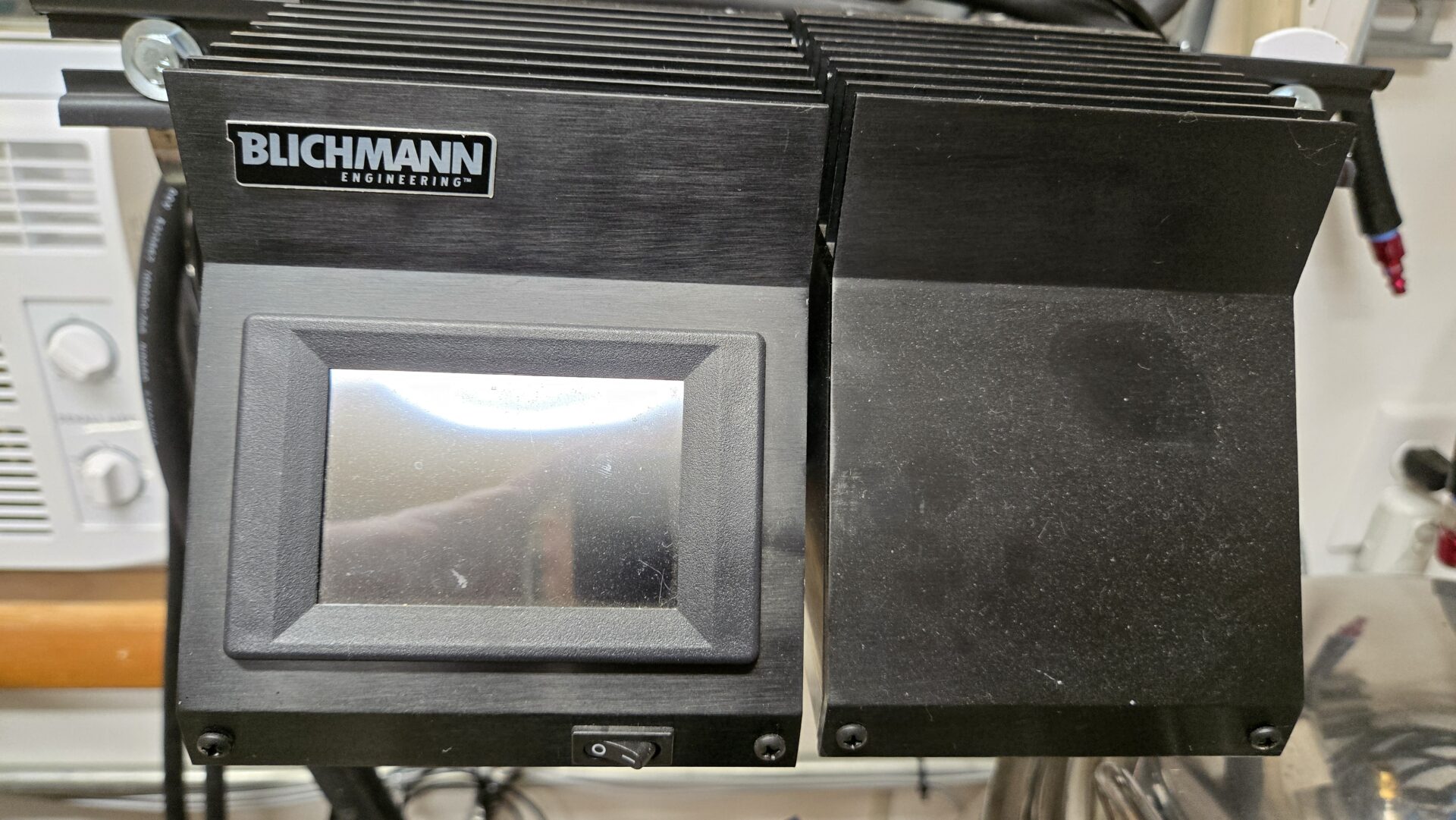

Boil Controlled by BLICMANN ENGINEERING

120V BrewCommander™ Touchscreen Brewhouse Controller
Model Number: aBrewCommander-120V

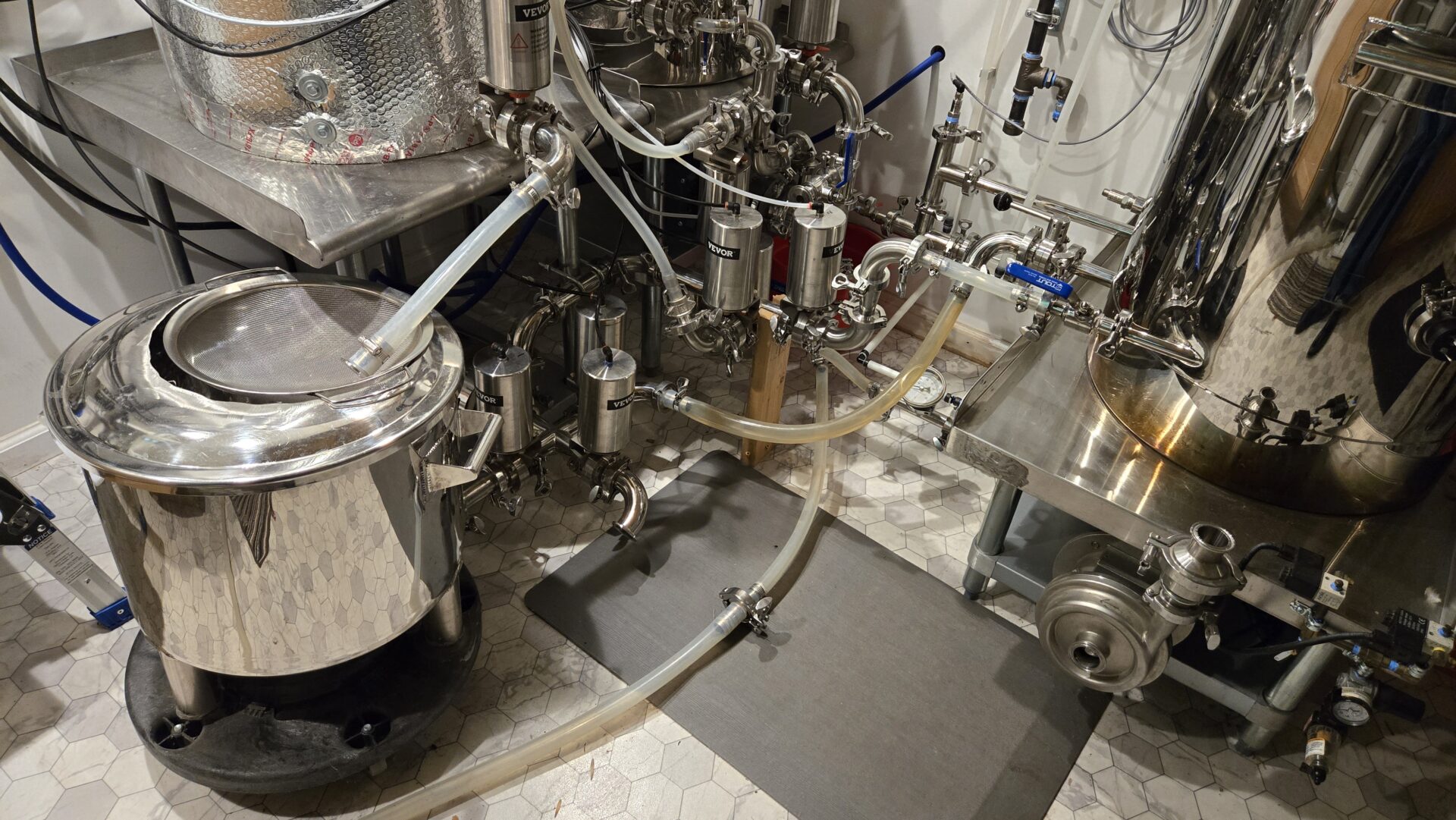

PLUMBING:

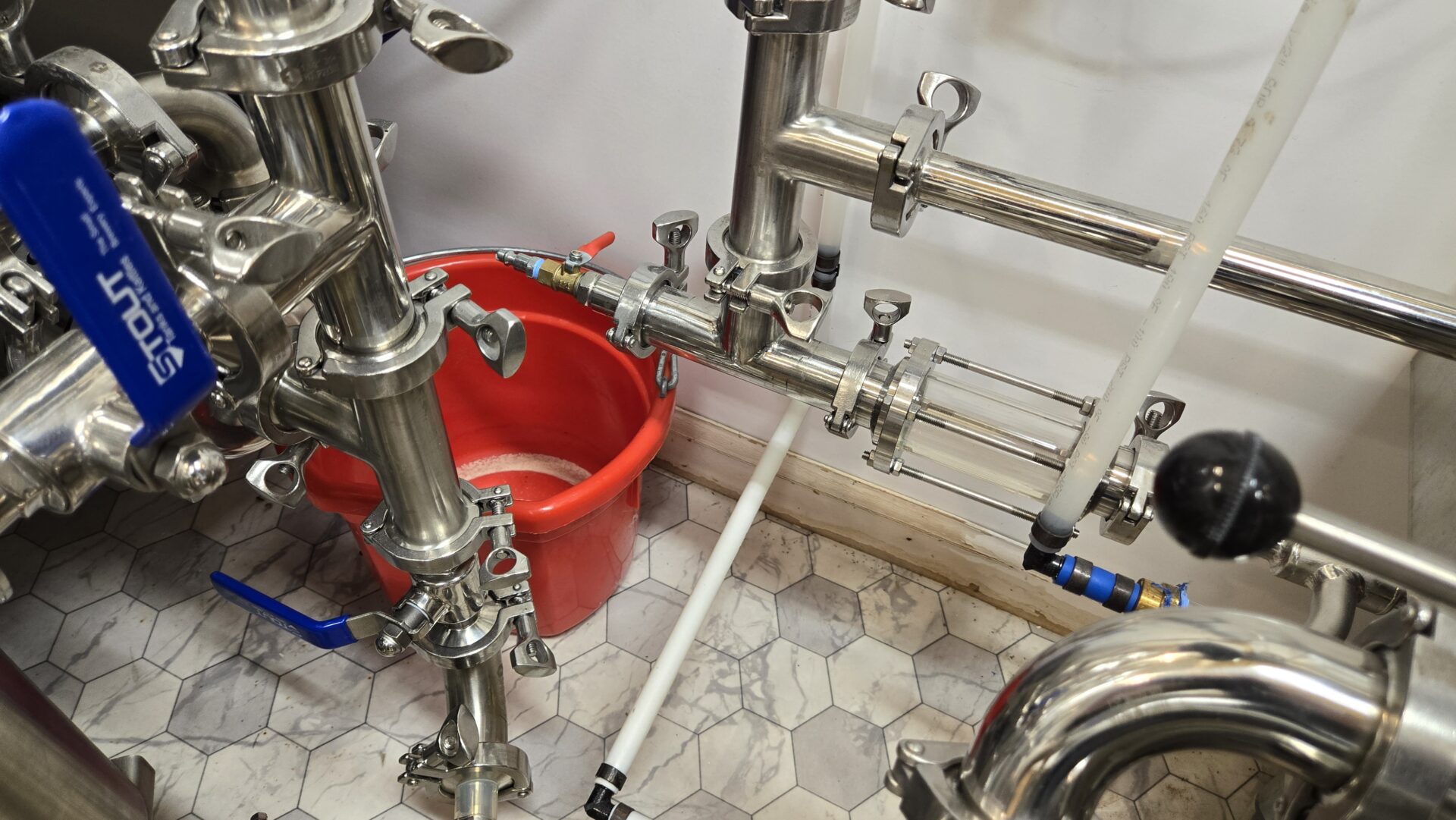

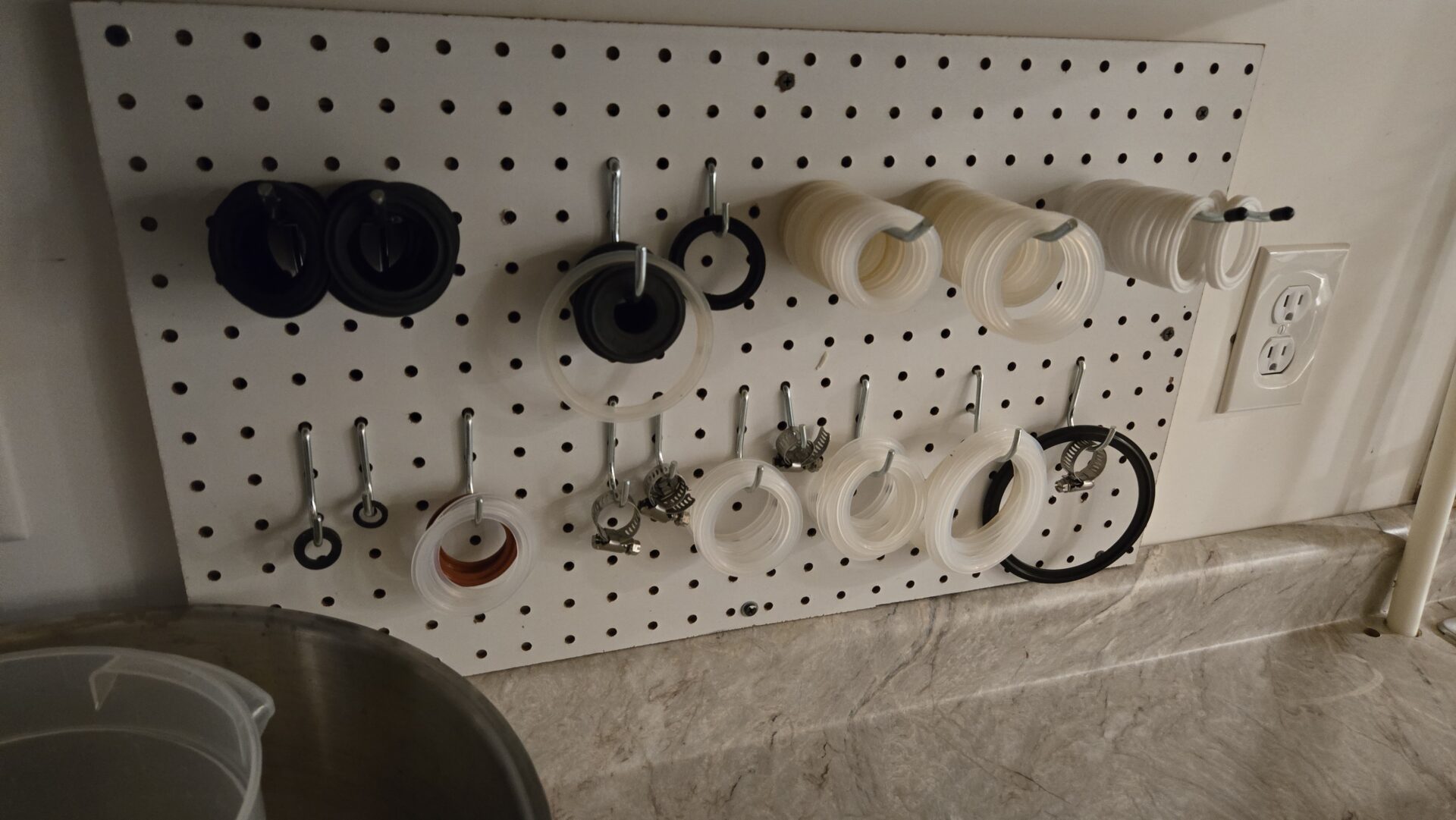

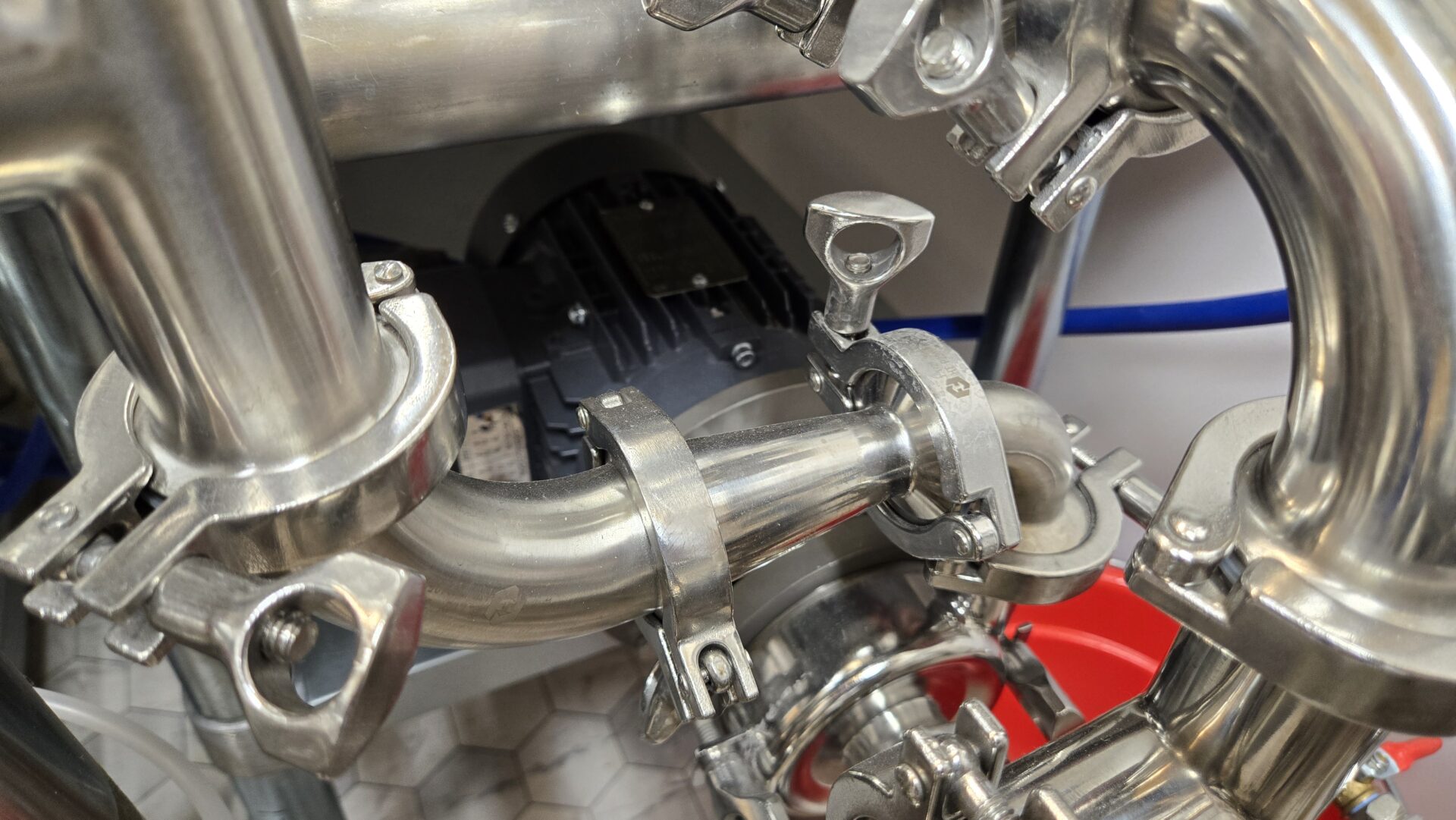

All plumbing is 1 1/2″ Stainless Steel tri clamp fittings. All fittings, gaskets, and tubing included.

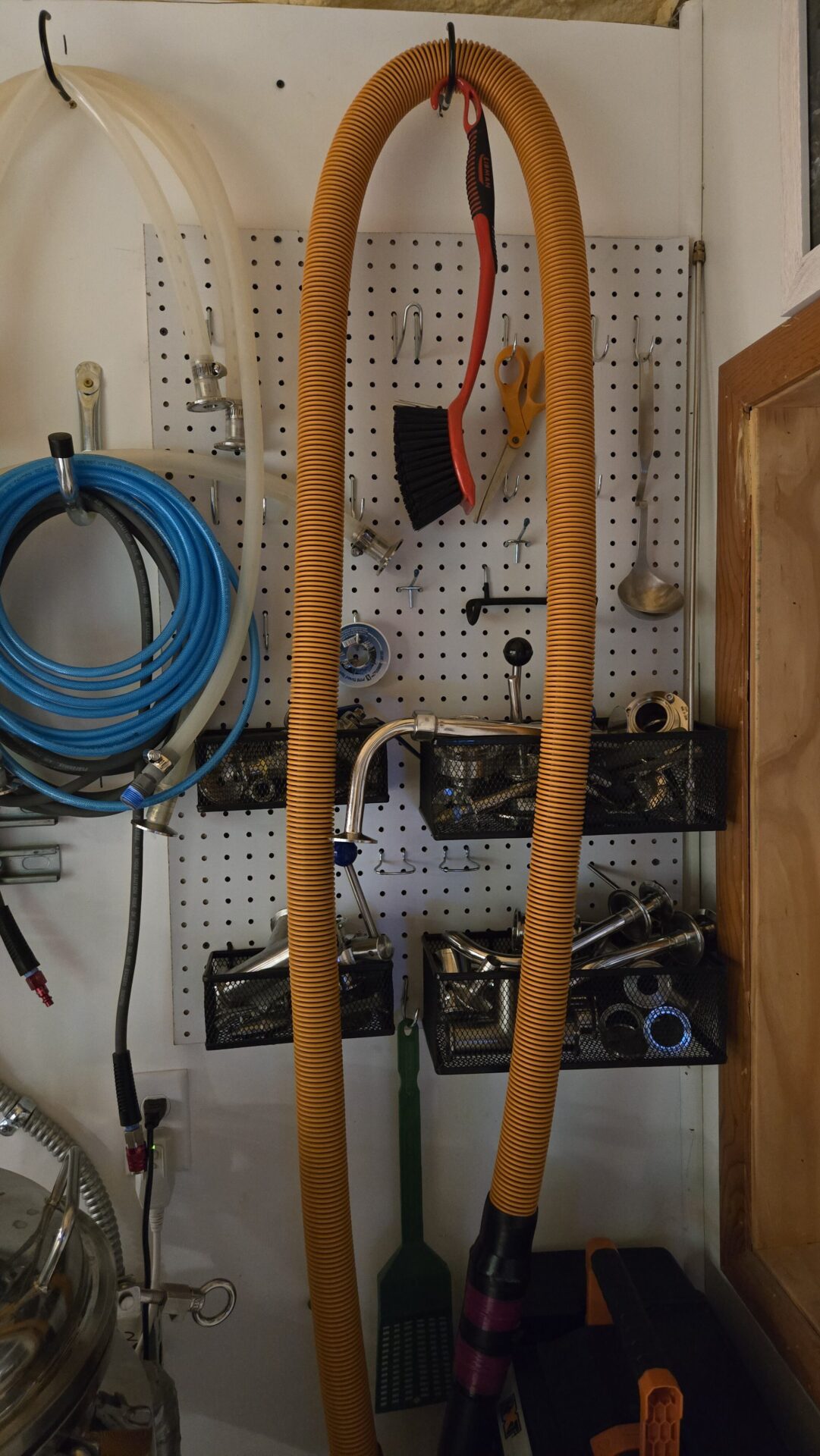

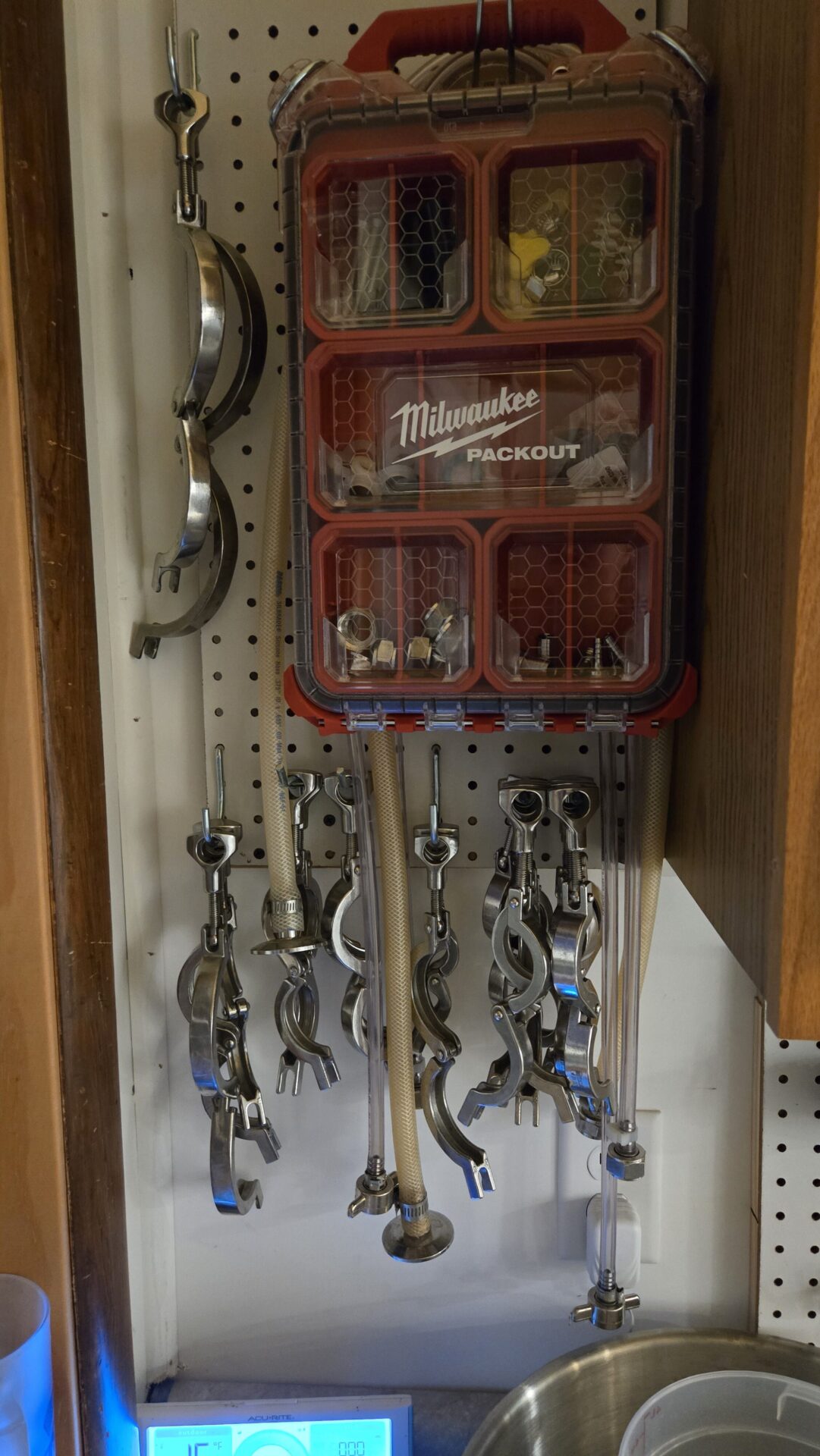

I am also including a variety of fittings, hoses, stir plate, and yeast starting equipment.

Please reach out with any questions, emails will be responded to quickly. Phone calls may be placed but I get so many spam calls I may not answer, leave a message please. Serious inquires only, DO NOT CONTACT ME IF YOU DON’T HAVE THE FINANCIAL INVESTMENT REQUIRED. LOW BALL OFFERS WONT BE ACCEPTED. I have too much time and money into this and I would really like someone to enjoy the effort put into this system for years to come. Thank you.
