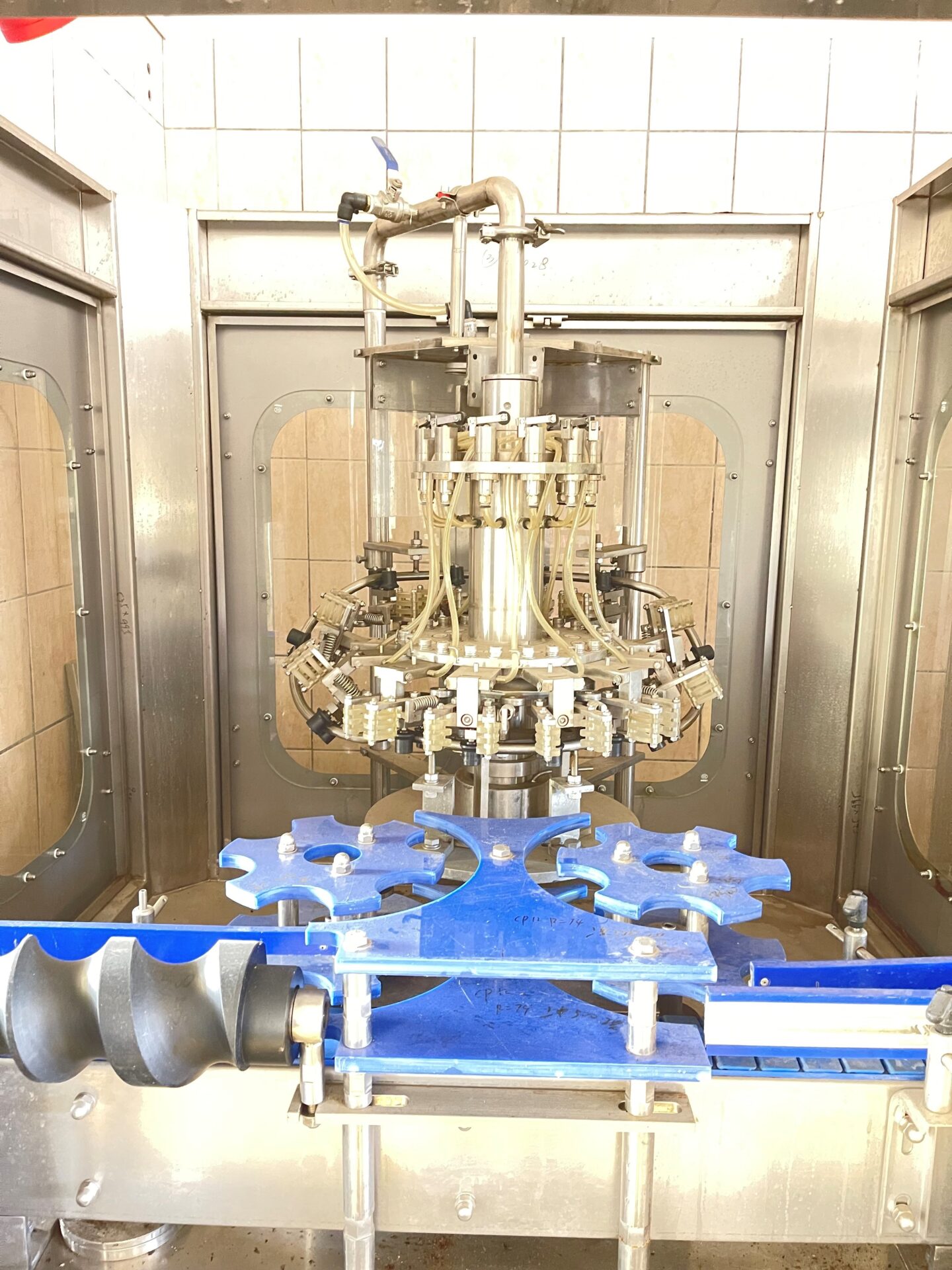

1.Glass bottle rinsing machine

ZPC-12 Auto-bottle rinsing machine absorb in high technology from aboard, by adopting

gyration method on rinsing device, it can automatically complete working process from bettle

entry, bettle rinsing, water removing to sanitized bettle out. lt is most advanced and suitable

device to rinse glass bottles.

Technical parameters:

(1 ). Rinslng Capacity

(2). Fitting Bottle Size

(3). Running Methed

(4). Number of Rinsing Position

(5). Power of the Machine

(6). Overall Weight ef the Machine

(7). Overall Dimensions

600-800bottles I hour @500ml

Height: 150-300mm Diameter: 50-90mm

ContinLtous Gyration Running

12 Pieces

1.5 kw

700kg

120Qx 12QOx 1800mm

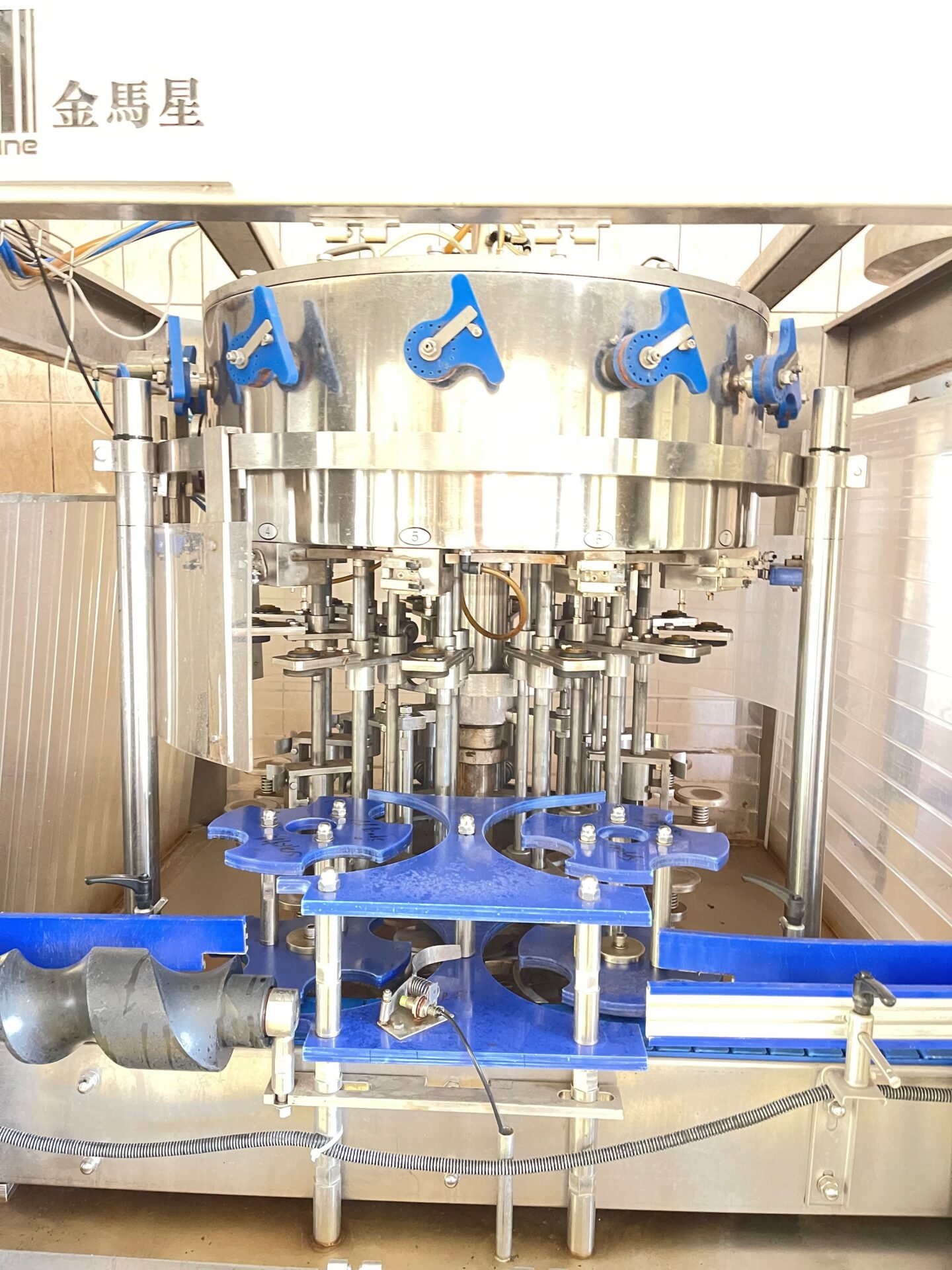

2.Automatic Filling Machine (two tlmes vacuum system)

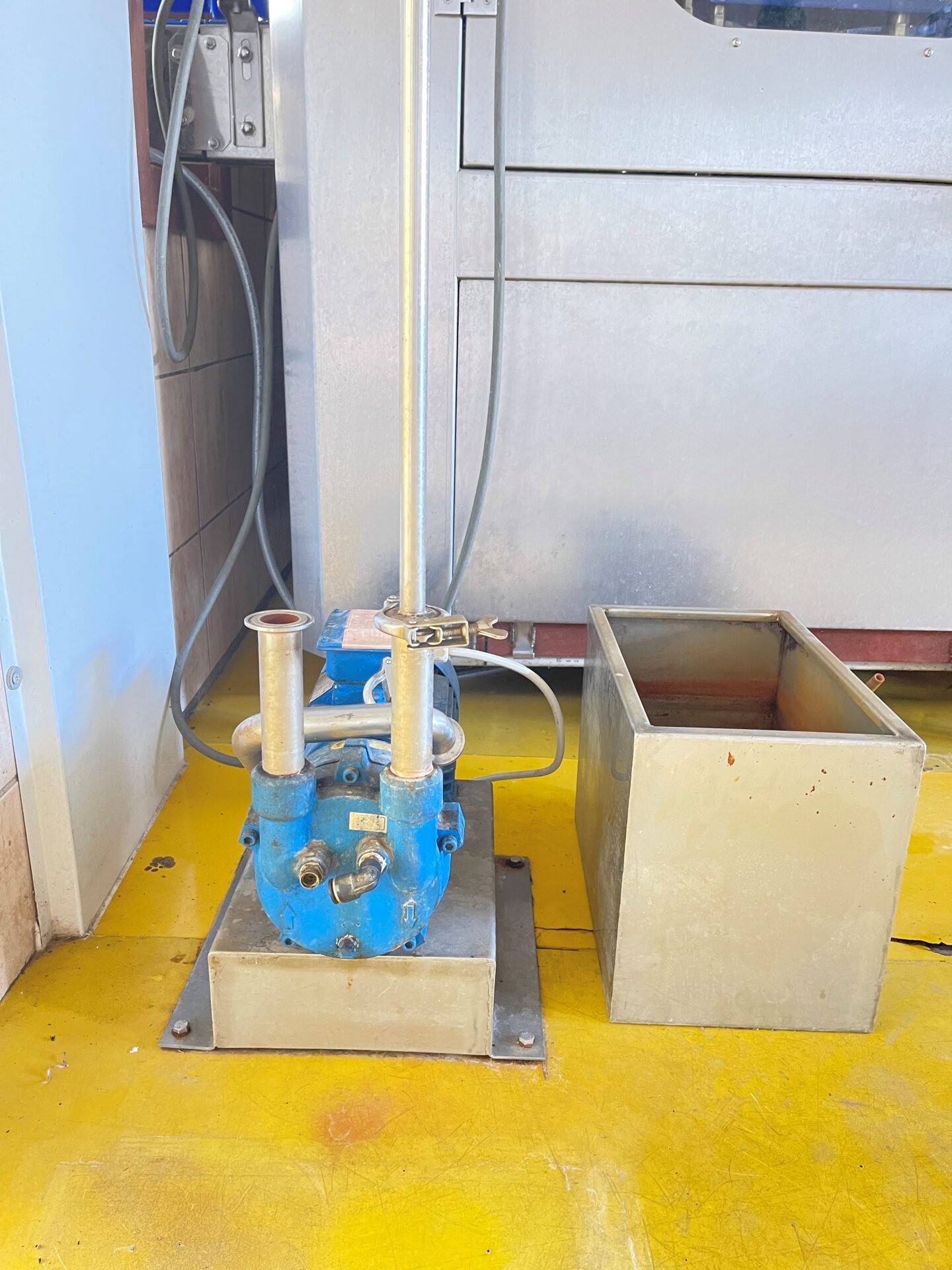

The filling machine is with the two times vacuum system ,the valve is specially designed for the

beer .The handle of the machine can be freely and conveniently turned to adjust the machine

to fill various types of bottles, it works automatically and the speed can be adjusted to make the

operations of moving bettle forward steadily and reliably

Technical parametera:

(1). Range ef bottle volume 250-1000ml glass bettles

(2). Range of bettle size a. Diameter of bettle 50-90mm

b. Height of bettle 200-330mm

Capacity: 600-SOObottles I hour

Power of the main motor 1 .5Kw

Overall dimension 1400X1400X1940mm

Total weight: 700Kg

The machine is composed water tank, float ball, shaft, filling valve, Pneumatic component,

electric machine.

lncluding:

Water pump: southem pump

Pneumatic component: AUTONICS BRAND

Programmed controller: MITSUBISHI BRAND

Touch machine: THINEDA BRAND

Photo electricity: KOREA

3.Automatic Crown capping machine

(1 ). Capacity 1500botlles/hour

(2). Running method continuous gyration

(3). Specification of bottle height of bottle 140-330mm

(4). Specification of bottle lid diameter of bottle lid et 20-ct 30mm

(5). Speed reducer m=3 i=41: 1

(6). Total weight of machine 800kg

(7). Over dimension 800x800x2200mm
