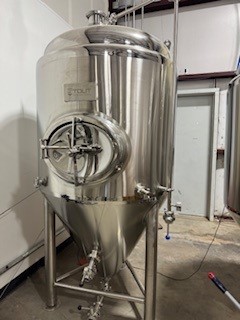

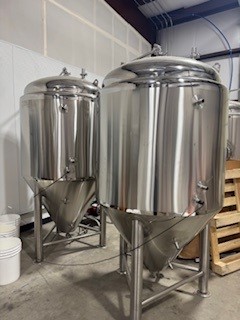

·        2- CF7BBL-JKT. (8640) 7 Bbl Jacketed Conical Fermenter – SHADOWLESS Side Manway. Two zone jacketing is in cone and on side wall. Includes racking arm, CIP arm and spray ball, sample valve, racking arm, 2 butterfly valves, adjustable feet. Rated to 2BAR (29 psi). 280 gal. total capacity. 95-in. tall to top of CIP arm. Constructed of 304 stainless steel, tank material thickness is 3mm, jacket and outer shell thickness is 2mm. Cone has 60 degree interior angle. Includes 4-in. TC port on top for dry hopping. Standard dimensions: 43.5-in. diameter x 95-in. H. ·

2- CF7BBL-JKT-90H. (8642) 7 Bbl Jacketed Conical Fermenter – SHADOWLESS Side Manway. Two zone jacketing is in cone and on side wall. Includes racking arm, CIP arm and spray ball, sample valve, racking arm, 2 butterfly valves, adjustable feet. Rated to 2BAR (29 psi). 271 gal. total capacity. 90-in. tall to top of CIP arm. Constructed of 304 stainless steel, tank material thickness is 3mm, jacket and outer shell thickness is 2mm. Cone has 70 degree interior angle. Includes 4-in. TC port on top for dry hopping. Standard dimensions: 43.5-in. diameter x 90-in. H.
