60,000 BTU/hr, 5 Ton, 3-Phase, 230V – Used but good condition, from brewery closure

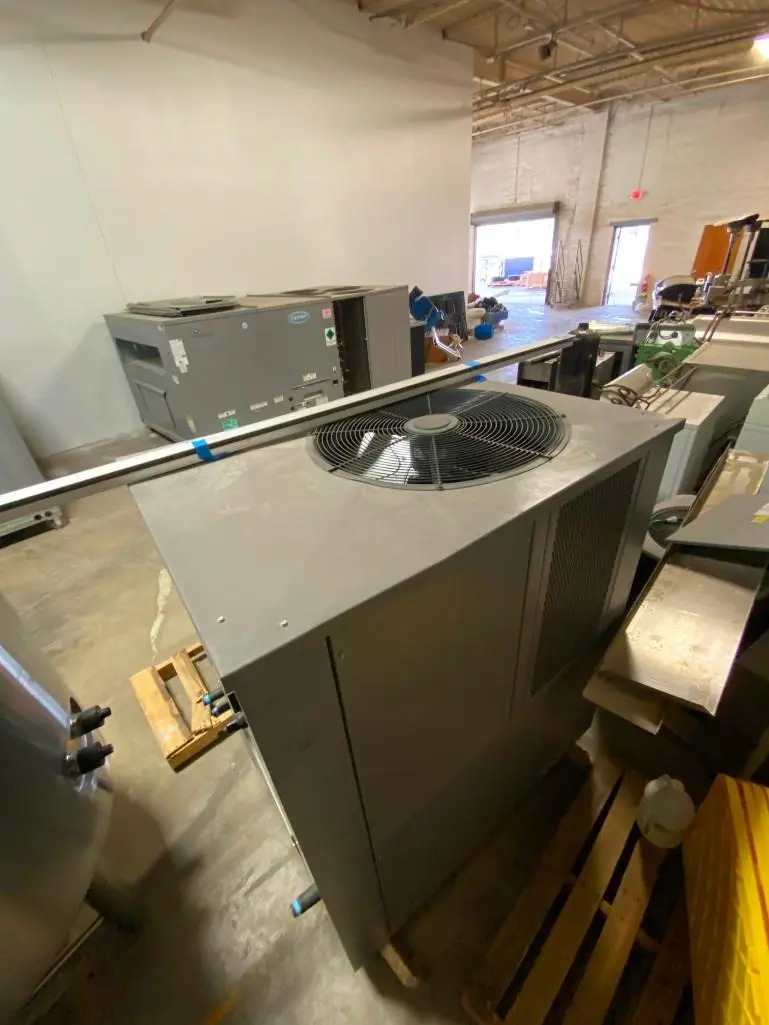

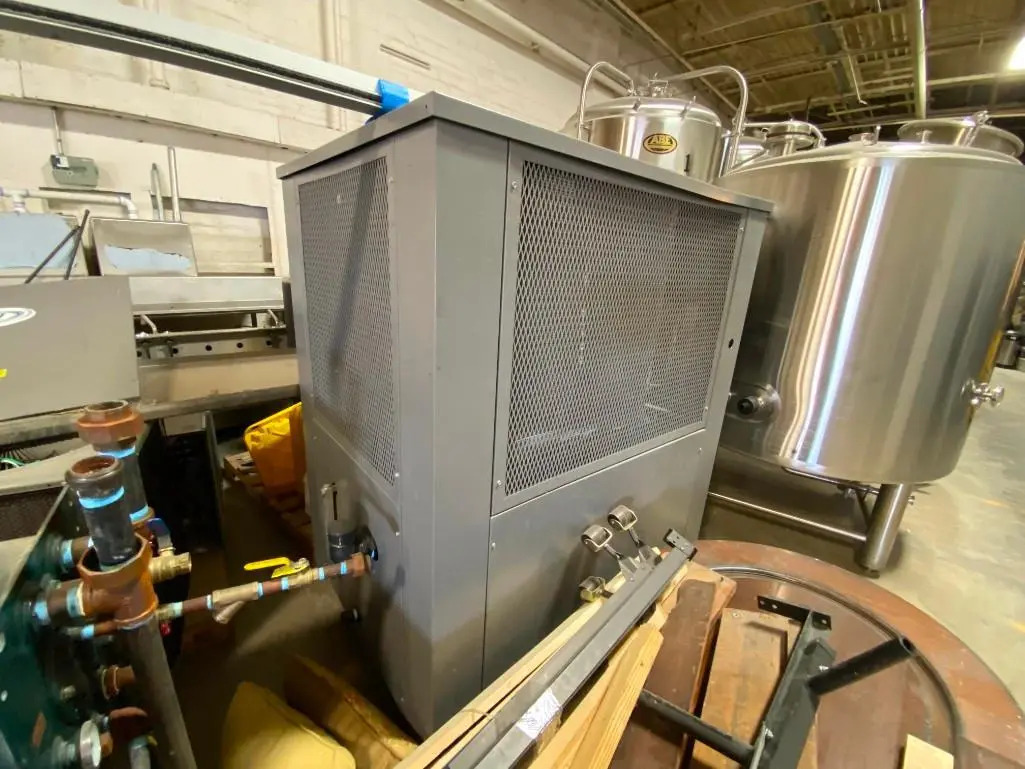

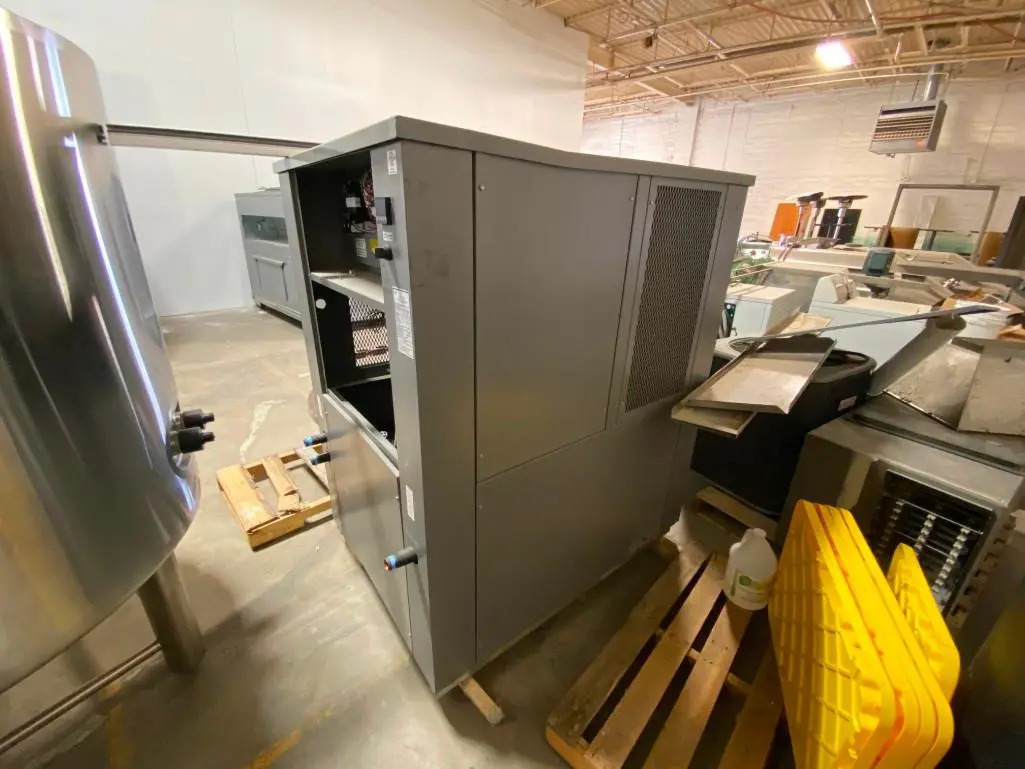

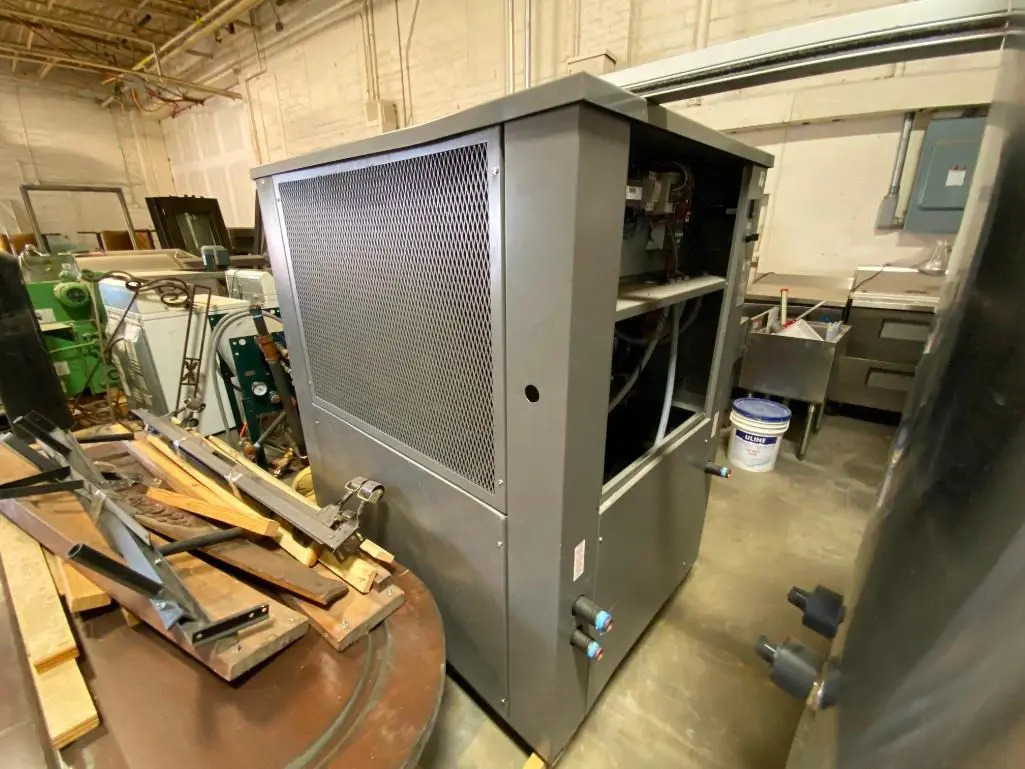

This is a high-performance industrial process chiller in good used condition, ideal for applications requiring reliable temperature control.

Specifications:

Cooling Capacity: 60,000 BTU/hr (±5% at 50°F LCWT / 95°F ambient)
Compressor: Hermetic scroll, refrigerant R410A
Condenser Fan: 1 fan, 3,868 CFM airflow
Condenser Coil: Copper tube / aluminum fin
Evaporator: Stainless steel / copper brazed
Heat Exchanger: Stainless steel / copper brazed
Fluid Connections: 1” MNPT inlet/outlet
Pump: 1.0 HP, 30 GPM @ 30 PSI
Tank: 25-gallon, 304 stainless steel with lid
Dimensions: 50.5” L x 38.5” W x 57” H
Weight: Approx. 571 lbs

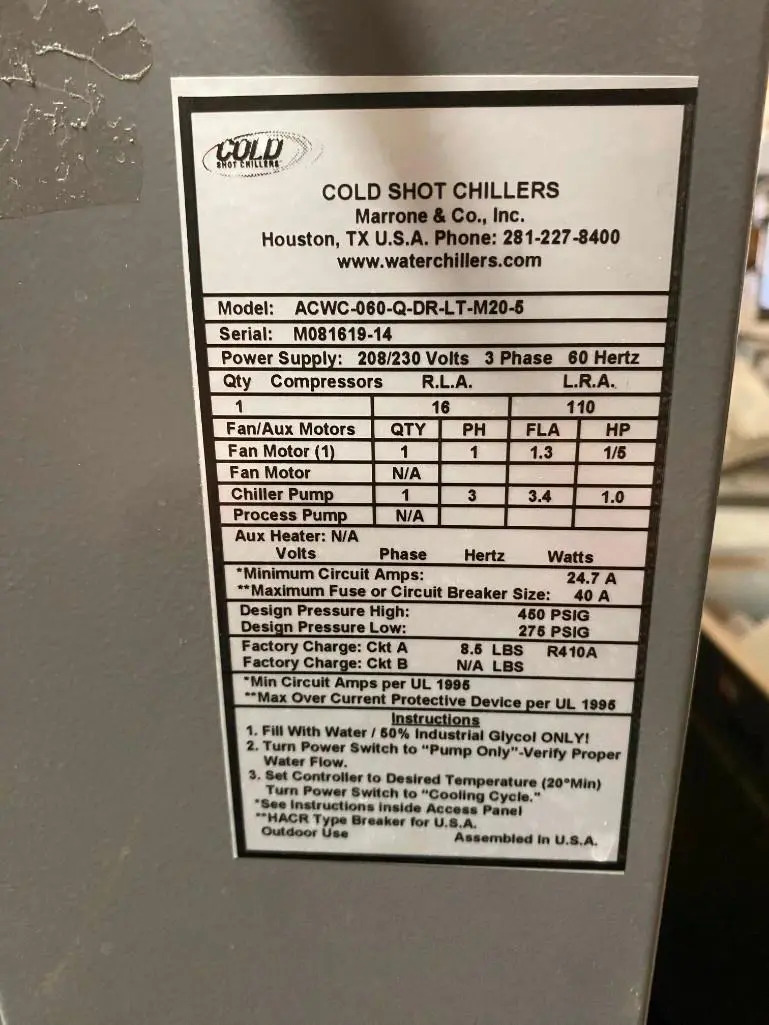

Electrical:

Voltage: 230V
Phase: 3
Frequency: 60 Hz
Compressor RLA / LRA: 16A / 110A
Fan FLA: 1.3A
Pump FLA: 3.4A
MCA: 24.7A
MOCP: 40A

Standard Features:

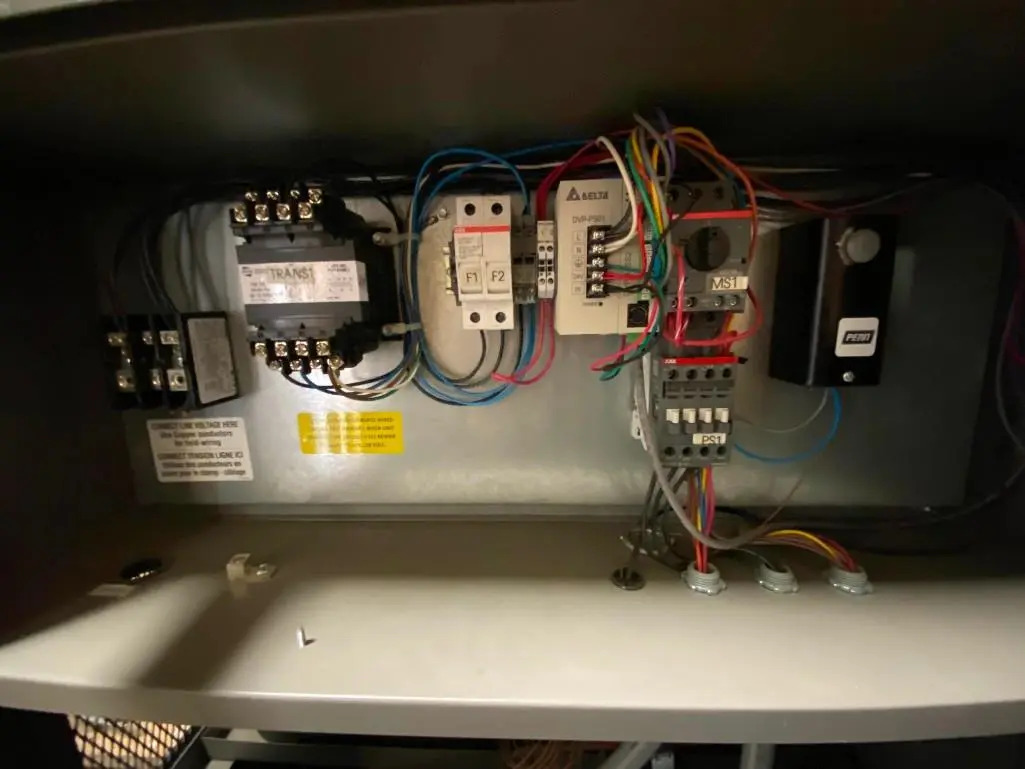

Electronic temperature controller with constant set point and process temperature readout

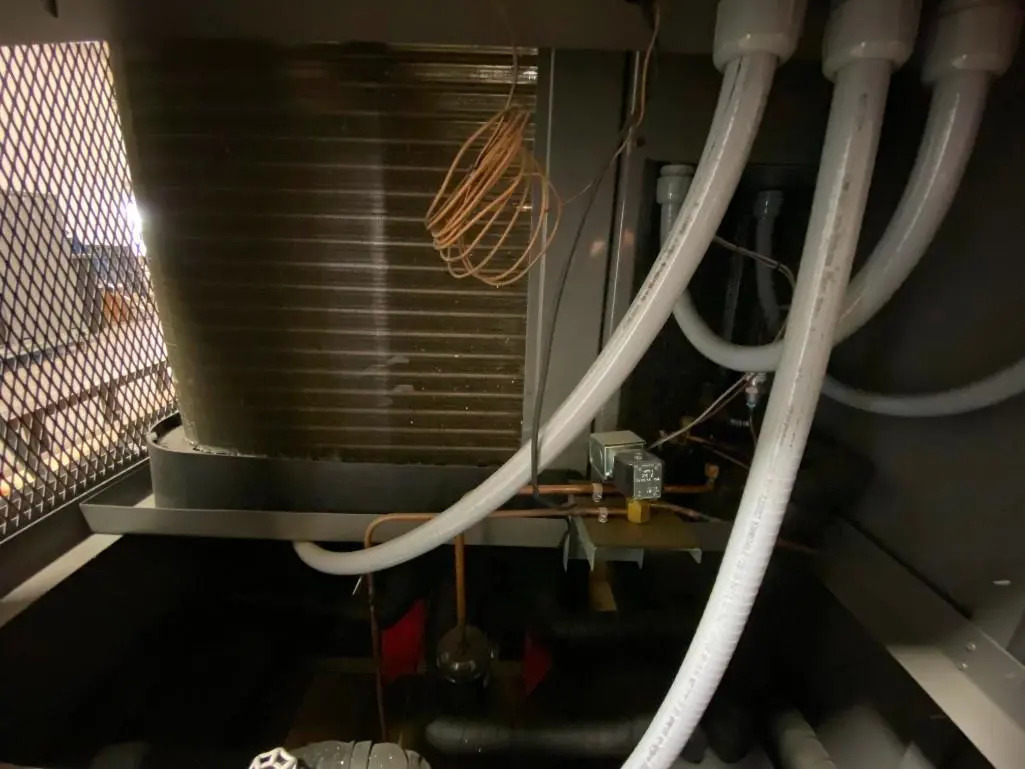

Efficient scroll compressor, sight glass, moisture indicators, filter drier, balanced port expansion valve, pump down valves, fan cycling controls
Stainless steel centrifugal pump and insulated tank with fill port, lid, and sight glass
Comprehensive safety controls including high/low refrigerant pressure, fluid temperature, low water flow, freeze protection, overload protection for compressor, fan, and pump motors
Rugged construction with powder-coated steel frame and cabinet, copper piping connections
